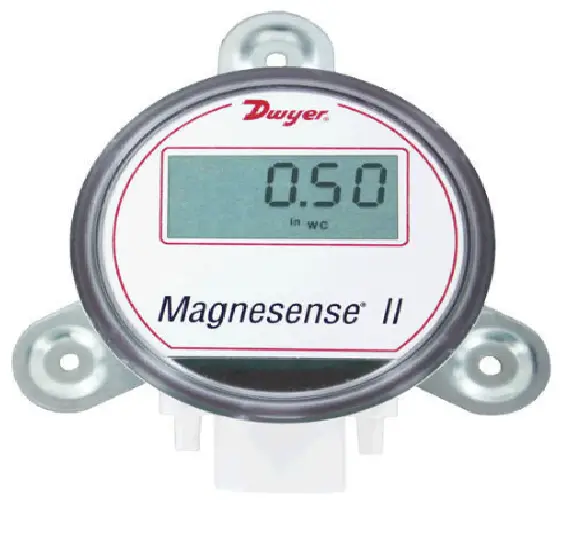

Dwyer P-MSX-C-QS Series MSX and MSX Pro Communicating Magnesense Pressure Transmitter
QUICK START GUIDE FOR COMMUNICATING MODELS
- Scan QR code with smart device to open the product web page for full communicating instruction manual.
- Mount transmitter with pressure ports facing down. Do not overtighten mounting screws.
- Attach wires following diagram on reverse side.
COMMUNICATING WIRING INFORMATION

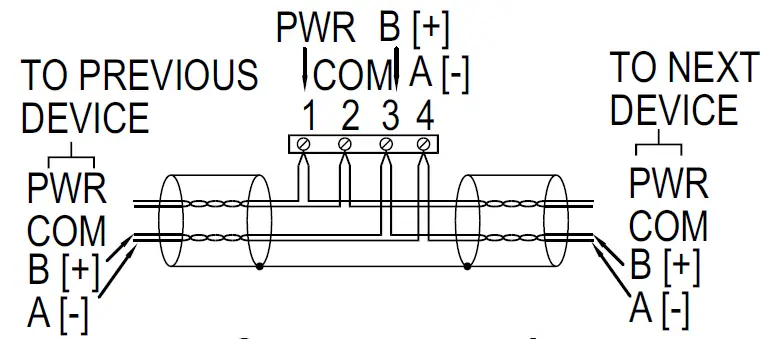

Common supply

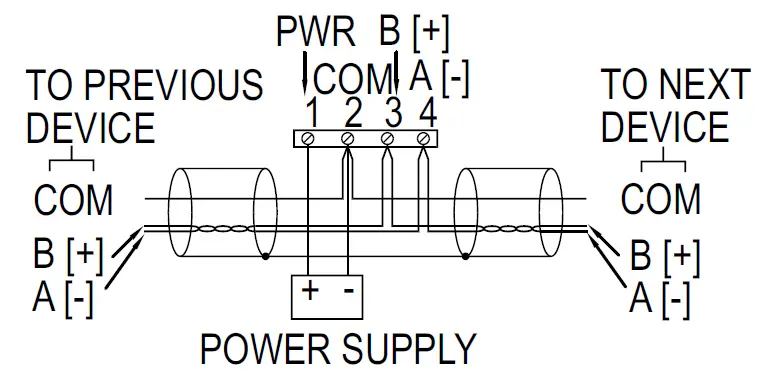

Local supply
Printed in U.S.A. 3/22
FR# 444649-00 ©Copyright 2022 Dwyer Instruments, Inc.
