Bocci Sld-dim-cb Dimming Module Instructions

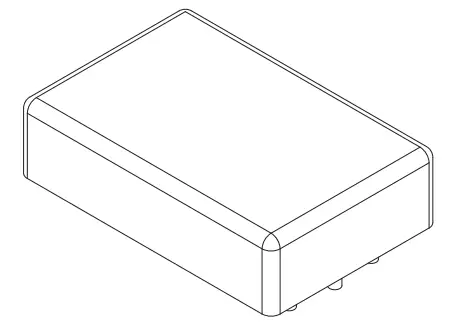

0-10V Dimming Module

SLD-DIM1B
POWER 120
INPUT 8 to 30V DC
VOLTAGE
CURRENT 5000mA max.
DIMMING: 0 -10V DC
DIMMING:- 10K/N~100K/N Ohms resistance
TYPE:- 1~10V DC Voltage – 10V PWM Signal
NOTES: IP 65
DIMENSION: 37mm (1.5”) x 56mm (2.2”) x 15mm (0.6”)
DESIGNATION:

Dimming Module PRODUCT SPECIFICATION

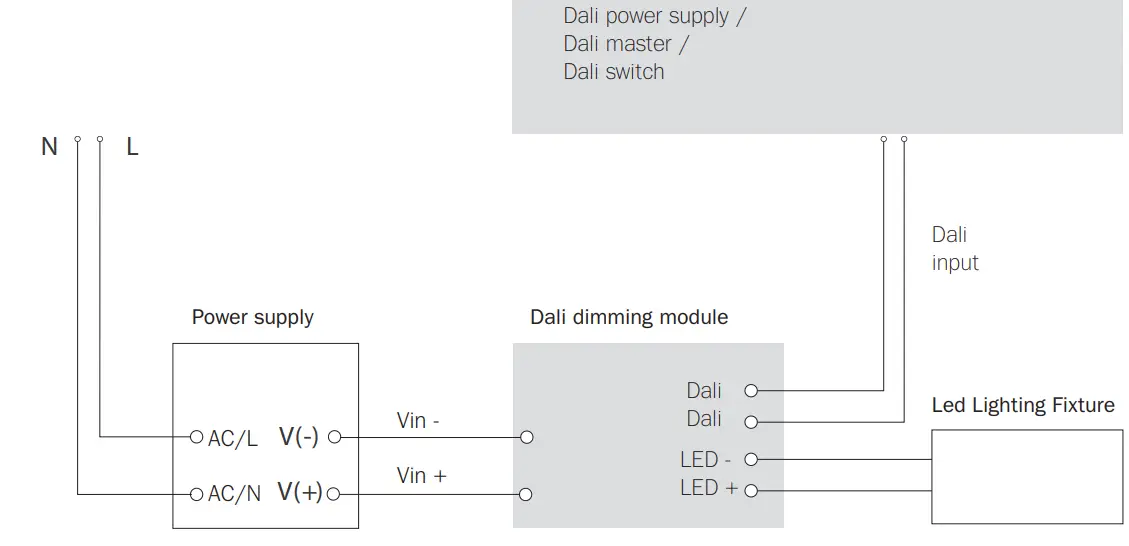

DALI Dimming Module

SLD-DIM-DALI

INPUT VOLTAGE RANGE;8-48V
OUTPUT; Vin-0.2V
VOLTAGE RANGE
OUTPUT 5A max.
CURRENT
OUTPUT POWER 240W max.
DIMENSION: 40mm (1.57”) x 61mm (2.4”) x 21mm (0.83”)
DESIGNATION:

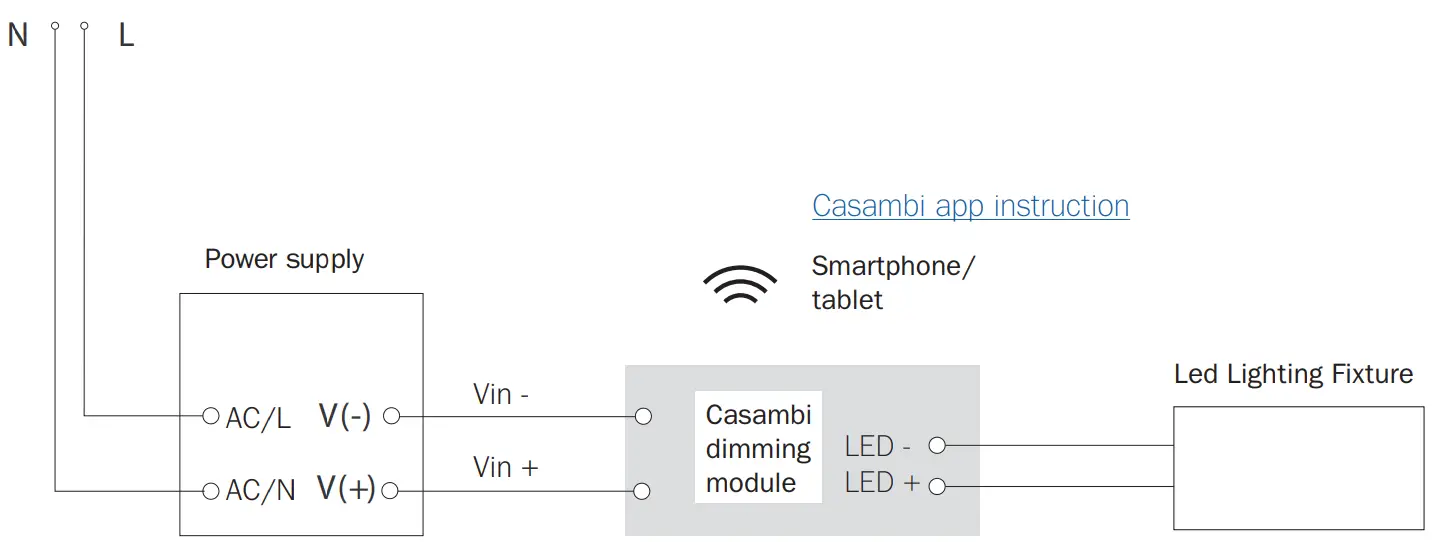

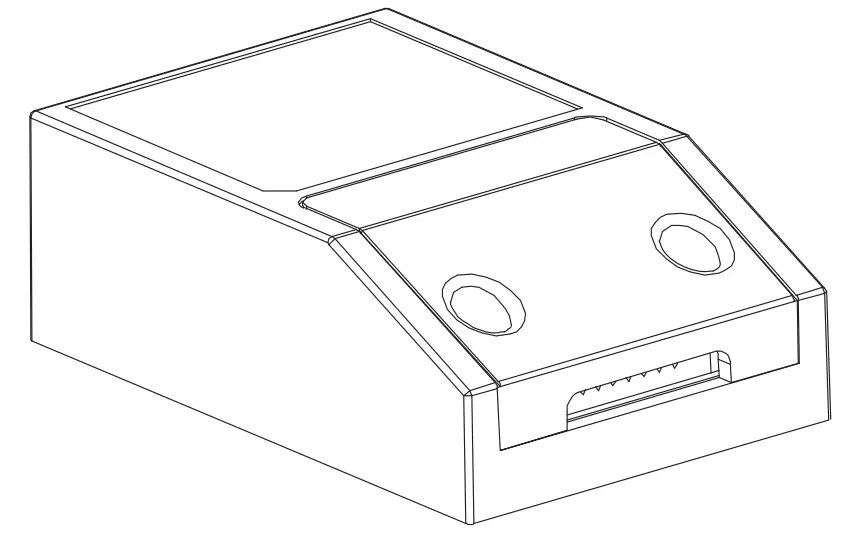

Casambi Dimming Module

SLD-DIM-CB

INPUT VOLTAGE RANGE; 8-48V
OUTPUT; Vin-0.3V
VOLTAGE RANGE
OUTPUT; 5A max.
CURRENT
OUTPUT POWER 240W max.
DIMENSION: 40mm (1.57”) x 61mm (2.4”) x 21mm (0.83”)
DESIGNATION:
