Zigbee Box Relay Dali
Instruction Manual

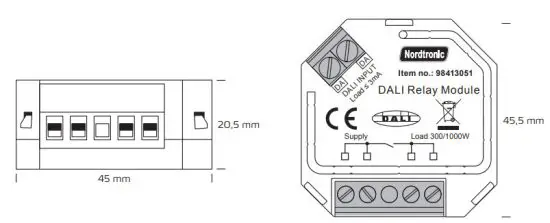

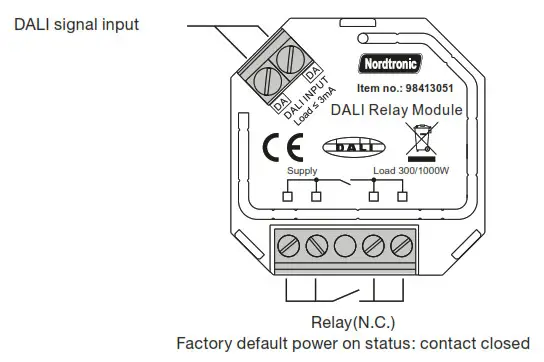

Box relayDali
| Input | ||
| DALI control input | DALI consumption | Number of DALI addresses |
| 1 | < 3mA | 1 |
| Output, relay | |||
| Switching voltage AC | Switching voltage DC | Current | Type of contact |
| Max. 250V | Max. 30V | Resistive load: max. 4.3A Capacitive load: max. 1.3A Inductive load: max. 4.3A | 1 changeover |
| Compatible Load Types | ||
| Load symbol | Load type | Maximum load |
 | Resistive loads Conventional incandescent and halogen light sources | 1000W @ 230VAC 500W @ 110VAC |
 | Capacitive loads Fluorescent tube lamp (compact / with electronic ballast), electronic transformer, LED | 300W @ 230VAC 150W @ 110VAC |
| Inductive loads Ferromagnetic transformers | 1000W @ 230VAC 500W @ 110VAC |
Wiring diagram

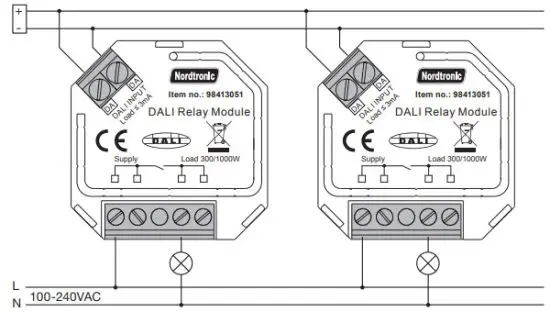

Switching of 100-240VAC load
DALI PS

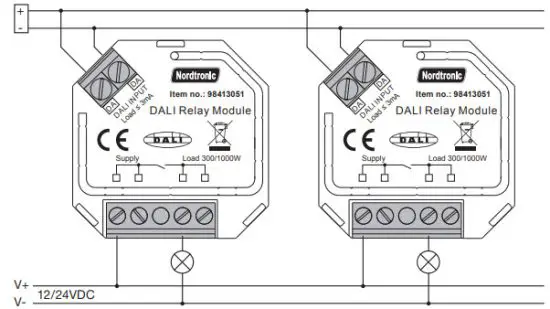

Switching of 12/24VDC load
DALI PS
Operation
Setting DALI Address
1 DALI address can be assigned by the DALI Master controller automatically, please refer to user manuals of compatible DALI Masters for specific operations.
