REMOTE LCD ANNUNCIATOR RAM-3318-LCD
Description
The RAM-3318-LCD Remote Annunciator is used as a component of an FX-3318 Fire Alarm System. It provides an exact mimic of the FX-3318 display at a remote location.
The display is four lines, 20 characters back-lit alphanumeric LCD. It displays information regarding the panel, its circuits, and devices. An on-screen cursor is controlled by the cursor buttons for menu selection and control.
Features
- New durable membrane tactile switches
- 4 line, 20 character back-lit alphanumeric LCD display.
- Common feature LEDs and push buttons.
- Alphanumeric keypad for the LCD.
- Each RAM-3318-LCD has its own address.
Addresses available are 1 to 7 inclusive. - Cursor buttons for menu selection and control.

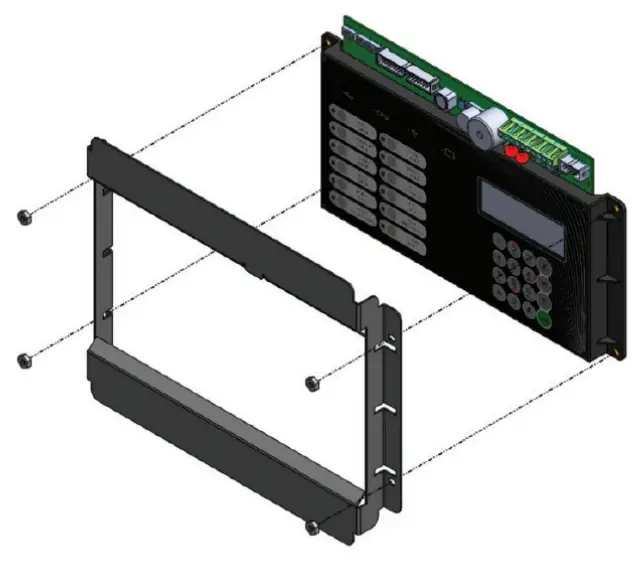

- Mounted using one of the BB-1000 or series semi-flush enclosures.
Some enclosures require the installation of the CH-1074B, included with the RAM-3318-LCD
Electrical Ratings
| Power Limited Nominal Voltage: 24 VDC | |
| Current Consumption: | |
| Standby: | 70 mA |
| Alarm: | 100 mA |
Ordering Information
| Model | Description |
| RAM-3318-LCD | Remote LCD Annunciator |
Canada
25 Interchange Way Vaughan, ON L4K 5W3
Telephone: (905) 660-4655 | Fax: (905) 660-4113
U.S.A.
4575 Witmer Industrial Estates Niagara Falls, NY 14305
Toll Free: (888) 660-4655 | Fax Toll Free: (888) 660-4113 www.mircom.com
THIS INFORMATION IS FOR MARKETING PURPOSES ONLY AND NOT INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY.
For complete and accurate technical information relating to performance, installation, testing and certification, refer to technical literature. This document contains intellectual property of Mircom. The information is subject to change by Mircom without notice. Mircom does not represent or warrant correctness or completeness.
CATALOG NUMBER 5691 Rev. 1
