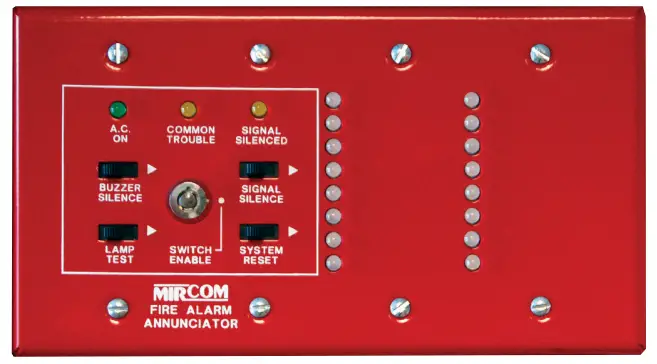

REMOTE MULTIPLEX ANNUNCIATOR PANEL
RAM-216R
Description
RAM-216R Remote LED Annunciator feature bi-coloured LEDs that are configurable for either Alarm (red) or Supervisory (amber).
The LED annunciators have indicators for A.C. On, Common Trouble and Signal Silence and control switches for System Reset, Signal Silence, Lamp Test and Buzzer Silence. The RAM-216R is equipped with a key switch that allows for enabling and disabling of the Common Control functions. Both models are available in a red or white finish and mounts in a 4-gang electrical box.
Features
- 16-Circuit Annunciator
- Bi-Colour LED
- Mounts into standard four-gang electrical box.
- For use with Mircom’s FA-200, FA-300, FR-320, FX-350, FA-1000 and FX-2000

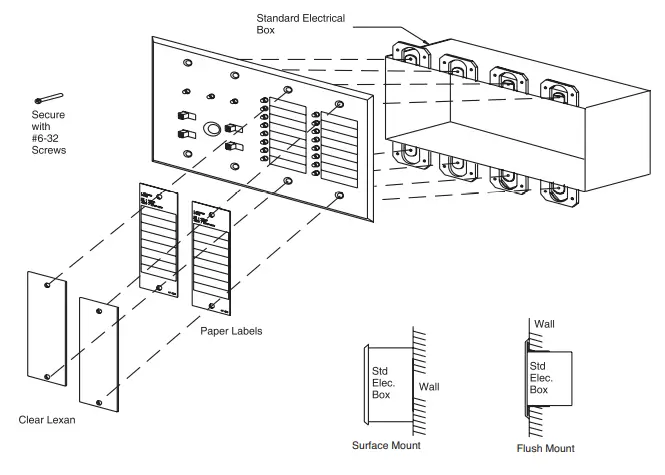

Installation Diagram
Power Consumption
| Nominal Voltage | 24 VDC |
| Stand by | 35 mA |
| Maximum Current | 140 mA |
Ordering Information
| Model | Description |
| RAM-216R | Remote Multiplex Annunciator Panel |
Canada
25 Interchange Way Vaughan, ON L4K 5W3
Telephone: (905) 660-4655 | Fax: (905) 660-4113
U.S.A.
4575 Witmer Industrial Estates Niagara Falls, NY 14305
Toll Free: (888) 660-4655 | Fax Toll Free: (888) 660-4113
www.mircom.com
THIS INFORMATION IS FOR MARKETING PURPOSES ONLY AND NOT INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY.
For complete and accurate technical information relating to performance, installation, testing and certification, refer to technical literature. This document contains intellectual property of Mircom. The information is subject to change by Mircom without notice. Mircom does not represent or warrant correctness or completeness.
CATALOG NUMBER 5692
Rev. 0
