NOTIFIER RZA-4X Remote Annunciator
Remote Annunciator unciator

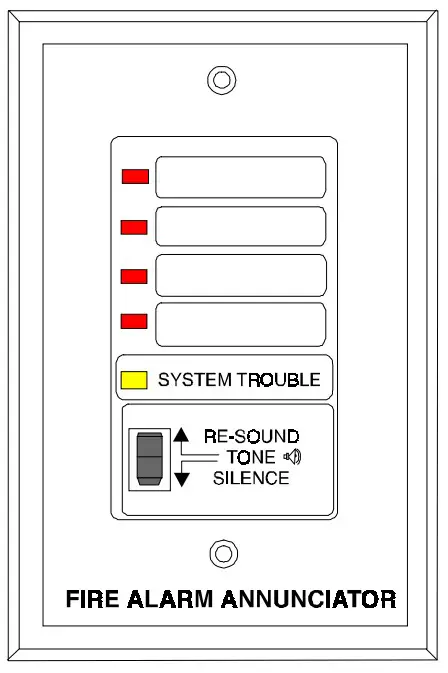

The RZA-4X Remote Annunciator mounts on a standard single-gang box, and provides LED indication of the same functions as the 4XZM Zone Relay Module. For example, with DIP 1=ON and DIP 2=OFF:
- One Zone in Alarm (red)
- Two Zones in Alarm (red)
- Releasing Circuit 1 (red)
- Releasing Circuit 2 (red)
- System Trouble (yellow)
A Local Trouble Sounder and Silence Switch are also provided. All LED wiring is supervised for open conditions. Any open condition will cause the System Trouble LED to illuminate.
Note: The RZA-4X Remote Annunciator requires the use of an LED Interface Module (see Figure 1, reverse side).

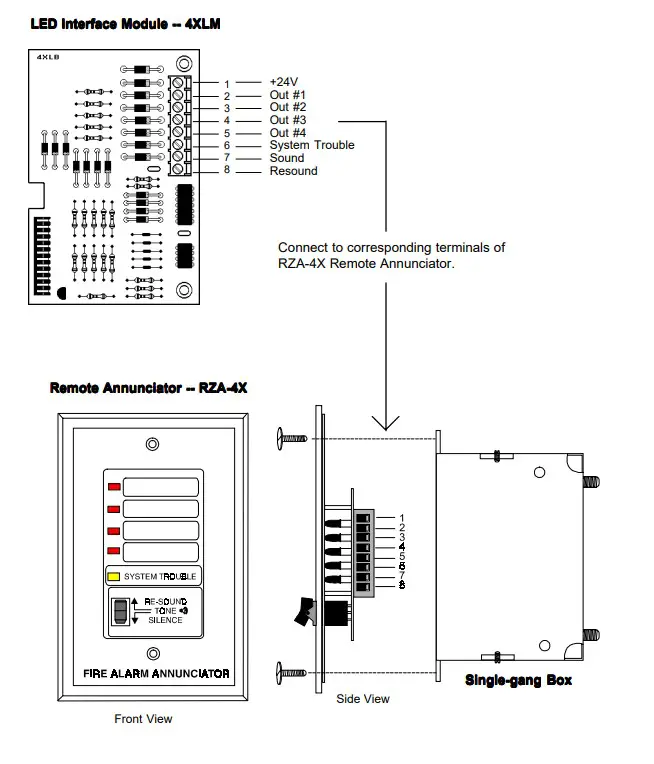

Installation of the RZA-4X with 4XLM LED Module Figure 1 – Installation of the RZA-4X with 4XLM LED Module
