VSPL3462AT HDMI Splitter
User Guide
HDMI™input→2x HDMI™output
VSPL3462AT

HDMI Splitter

VSPL3462AT
For more information see the extended manual online: ned. is/vspI3462at

Intended use

The VSPL3462AT is a splitter that splits 1 HDMI input into 2 HDMI outputs.
The product is intended for indoor use only.
The product is not intended for professional use.
Any modification of the product may have consequences for safety, warranty, and proper functioning.

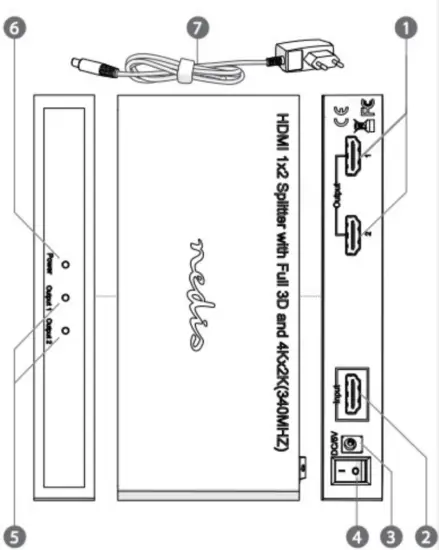

Main parts (image A)

• HDMI output
• HDMI input
• Power supply port
• Power switch
• Output indicator LED
• Power indicator LED
• Power cable

Safety instructions

WARNING

• Only use the product as described in His manual.
• Do not use a damaged product.
• Do not expose the product to direct sunlight, naked flames or heat.
• Do not expose the product to water or moisture.
• Place the product on a stable and flat surface.
• Do not drop the product and avoid bumping.
• Do not open the product.
• Keep the product out of reach from children.

Connecting the splitter

Make sure all the devices you want to connect have been switched off.

1. Plug an HDMI cable (not included) from your source device into A 2.
2. Plug up to 2 HDMI cables (not included) from your displays into A 1.
3. Plug A 7 into A 3.
4. Plug the other end of A 7 into a power outlet.

Using the splitter

1. Press A 4 to switch on the product. A 5 6 lights up.
2. Presse A 4 to switch off the product.

Specification

http://ned.is/VSPL3462ATNedis BV
De Tweeling 28,5215 MC’s-Hertogenboch- The Netherlands
