5 GHz 4K

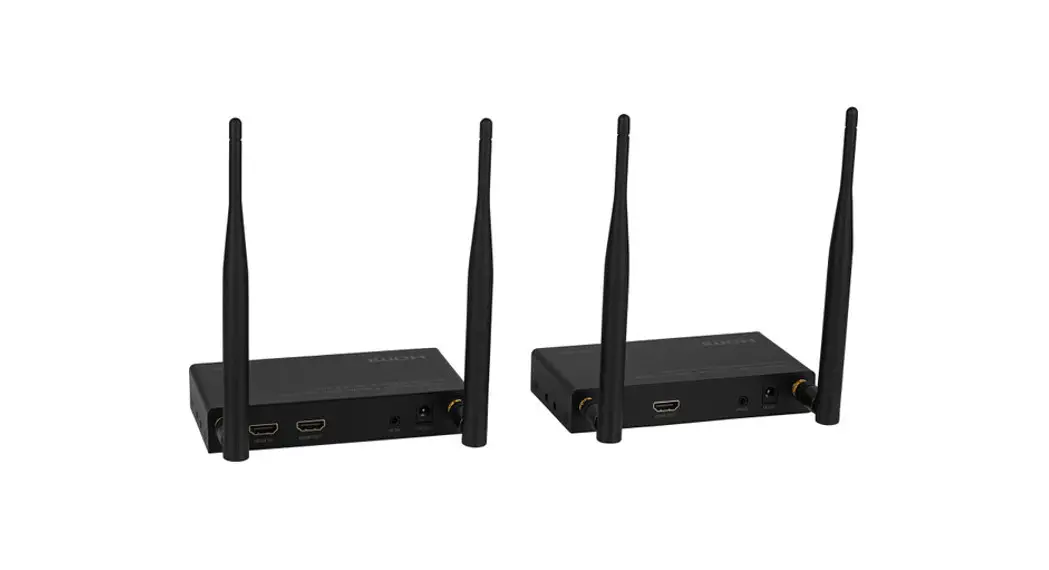

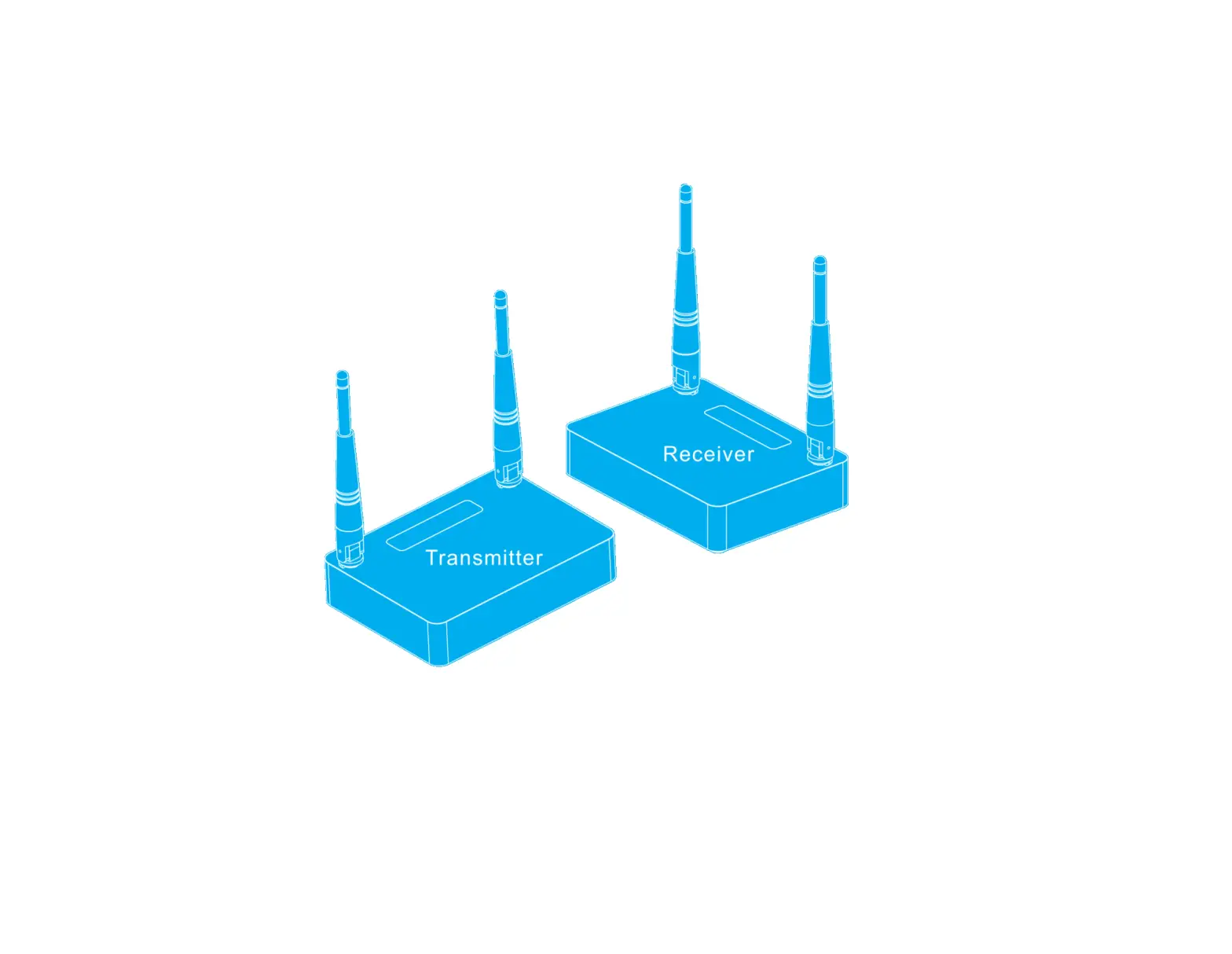

Wireless HDMI Extender Transmitter Receiver System
User Guide

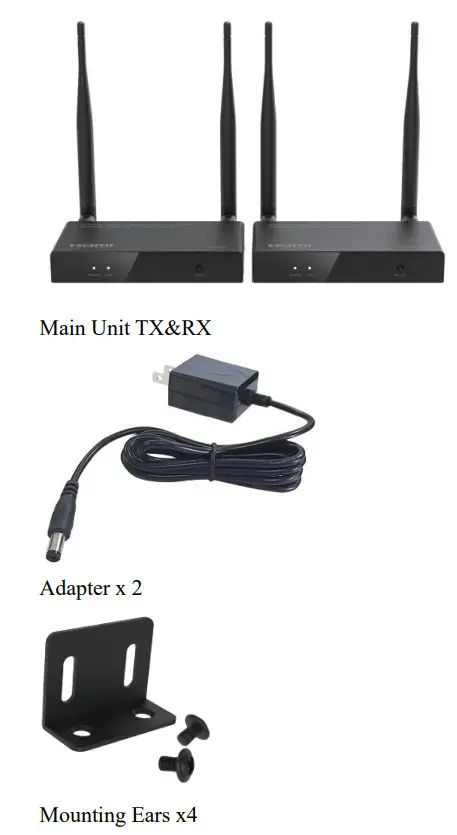

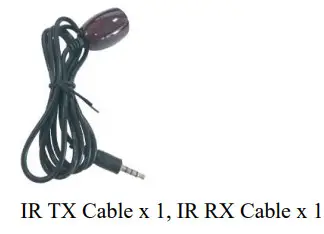

What’s included

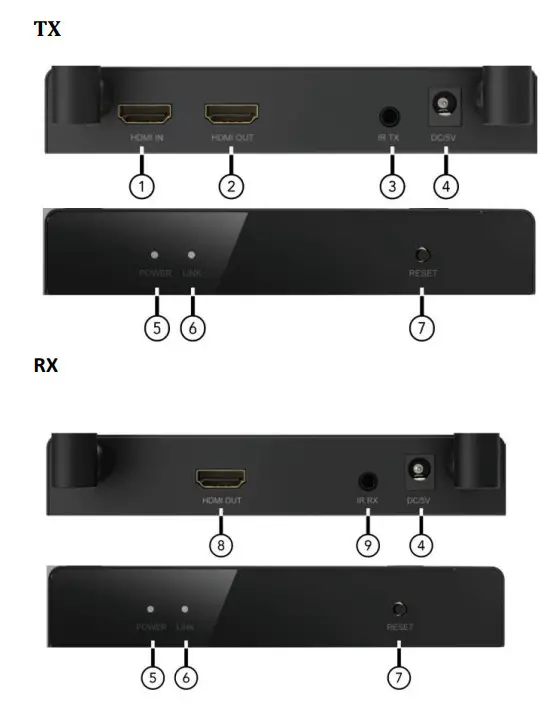

Ports and Interfaces
- HDMI IN: Connect to Input Sources via HDMI Male Input Port
- HDMI OUT: Connect to local Output display
- IR OUT: IR Signal Output Port
- DC 5V: DC 5V In
- Power: Power LED Indicator
- Link
Sender：
No Connection: Flash slowly
Get Connection: flash quickly
Receiver:
No Connection: Flash slowly
Get Connection: flash quickly - Reset: Long Press 10 Seconds to Reset, Short Click to Match the Sender and Receiver
- HDMI OUT: Connect to local Output display
- IR RX: IR Signal Input Port
Connection Diagram
Pairing Steps Guide
- Connecting the sender HDMI IN port and receiver HDMI OUT port via HDMI cable firstly.
- Power on the sender and receiver till both links’ LEDs flash slowly.
- Short-click the reset button of sender and receiver, wait for the pairing process to finish, and get pictures from the receiver.
Introduction
The Wireless HDMI™ Extender lets you extend HDMI™ audio/video signal up to 150meters (500 feet) via a 5GHz band, with very low latency. The Wireless HDMI™ Extender includes both the Transmitter and Receiver, ideal for point-to-point digital signal extension situations that require high-quality HDMI™ video and someplace that have the limitation to physical wire connection. It supports up to 2 displays to show one source content synchronously and resolutions up to 4K@30Hz. It also allows the user to control the source device from the display side via the source device’s remote controller.
Features
- Simple Plug and Play, no software installation required
- Support 5GHz single-frequency wireless A/V transmission
- Wireless extension of HDMI up to 150 meters (500 feet) with no obstruction
- Compliant with HDCP1.3
- Support highest video resolution 4K@30Hz
- Support Point-to-Point and Multicast transmission (up to 2 receivers)
- Support infrared remote to control source device from the display side
- Support uncompressed audio such as LPCM
- Support audio sampling rate up to 48 kHz
Specification
Note: Specifications are subject to change without notice.
| Input Port | HDMI x 1 |
| Output Port | HDMI x 1, LOOP OUT x 1 |
| Wireless Extensions Distance | 150m(500 feet) for 4K@30H |
| Frequency Band Range | 5GHz |
| Wireless Standard | 802.11a |
| Vertical Frequency Range | 50/60Hz |
| Compress Formats | H.264 |
| IR Frequency Range | 20-60KHz |
| Interlaced Resolutions(50&60Hz) | 480i,576i,1080i |
| Progressive Resolutions(50&60Hz) | 480p,576p,720p,1080p,4K@30Hz |
| Limited Warranty | 1 Year Parts and Labor |
| Operating Temperature | 0°C to 50°C |
| Storage Humidity | 5% to 90% RH non-condensation |
| Power Supply | DC 5V 2A |
| Power Consumption (Max) | TX: 5.5W, RX: 4W |
| Extender Unit Cert | FCC, CE, RoHS |
| Power Supply Cert | FCC, CE, RoHS |
| Dimension(LxWxH) | I 42×74.5x25mm |
| Net Weight | TX:280g, RX:280g |
| Material | Metal |
| User Manual | English Version |
Troubleshooting
| Problems | Causes | Solutions |
| No picture out after correct connection at one room | Maybe the sender and receiver have not yet matched the connection. | You need to pair the sender and receiver or pair the second receiver, please follow the pairing steps guide |
| No picture out after correct connection at different room | The distance can’t reach 150m due to the signal loss via passing through the solid walls. | When passing through a solid wall (thickness under 30cm), the signal will lose 30% of the original signal and the distance will be shorter than 120m; if passing through two or more solid walls, the distance will be shorter than 40m. Please get a shorter distance at pass through solid wall application |
| The picture out not stable or the distance is shorter than the description | Maybe there have some same band Interference sources at 5GHz affect the extender’s signal transmission. | Please place the product closer when there have the same band Interference sources or remove the Interference sources |
