INSTRUCTION MANUAL
96862, 96863 Uma FL
Uma FL 96862/96863
96862 96863
6W LED
incl.LED Board: QL7001176
220-240V~50Hz
incl.LED QL7001176
487lm Module
460lm Lamp
6W LED
220-240V~50Hz
3000K
CRI＞80
30000h
15000 ON/OFF
This product contains a light source of energy efficiency class G
https://eprel.ec.europa.eu/qr/771781
96862: 8718881083709
96863: 8718881083716

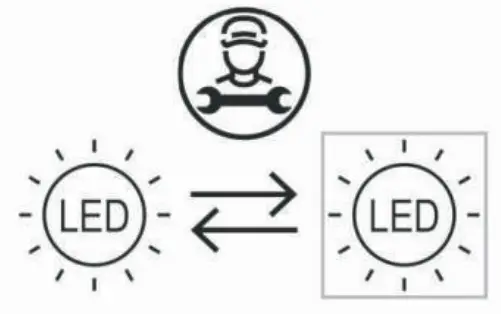

Replaceable (LED only) light source by a professional.

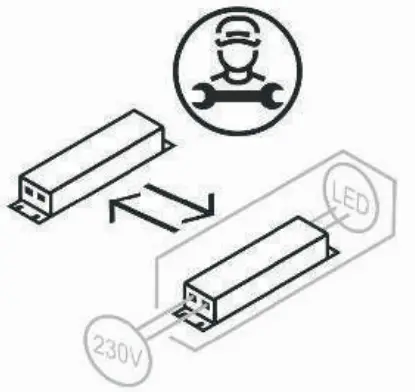

Replaceable control gear by a professional.
SAFETY INSTRUCTION
Please study the instruction manual and the below information carefully before installing or using this product. Please keep this user manual for further reference
- The luminaires may only be installed by authorized and qualified technicians according to the valid regulations for electrical installation.
- Maintenance of the luminaires is limited to their surfaces. During maintenance, no moisture can come into contact with any areas of the terminal connections or voltage control parts.
- The electrical supply must be switched off at the outset, preferably by means of a switch in the distribution box, before any installation, maintenance, or repair work is undertaken.
- Exterior lighting must not be installed during rain.
- Take account of the minimum separation distance from other objects and the room required around the fitting.
- If in any doubt, consult a professional, taking local installation requirements into account. Some countries stipulate that lighting may be installed only by registered installers.
- Clamping screws in electrical connections must be adequately tightened. This is particularly the case with 12V low-voltage conductors.
- Clean with a clean, dry cloth or brush, use no solvents or abrasives. Avoid dampness on all electrical components
- Take account of all available technical information.
- Meaning of symbols:
For indoor use only, where direct contact with water is impossible
This icon indicates the level of water-proof and dust-proof
Protection Class I: the fining must be earthed
Protection Class II: the fitting is doubled insulated and does not require earthing
Protection Class Ill: the fining is low voltage
Minimum distance from lighted objects (meters)
The type of lamp and maximum size and wattage indicated in each lighting unit must not be exceeded; different items require different kinds of light sources with a different bulb icon
The armature is designed to work only with the indicated voltage. Different items require different working voltages.
The luminaire can be used in combination with a dimmer
The reference light angle and light space of the luminaire
This luminaire cannot be disposed of together with normal domestic waste in standard rubbish can, but you have to bring it to a staging area for electrical waste - Take note of the symbols when connecting wires:
L Live conductor
Earth conductor N Neutral conductor
FittinQ B.V. Smaragdweg 52, 5527 LB Hapert, The Netherlands
