The Triflow Kitchen Collection
Filter Installation Guide

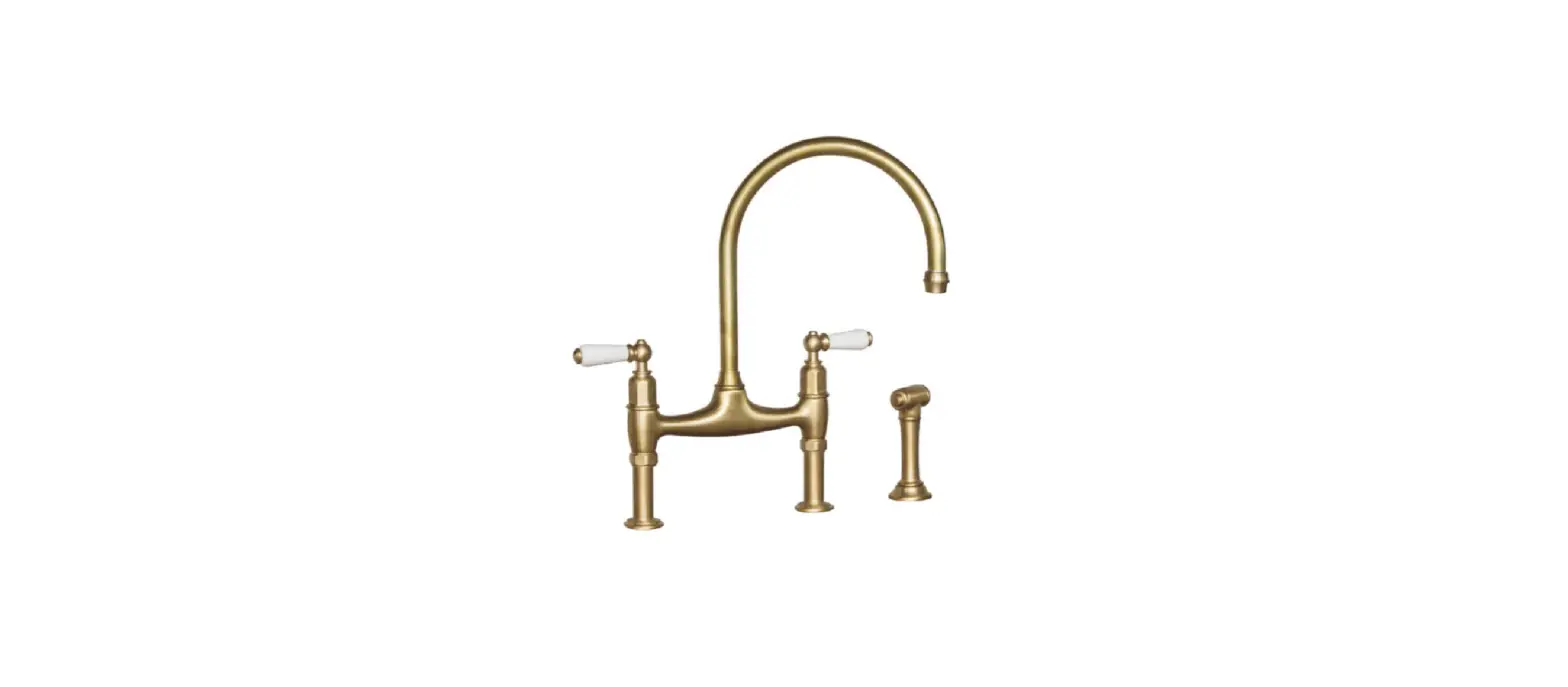

ROHA1635LMSTN2 Lonian Two Hole Bench Mounted Mixer
Temp Range:
Max 85°C/185°F
Recommended
Working Pressure:
Min 1.7bar/25psi
Max 5bar/75psi
Please register your new product.
Complete the enclosed registration card, or call Toll free on 800.777.9762.

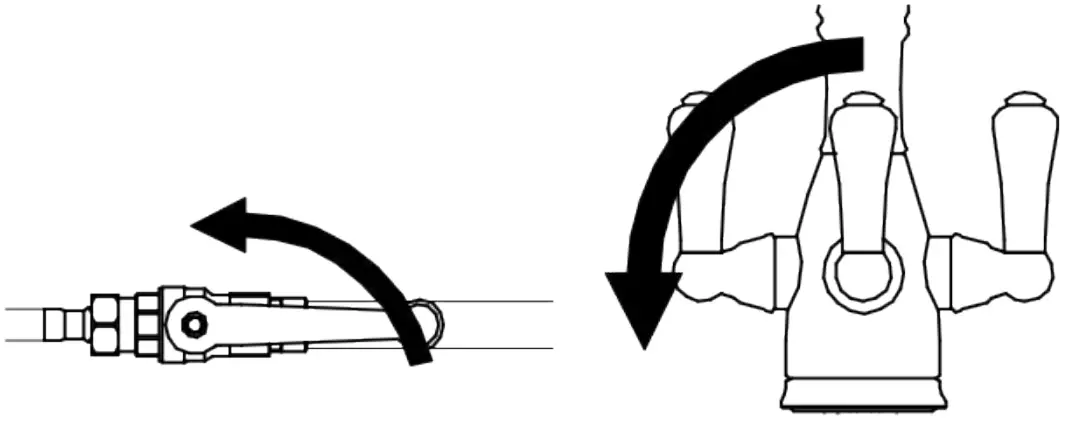

Turn on the main supply valve.
Run the filtered water for 2 minutes to flush the system, and carefully check the system for leaks. The system is now ready for use.
For optimum filter performance when using the U.1802 filter cartridge use the stop valve to set a water flow of 0.4gpm to 0.5gpm max.
To Winterize the Unit

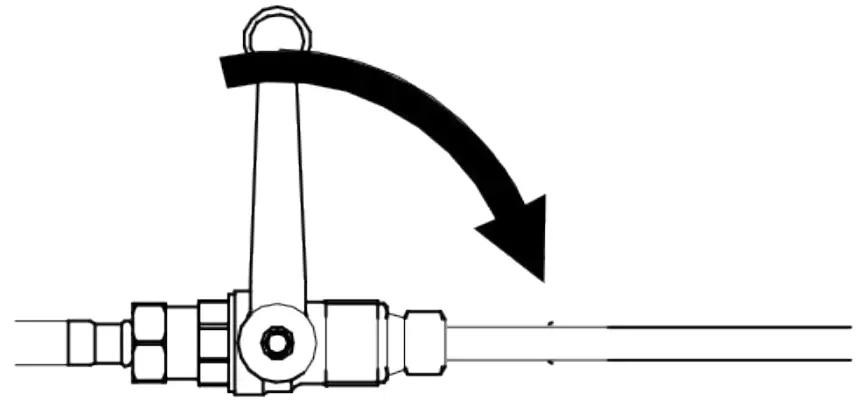

Shut off mains supply. A stop valve was supplied with the system for this purpose, and will be located on the adjacent pipe work. If you plan to be away from home for extended periods, carry out the procedures above, to prevent the risk of freezing. Freezing will invalidate the warranty.
Turn the filtered lever on the faucet to the on position. This will confirm the water supply is off, and release the pressure in the system.
Pre-filter Installation

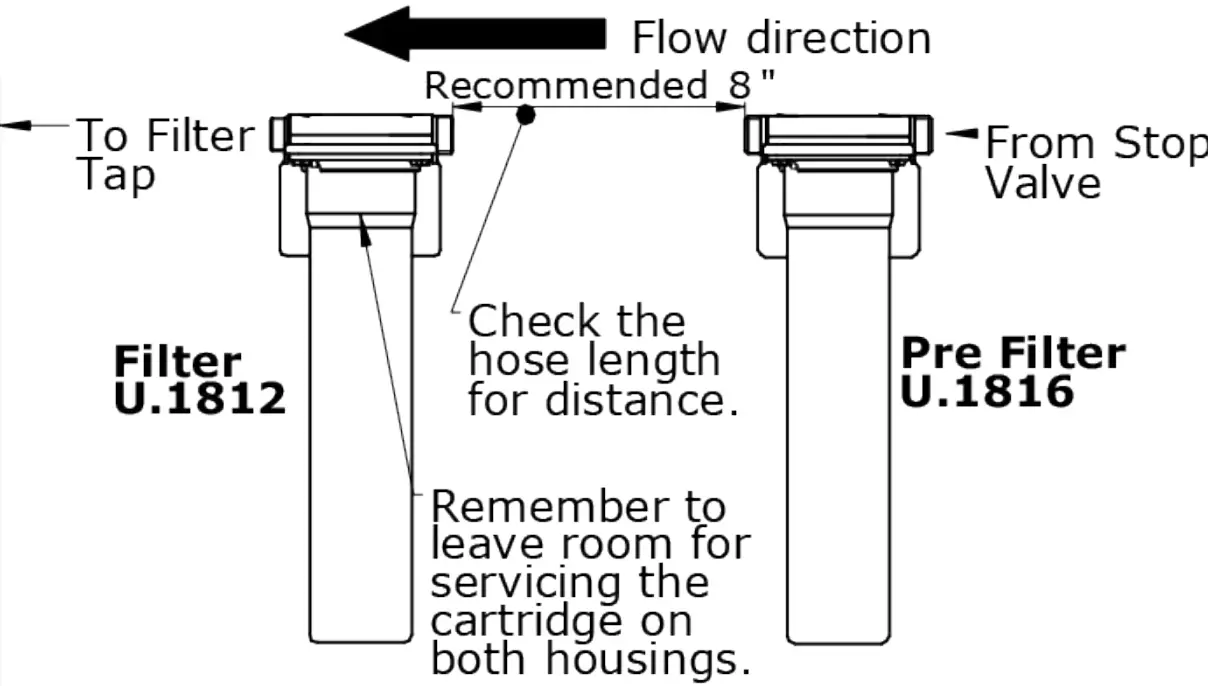

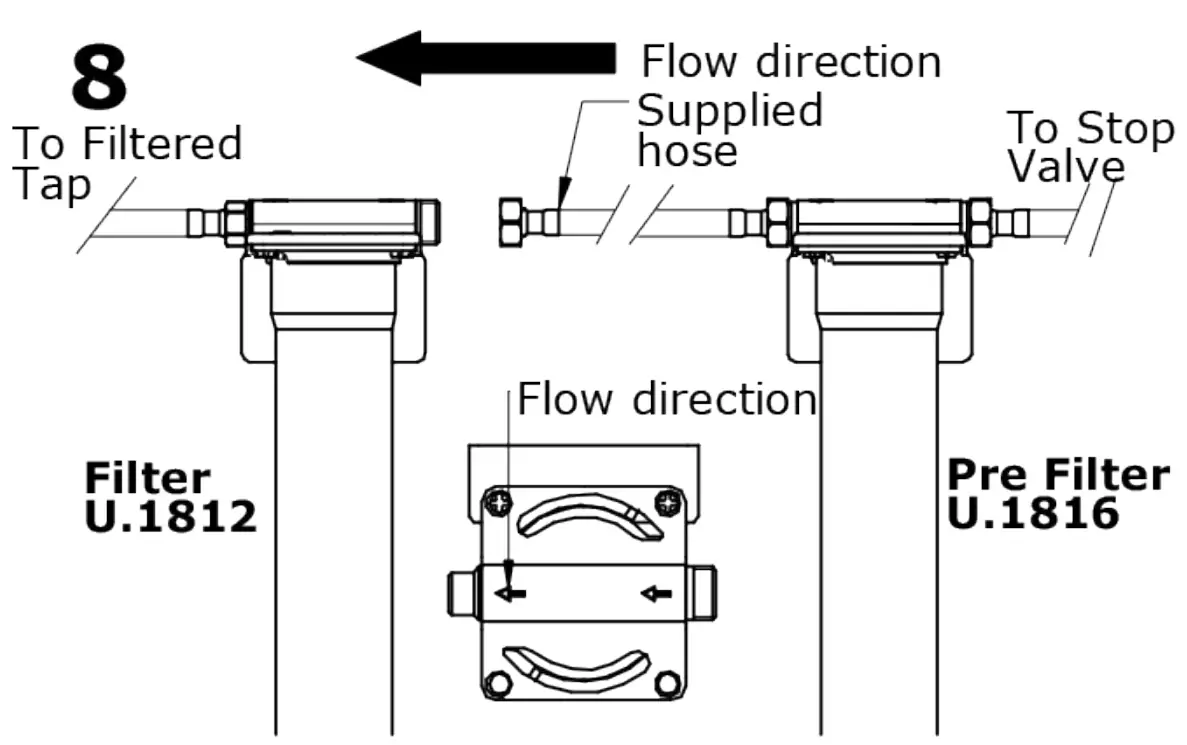

If installing a Pre-filter follow steps 1-3 for the second bracket taking into account the hose length supplied from the Pre-filter to the filter.

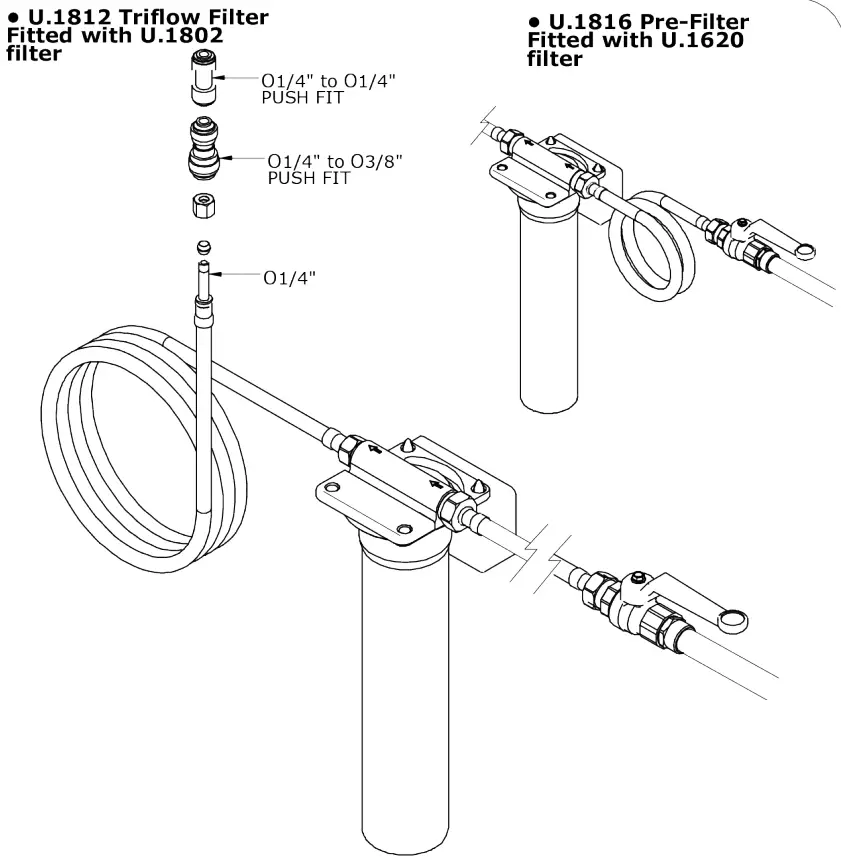

Tighten the hoses from the stop valve to the housings following the flow of the water shown on the cap. When installing the Pre-filter the system flows from the stop valve to the Pre-filter and on to the filter housing and then up to the filter tap.
IMPORTANT NOTES
Do not use with water, that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reductions may be used on disinfected waters that may contain filterable cysts.
Please ensure that the installation complies with applicable State & local plumbing codes. System is to be supplied with cold water only.
CARE & MAINTENANCE
Wipe down after use to avoid water spotting and mineral build up.
The Perrin and Rowe Collection
Filter Installation Guide
Congratulations on the purchase of your Perrin and Rowe/Triflow filtration Product. Correctly installed and with sensible care, this product will give you many years of trouble free service.
IMPORTANT INFORMATION
These are instructions for Triflow filters and the optional add on pre-filter version of the model you are installing. Please read carefully to ensure correct installation.
Before you proceed… We recommend you engage the services of a registered plumber to install this product.
In addition to the guide below it is essential that the written information overleaf is Carefully read and understood.
Preparation for Installer Flush the plumbing system before Ensure you have the correct fittings to connect installing the Kitchen product. to the filter faucet

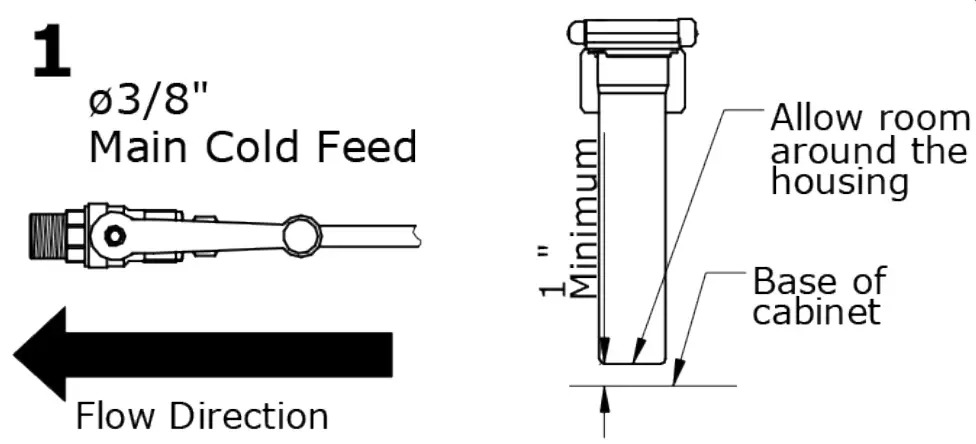

Install the supplied stop valve in an easily accessible area to allow access to turn off the water supply in the future, for servicing and cartridge replacement.

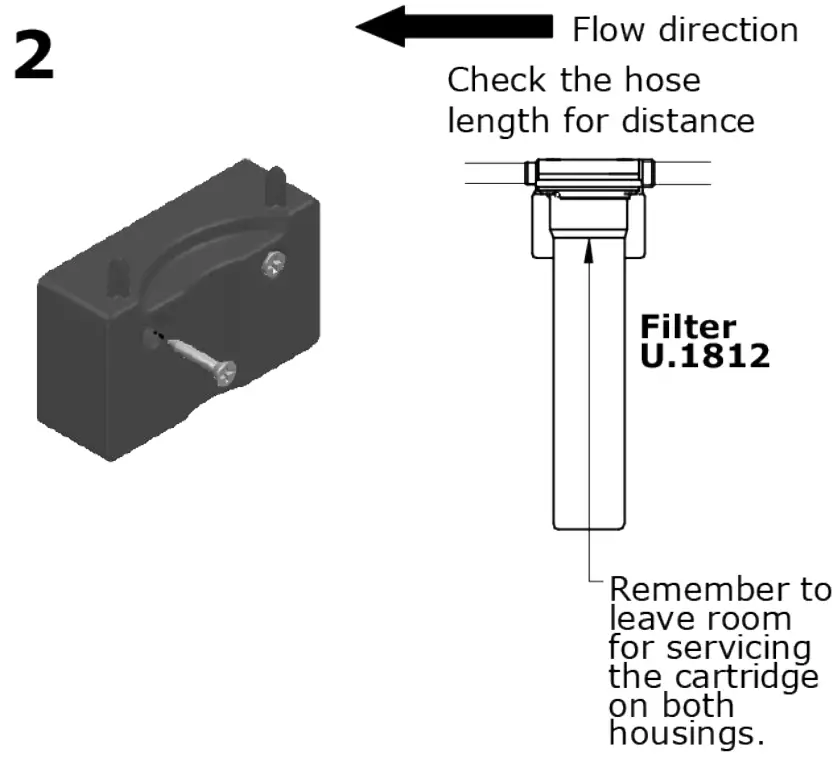

Position the filter housing leaving room around it for future access and cartridge replacement. Mark the screw holes ready for pilot holes. Leave room for the Pre-filter housing if necessary.
Drill the pilot holes and screw the filter housing bracket in position. Making sure to keep as level as possible.
Tighten the hoses from the stop valve to the housings following the flow of the water shown on the cap.
If installing a Pre-filter the system flows from the stop valve to the Pre-filter and on to the filter housing and then up to the filter tap.

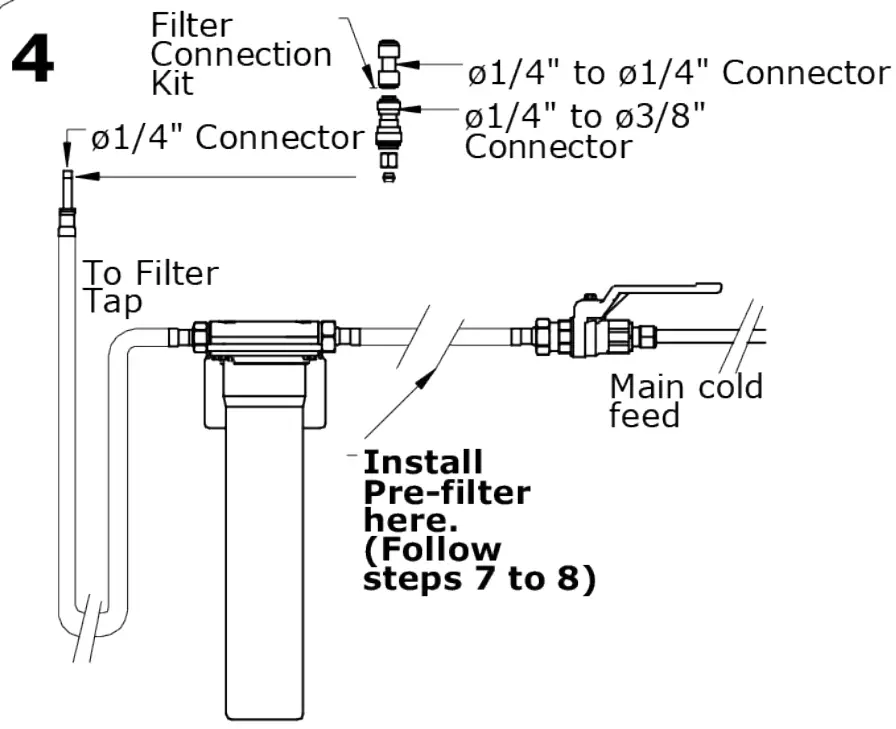

With the supplied connector kit connect the hose from the filter housing to the filter tap using one of the connectors.
3 Parker
Irvine, CA 92618
800-777-9762
www.rohlhome.com
