oras 831 06 08 Swea Basin Mixer

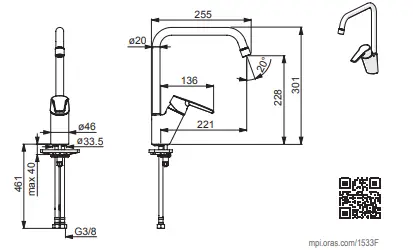

1530F
I (ISO 3822) Oras lab, EN 817 50 – 1000 kPa 0.078 l/s (Eco) 0.13 l/s (300 kPa) 180 kPa (0.1 l/s) max. +80°C

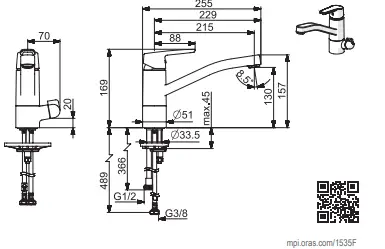

1535F
I (ISO 3822) Oras lab, EN 817 50 – 1000 kPa 0.078 l/s (Eco) 0.13 l/s (300 kPa) 180 kPa (0.1 l/s) max. +80°C
1533F
I (ISO 3822) Oras lab, EN 817 50 – 1000 kPa 0.078 l/s (Eco) 0.13 l/s (300 kPa) 180 kPa (0.1 l/s) max. +80°C

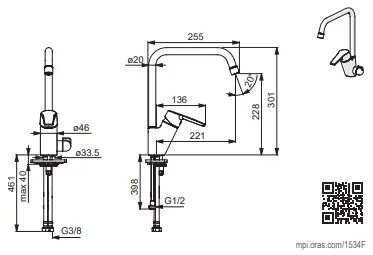

1534F , 1534F-106
I (ISO 3822) Oras lab, EN 817 50 – 1000 kPa 0.078 l/s (Eco) 0.07 l/s (Eco) 1534F-106 0.13 l/s (300 kPa) 0.09 l/s (300 kPa w/Controller) 1534F-106 180 kPa (0.1 l/s) max. +80°C

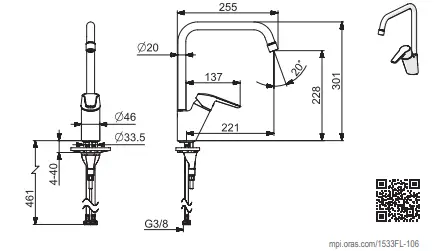

1533FL-106
I (ISO 3822) Oras lab, EN 817 50 – 1000 kPa 0.07 l/s (Eco) 0.09 l/s (300 kPa w/Controller) max. +80°C

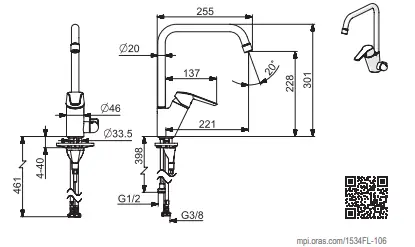

1534FL-106
I (ISO 3822) Oras lab, EN 817 50 – 1000 kPa 0.07 l/s (Eco) 0.09 l/s (300 kPa w/Controller) max. +80°C

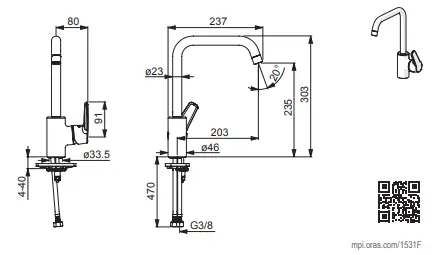

1531F
I (ISO 3822) Oras lab, EN 817 50 – 1000 kPa 0.078 l/s (Eco) 0.13 l/s (300 kPa) 180 kPa (0.1 l/s) max. +80°C
1536F
I (ISO 3822) Oras lab, EN 817 50 – 1000 kPa 0.078 l/s (Eco) 0.13 l/s (300 kPa) 180 kPa (0.1 l/s) max. +80°C

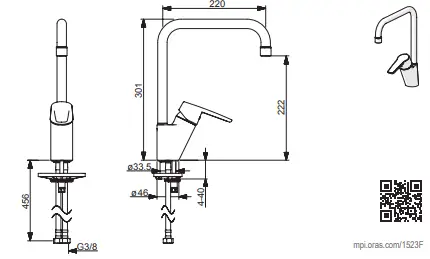

1523F
I (ISO 3822) Oras lab, EN 817 50 – 1000 kPa 0.078 l/s (Eco) 0.13 l/s (300 kPa) 180 kPa (0.1 l/s) max. +80°C

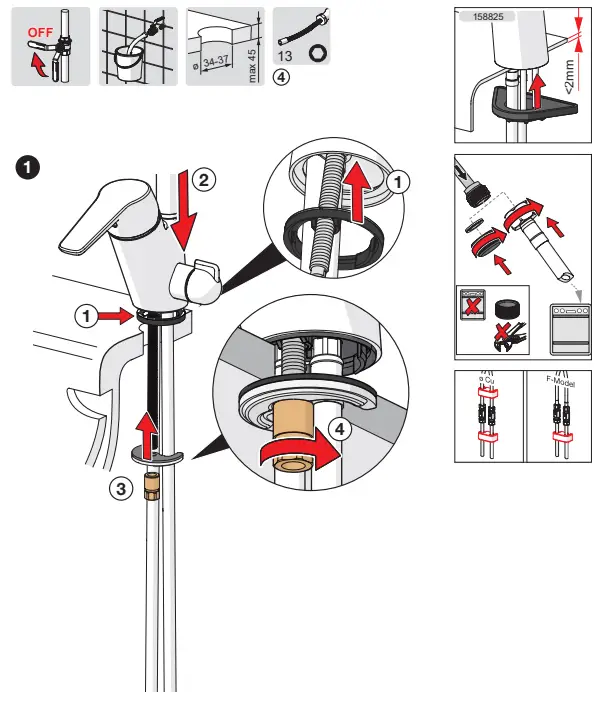

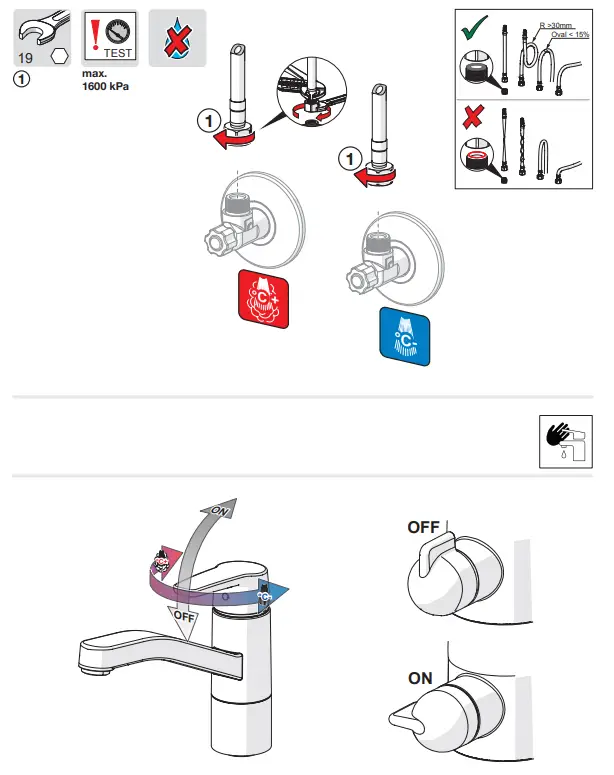

INSTALLATION
CLEANING
