Installation instructions

DORNBRACHT 35 700 970 90 Wall Mounted Mixer Centred Spout

35 700 970 90 / 35 700 970-90 0010

General safety instructions

ATTENTION!
This symbol warns of property damages due to non-compliance with the instructions.

Please read this manual and follow the instructions.

All manuals and documents belonging to the product have to be passed on to the end user. Otherwise the producer liability may be limited in case of damage.

All work has to be carried out by a competent and qualified plumber according national regulations and regulations of the local water supply companies.

Local accident prevention regulations are to be followed with priority.

Operating conditions and dimensions can be found in the appendix.

For questions or uncertainties regarding installation or operation, please contact the Technical Service of Dornbracht.

You can find relevant contact details on the back of this manual and on the website of Dornbracht: www.dornbracht.com

DORNBRACHT - ATTENTION 2
ATTENTION!
Some parts of the fitting can be damaged by heat. Avoid any kind of heat generated at the fitting from soldering or welding.

Technical information.

dornbracht.com

Required tools.

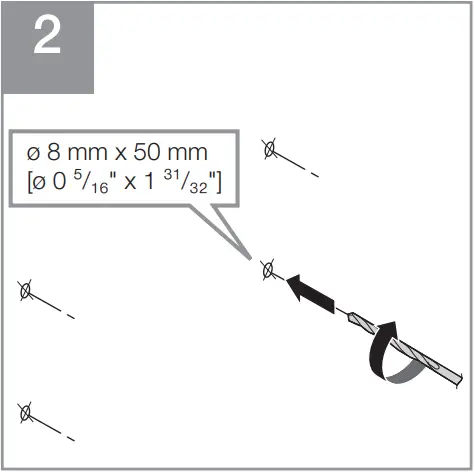

ø 8 mm x 50 mm
[ø 0 ⁵/₁₆” x 1 ³¹/₃₂”]

DORNBRACHT tools 6 TX 30

DORNBRACHT tools 8

Ø 35 mm [Ø 1³/₈” ]

Parts supplied.

DORNBRACHT 35 700 970 90 - Parts supplied 1

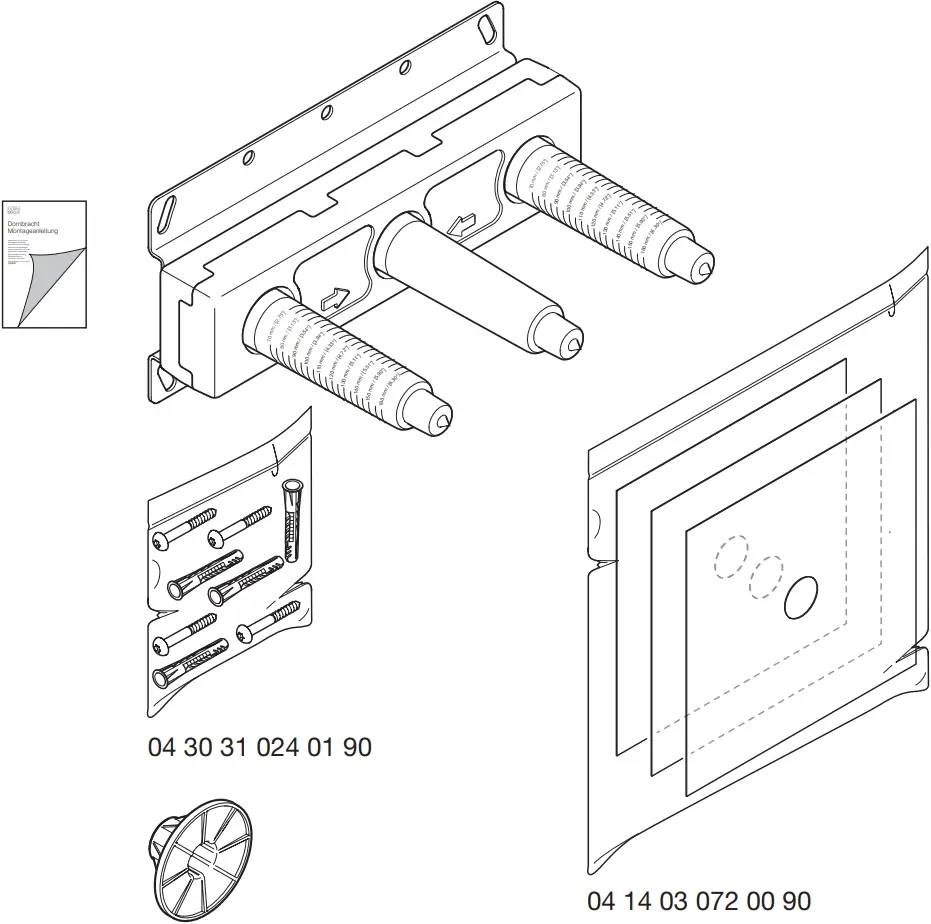

DORNBRACHT 35 700 970 90 - Parts supplied 2

Installation Variants.

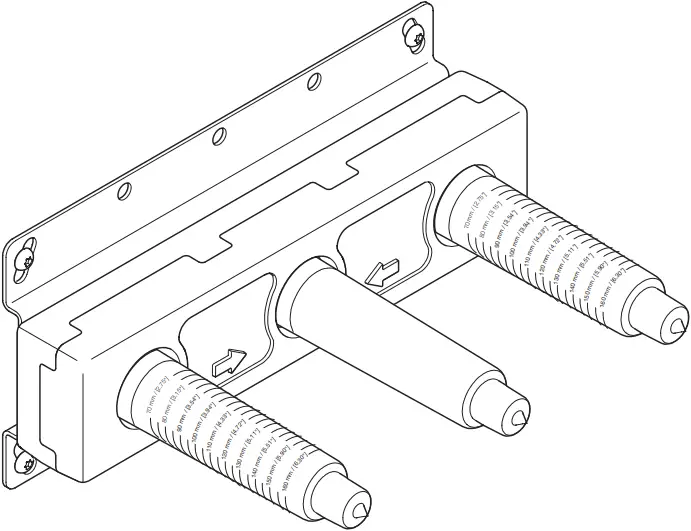

DORNBRACHT 35 700 970 90 - Installation Variants 1

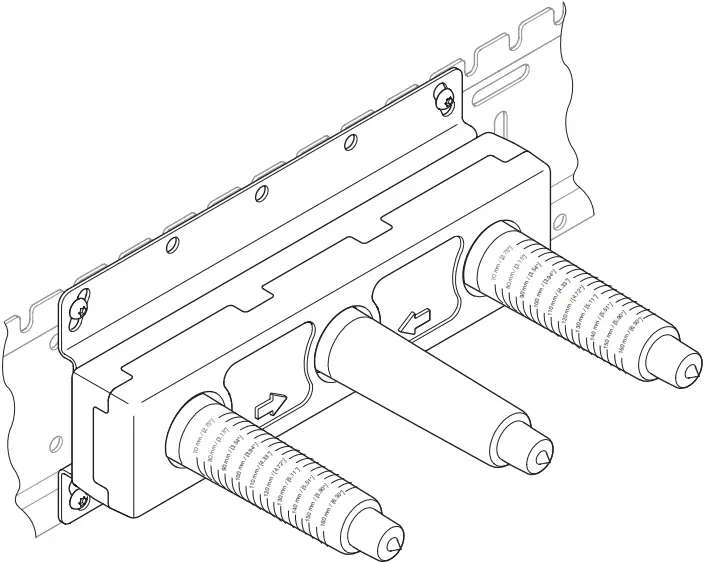

DORNBRACHT 35 700 970 90 - Installation Variants 2

Planning Note.

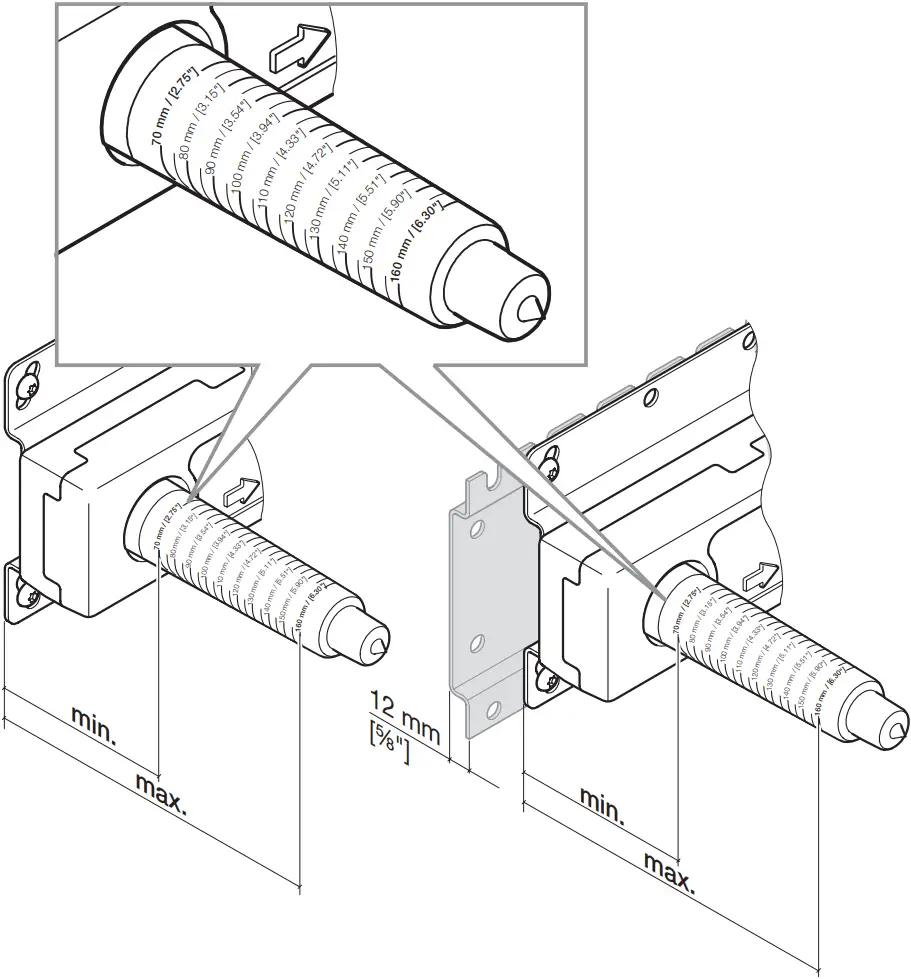

DORNBRACHT 35 700 970 90 - Planning Note 1

		min.	max.
36xxx361-FF	Madison	85 mm [3 ³/₈” ]	145 mm [5 ⁵/₈”]
36xxx809/819-FF	Vaia	85 mm [3 ³/₈” ]	145 mm [5 ⁵/₈”]
36xxx882/892-FF	Tara.	85 mm [3 ³/₈” ]	145 mm [5 ⁵/₈”]
36xxx811-FF	CYO	85 mm [3 ³/₈” ]	145 mm [5 ⁵/₈”]
36xxx705-FF	CL.1	110 mm [4 ³/₈”]	150 mm [5 ⁷/₈”]
36xxx782-FF	MEM	110 mm [4 ³/₈”]	150 mm [5 ⁷/₈”]

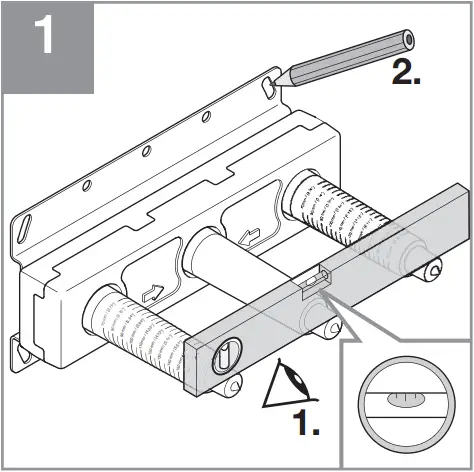

DORNBRACHT 35 700 970 90 - Fig. 1

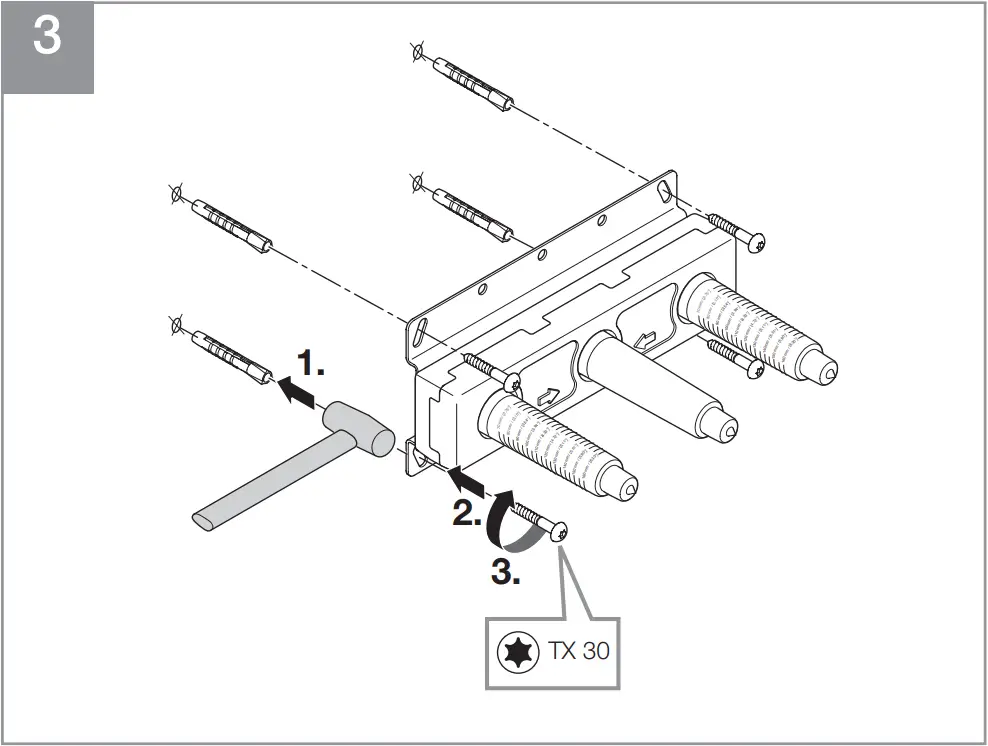

DORNBRACHT 35 700 970 90 - Fig. 3

DORNBRACHT 35 700 970 90 - Fig. 4

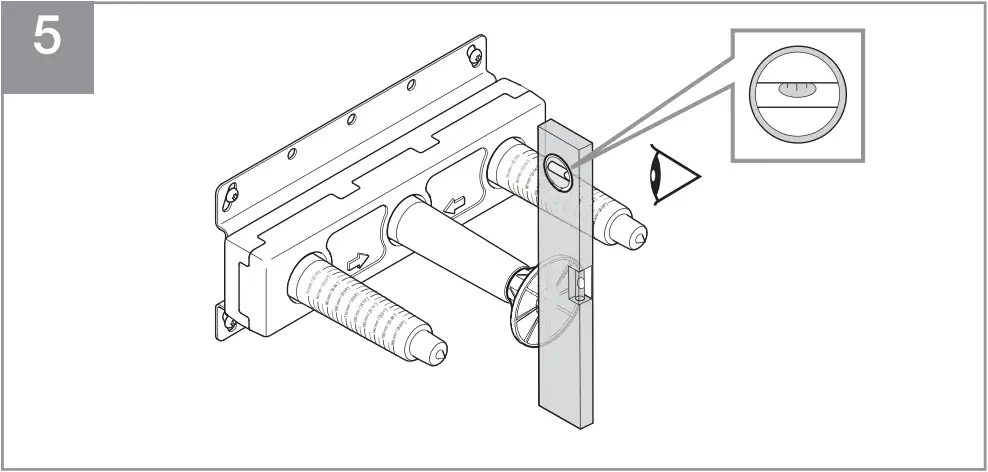

DORNBRACHT 35 700 970 90 - Fig. 5

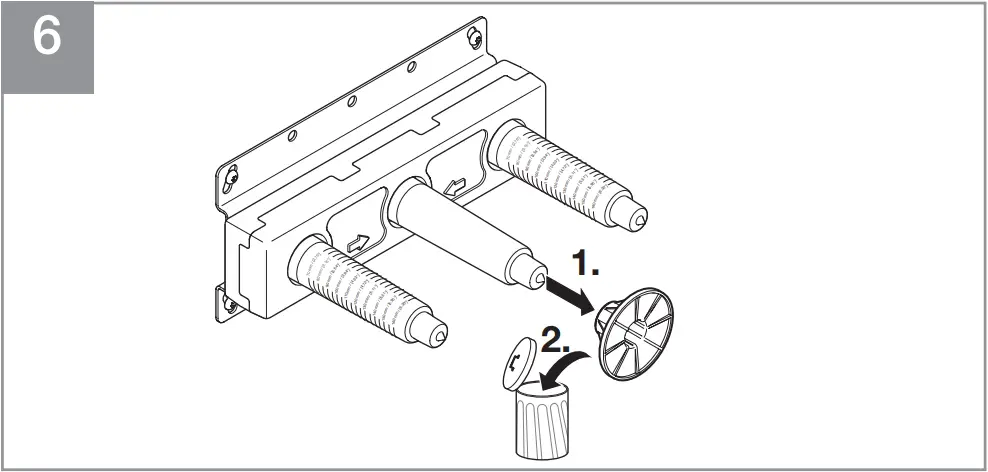

DORNBRACHT 35 700 970 90 - Fig. 6

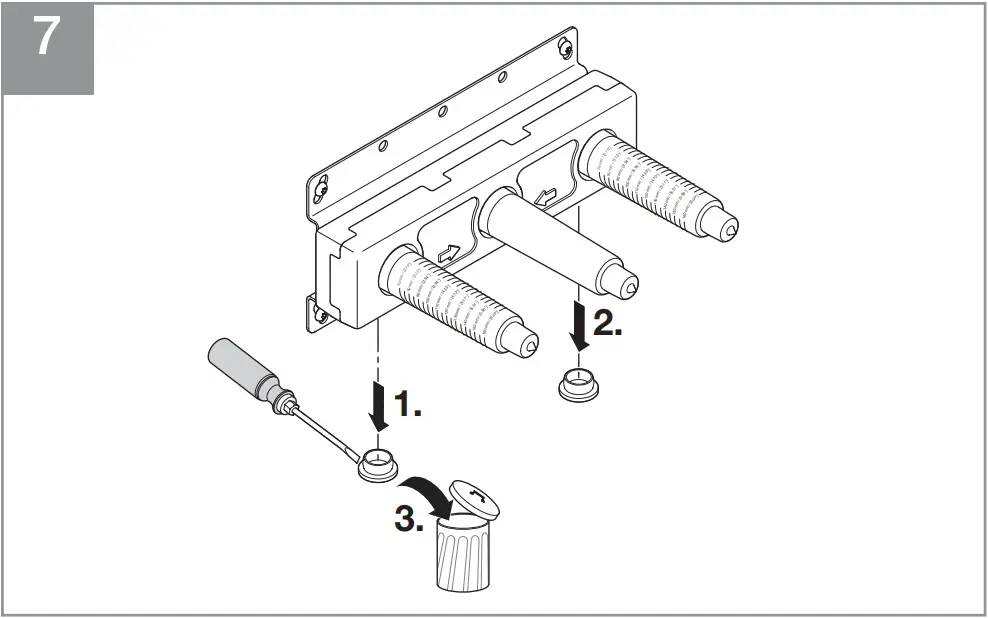

DORNBRACHT 35 700 970 90 - Fig. 7

DORNBRACHT 35 700 970 90 - Fig. 8

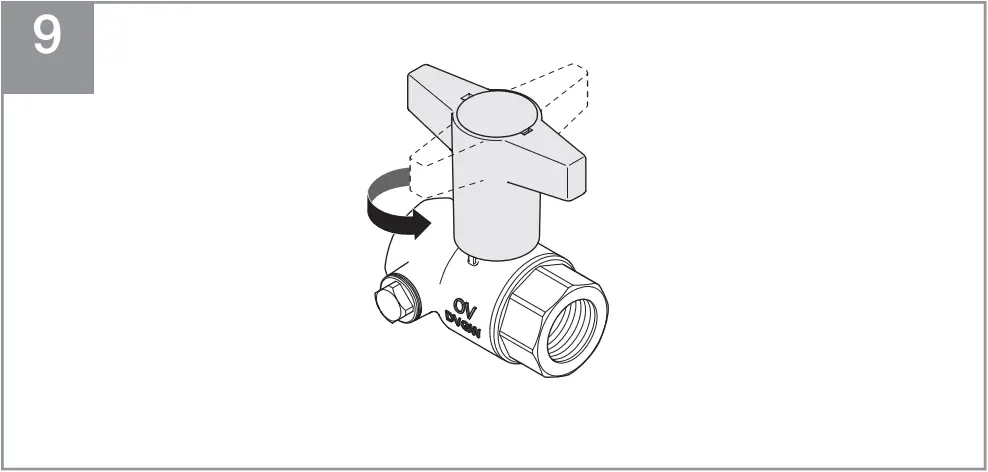

DORNBRACHT 35 700 970 90 - Fig. 9

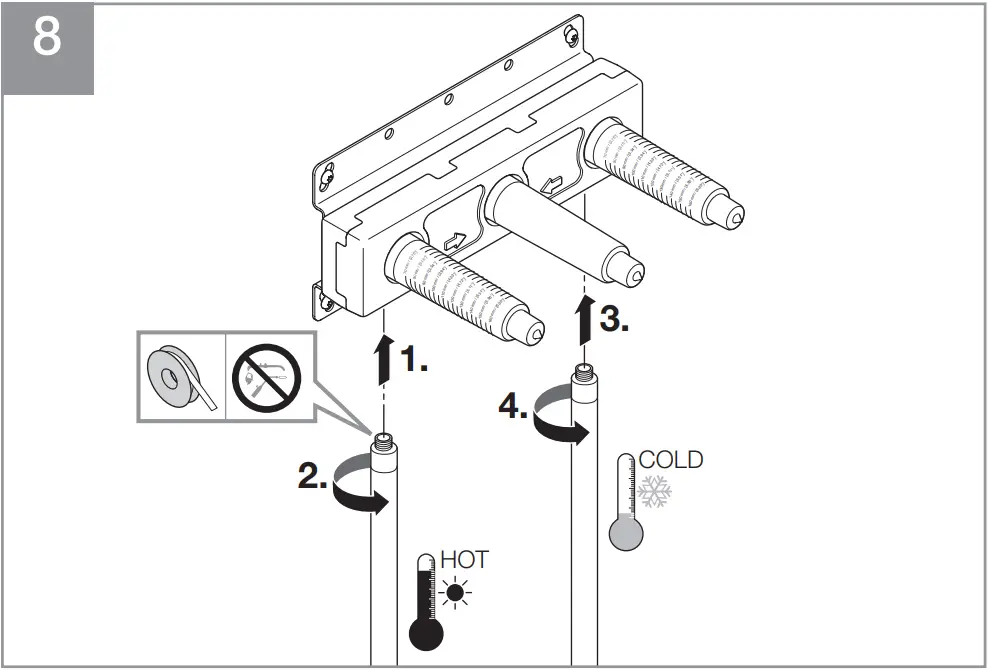

DORNBRACHT 35 700 970 90 - Fig. 10

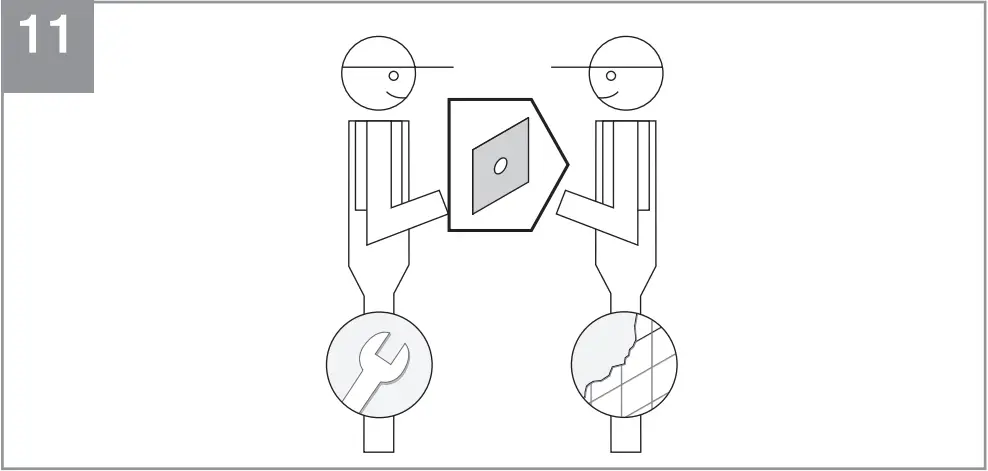

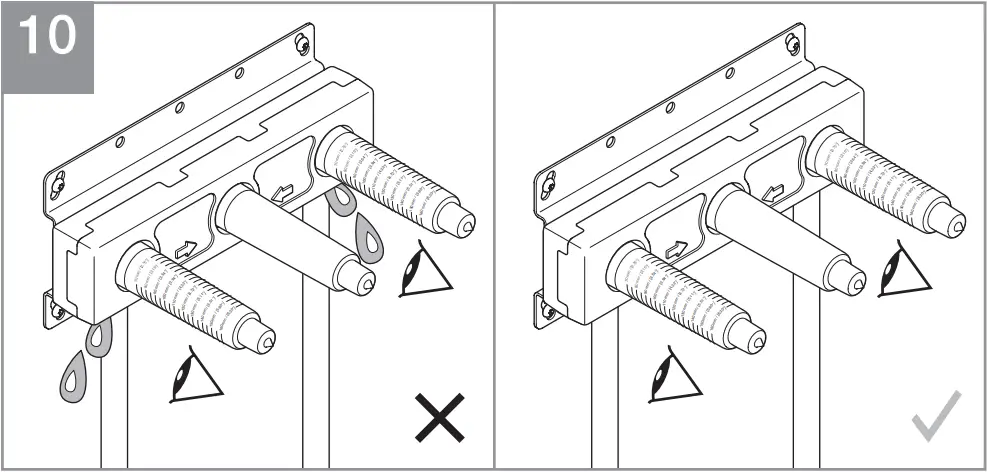

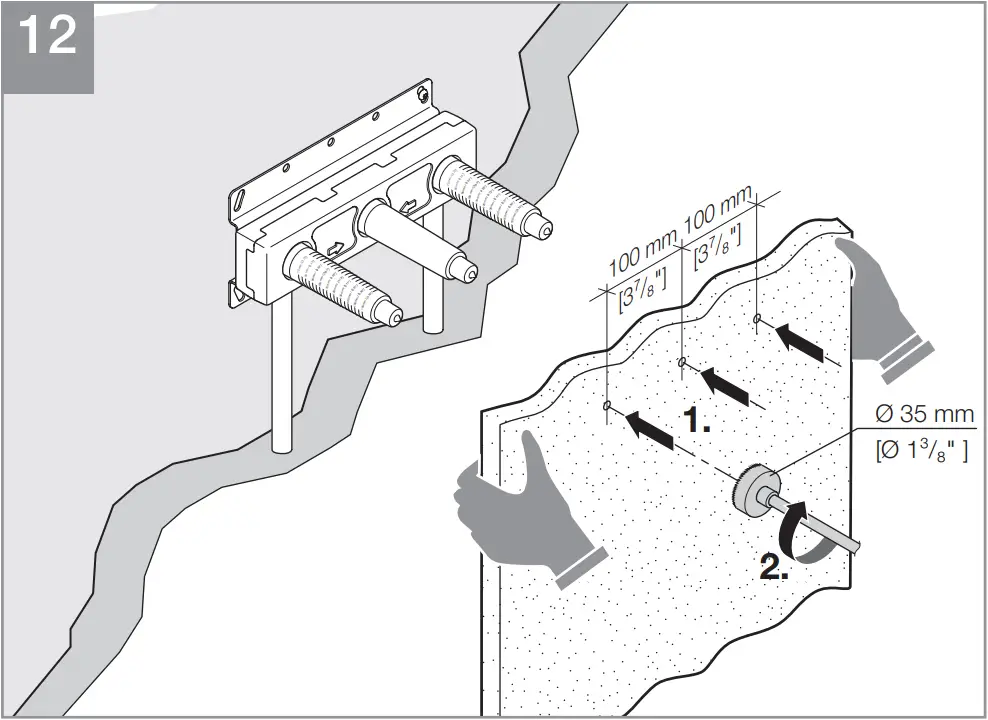

DORNBRACHT 35 700 970 90 - Fig. 11

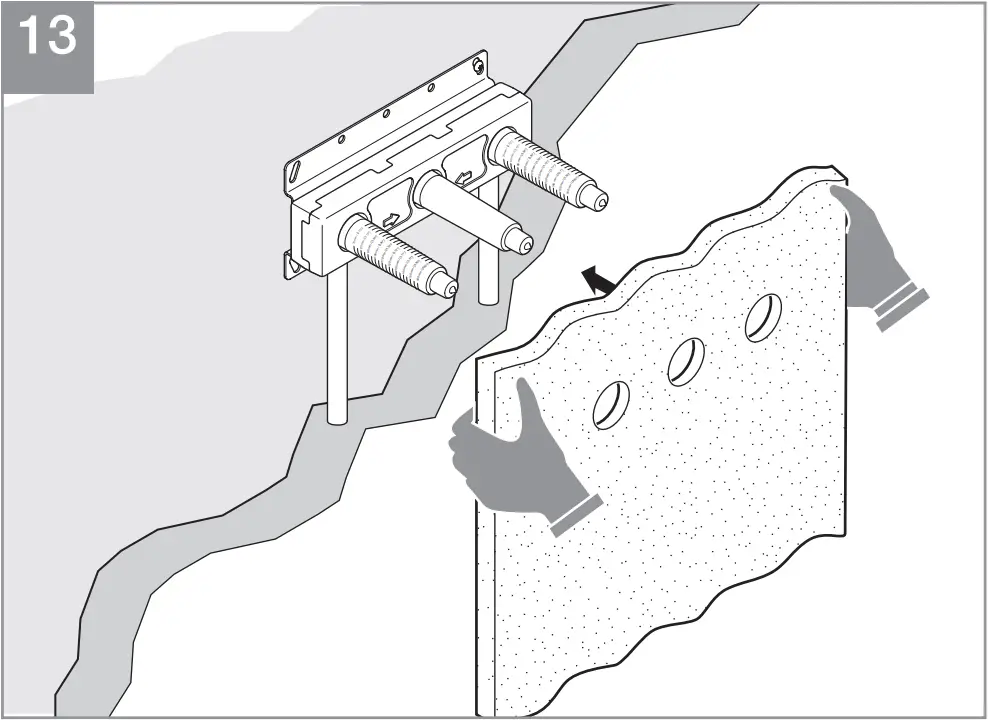

DORNBRACHT 35 700 970 90 - Fig. 12

DORNBRACHT 35 700 970 90 - Fig. 13

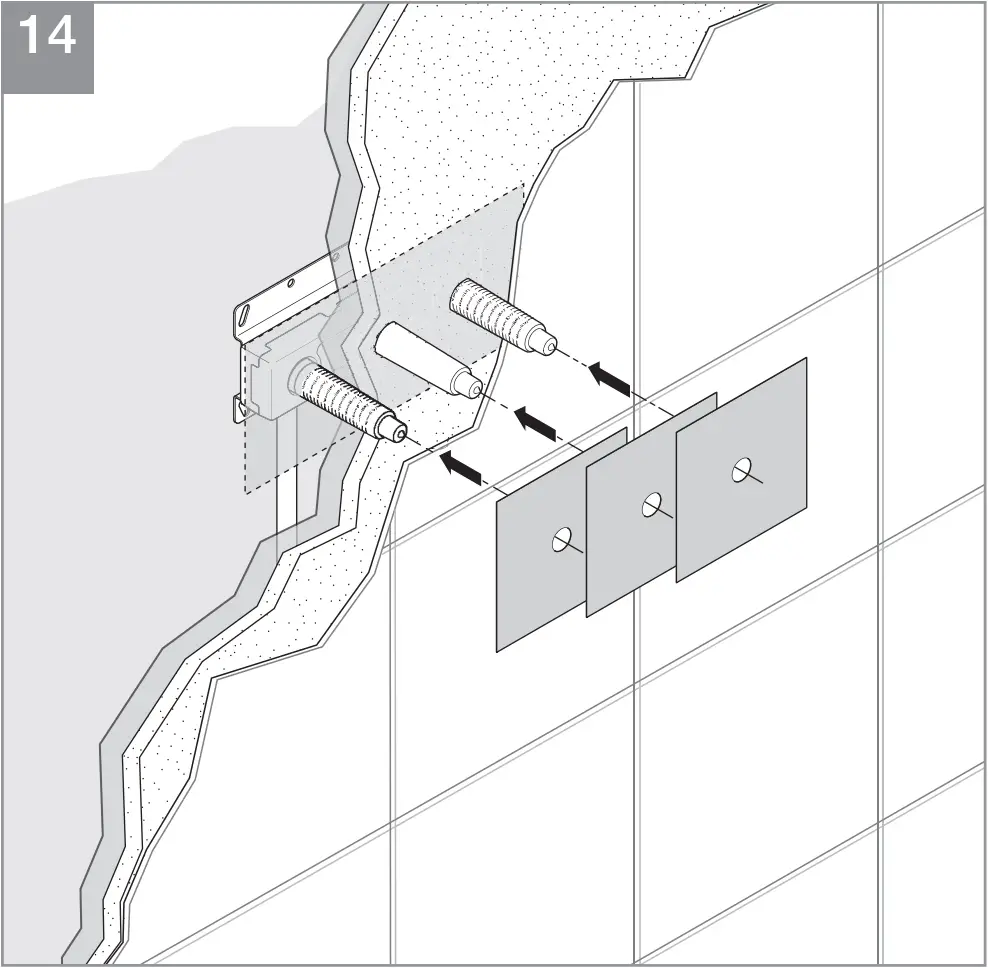

DORNBRACHT 35 700 970 90 - Fig. 14

35 202 970 90

mm [inches]

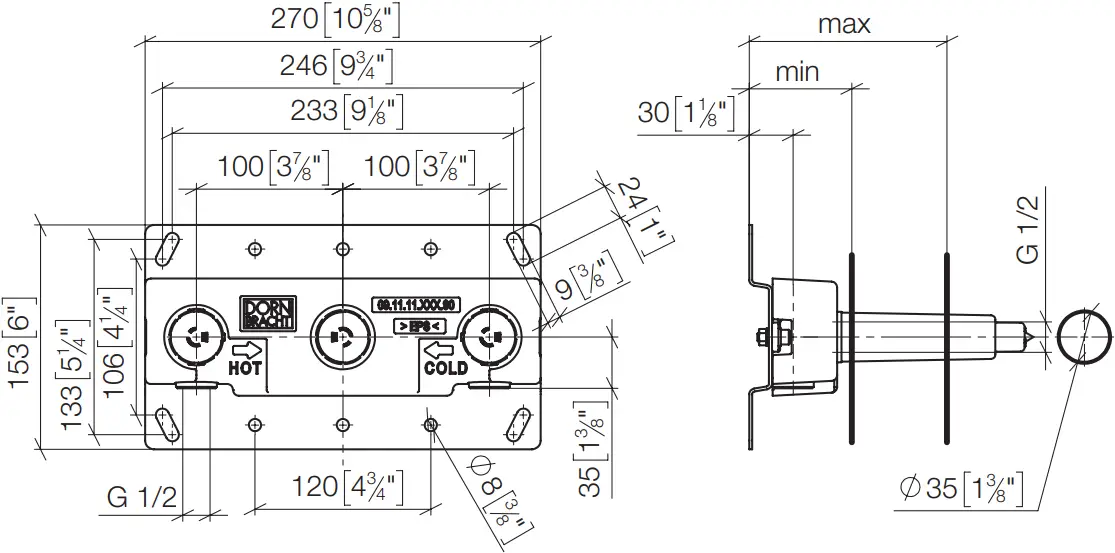

DORNBRACHT 35 700 970 90 - Dimensions

Operating conditions

Cold water temperature 5 – 25 °C
Hot water temperature 55 – 65 °C
Recommended hot water temperature 60 °C
Thermal disinfection (5:00 mins.) ≤ 70 °C
Permissible flow pressure 1 – 5 bar
Recommended flow pressure 3 bar

The customer has to provide a pressure reducer in the main line downstream of the water meter to comply with the noise levels according to the noise class at a resting pressure above 500 kPa / 73 psi / 5 bar.

If combined with continuous-flow heaters, the minimum flow volume of the safety shut-off has to be considered.

Observe the manufacturer’s instructions for the continuous-flow heater.

Dornbracht AG & Co. KG
Köbbingser Mühle 6,
D-58640 Iserlohn
Tel. +49 2371 8899-900,
[email protected],
www.dornbracht.com

DORNBRACHT 35 700 970 90 - Bar code
01 03 61 006 00 / 01.2022
