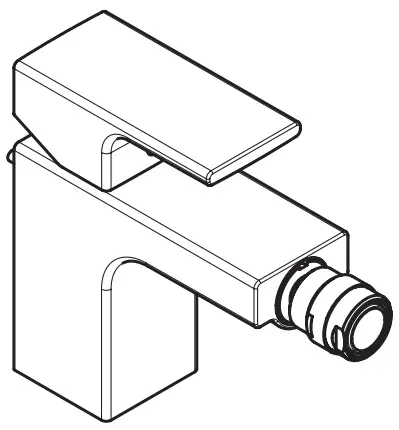

Hansgrohe 71560xxx Vernis Shape 70 Single Lever Basin Mixer Instruction Manual

71560XXX Vernis Shape
70 Single Lever Basin MixerVernis Shape 70
71560XXX / 71566000 / 71567XXX /
71596000
Vernis Shape 70 CoolStart
71593XXX
Vernis Shape 100
71561XXX / 71568000 / 71569XXX /
71597000
Vernis Shape 100 CoolStart
71594XXXVernis Shape
71211XXX / 71219XXX

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The product may only be used for bathing,hygienic and body cleaning purposes.
The hot and cold supplies must be of equal pressures.

Installation Instructions

• Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured.
• The pipes and the fixture must be installed, flushedand tested as per the applicable standards.
• The plumbing codes applicable in the respective countries must be observed.
• The drain valve must only be used as intended. It isnot allowed to attach other objects to the drain valve, for example a semi-pedestal.
• If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart ®  (flowlimiter) located behind the aerator can be removed.

Technical Data

This mixer series-produced with EcoSmart® (flow limiter)

The product is exclusively designed for drinking water!

Symbol description

Do not use silicone containing acetic acid!

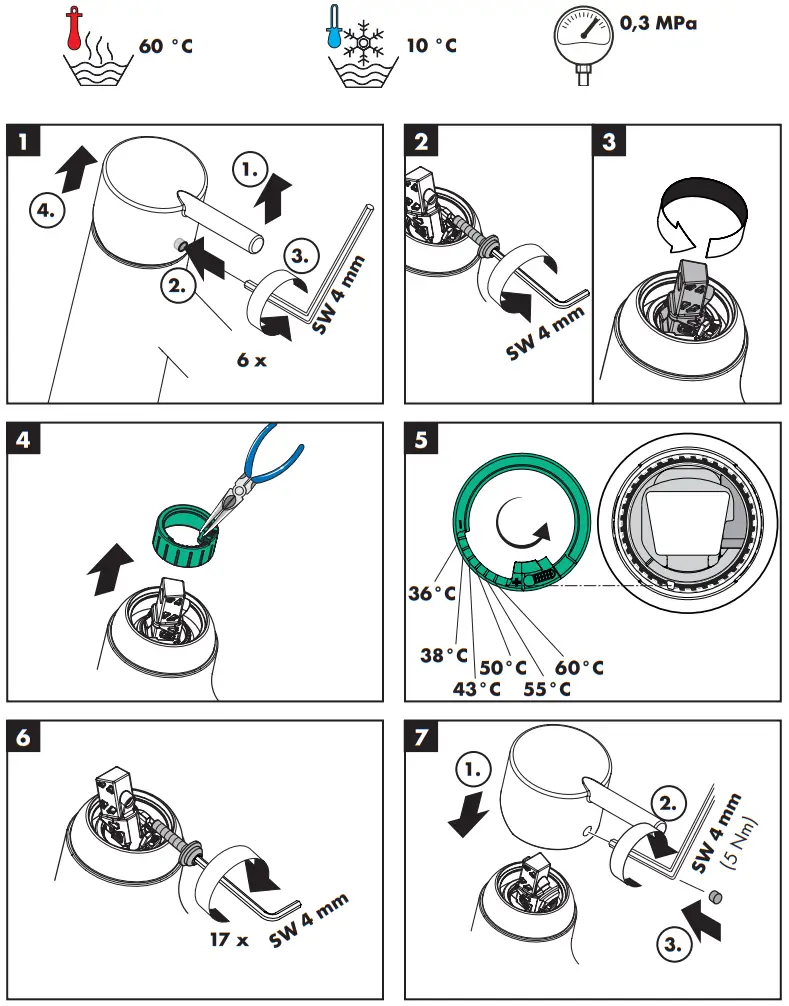

Adjustment
To adjust the hot water limiter. Using a hot water limiter in combination with a continuous flow water heater is not recommended.

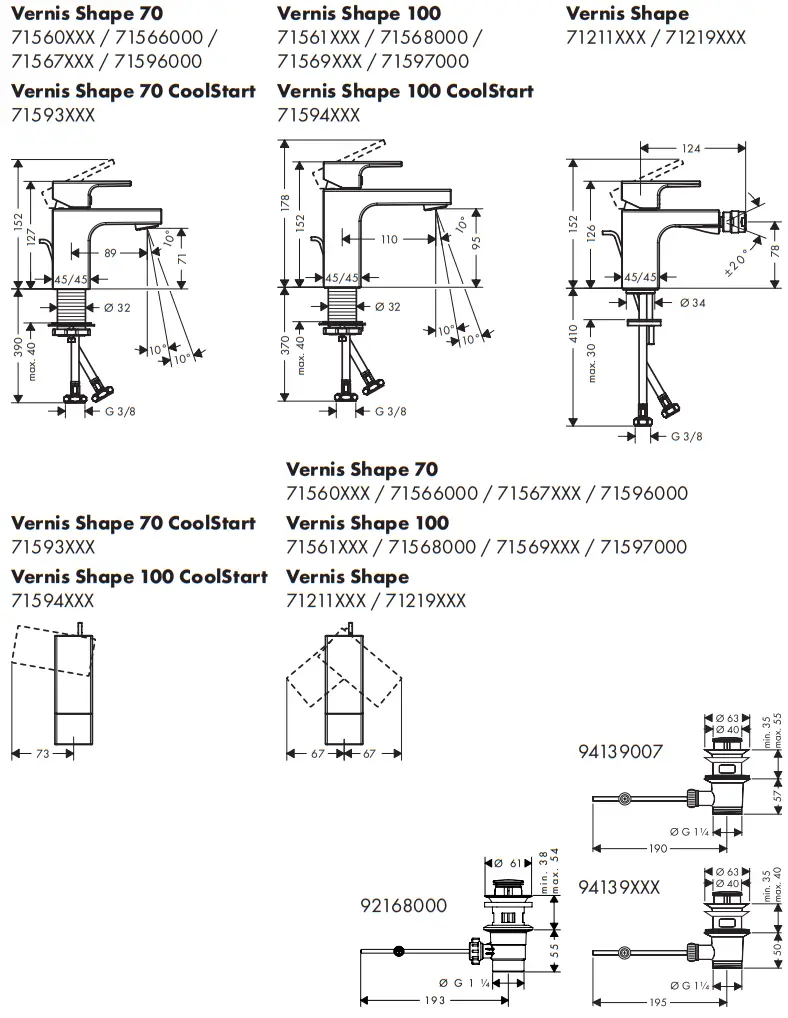

Dimensions

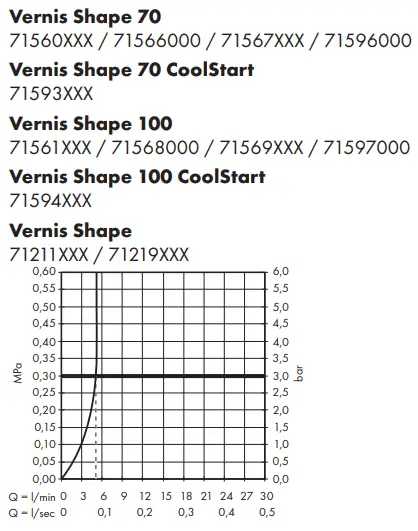

Flow diagram

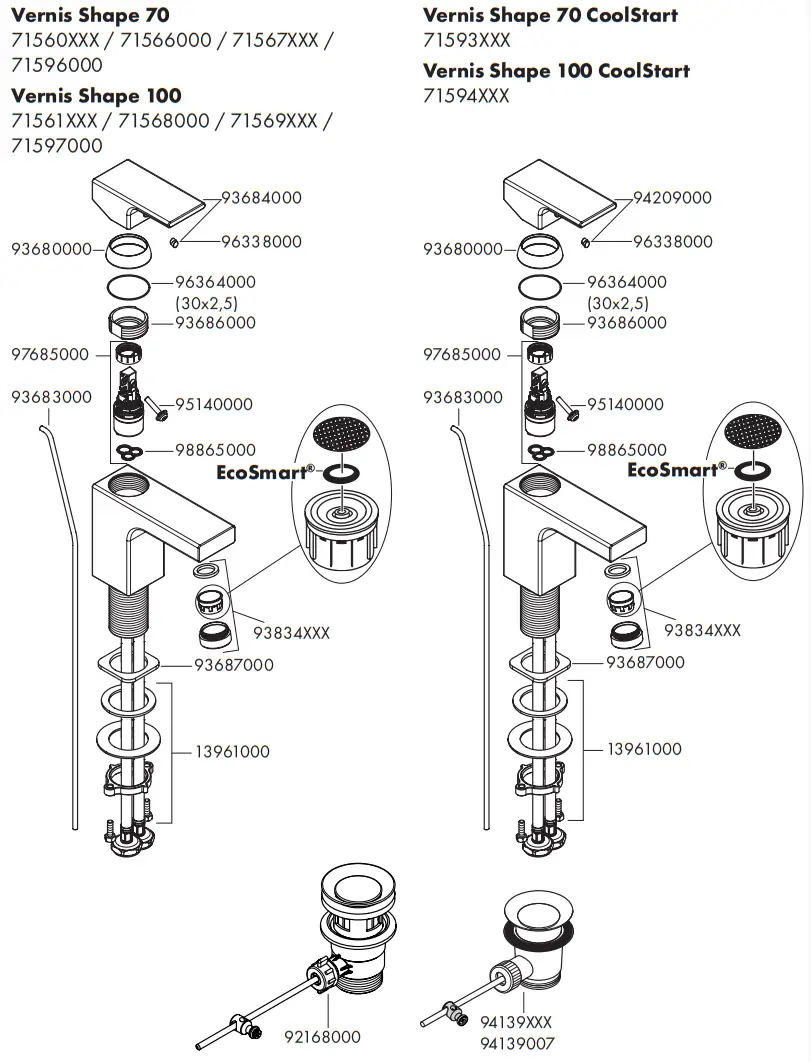

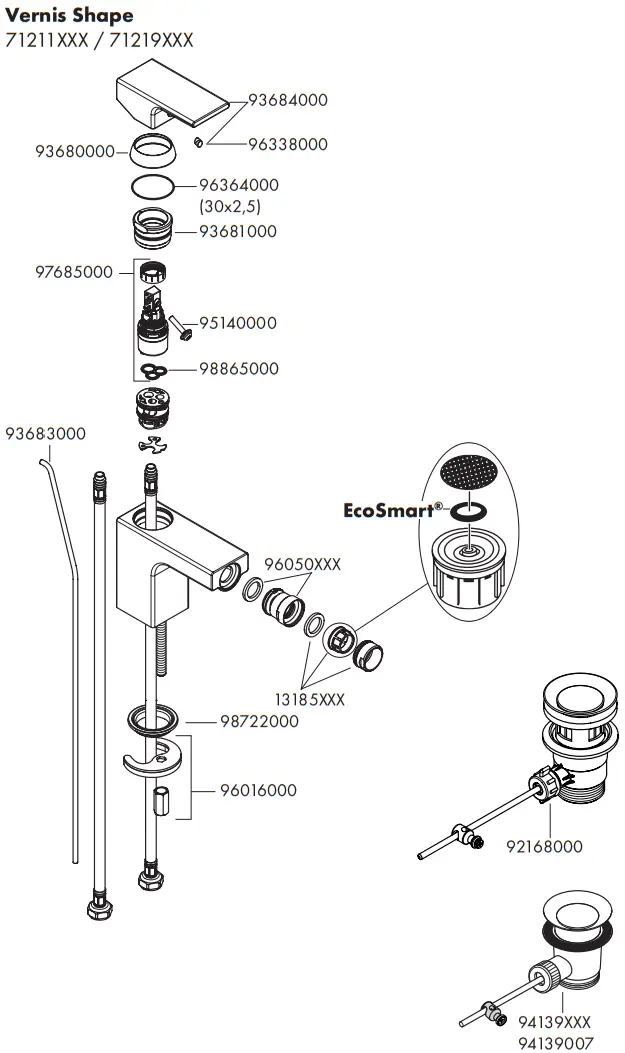

Spare parts
XXX = Colors
000 = Chrome Plated
670 = Matt Black
Special accessories (order as an extra)

• special tool #58085000
• Installation putty

Cleaning

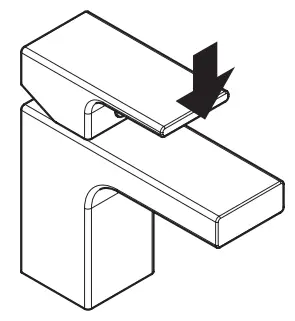

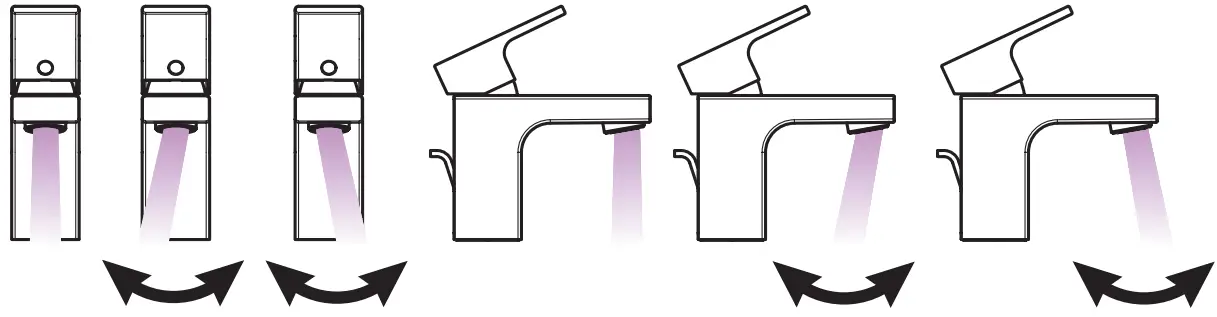

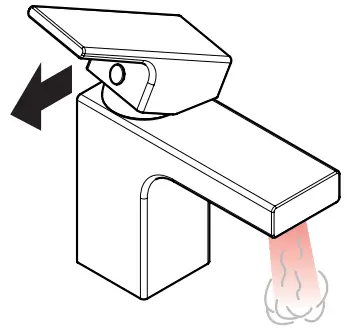

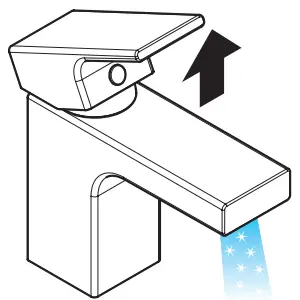

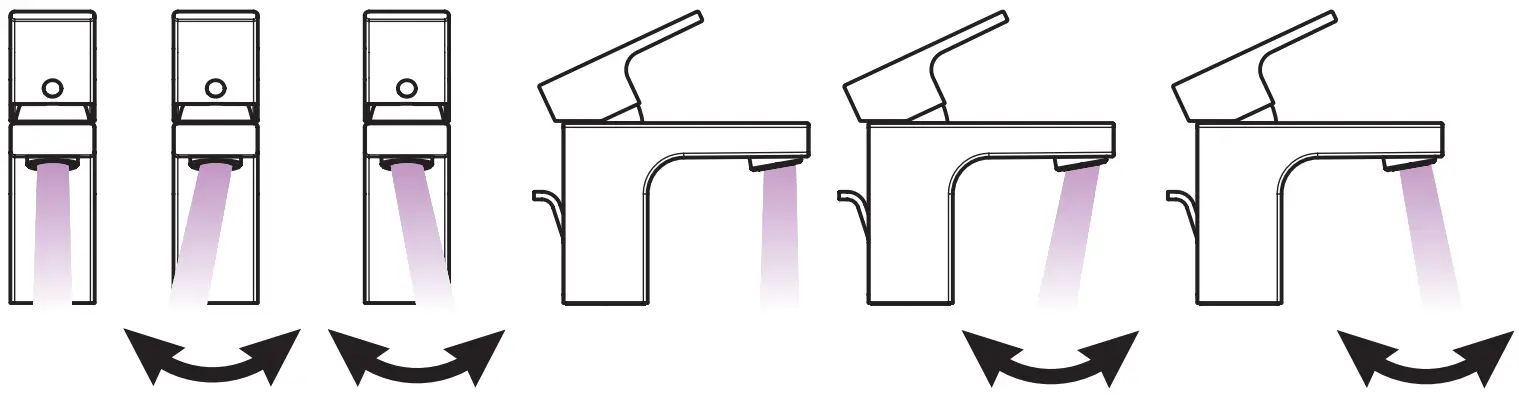

Operation

• Hansgrohe recommends not to use as drinking water the first half liter of water drawn in the morning or after a prolonged period of non-use.
• After periods of prolonged non-use, but at least every third day, the fittings must be opened with the handle in hot and cold position to prevent stagnation in the connecting lines. Let the water run until the water temperature is constant.

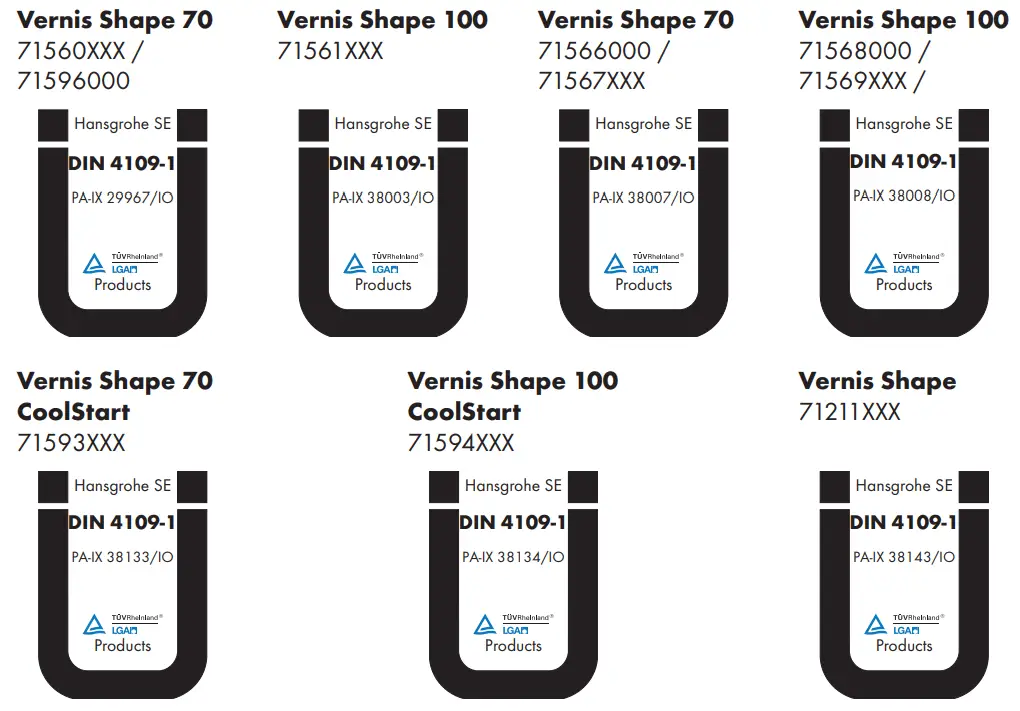

Test certificate

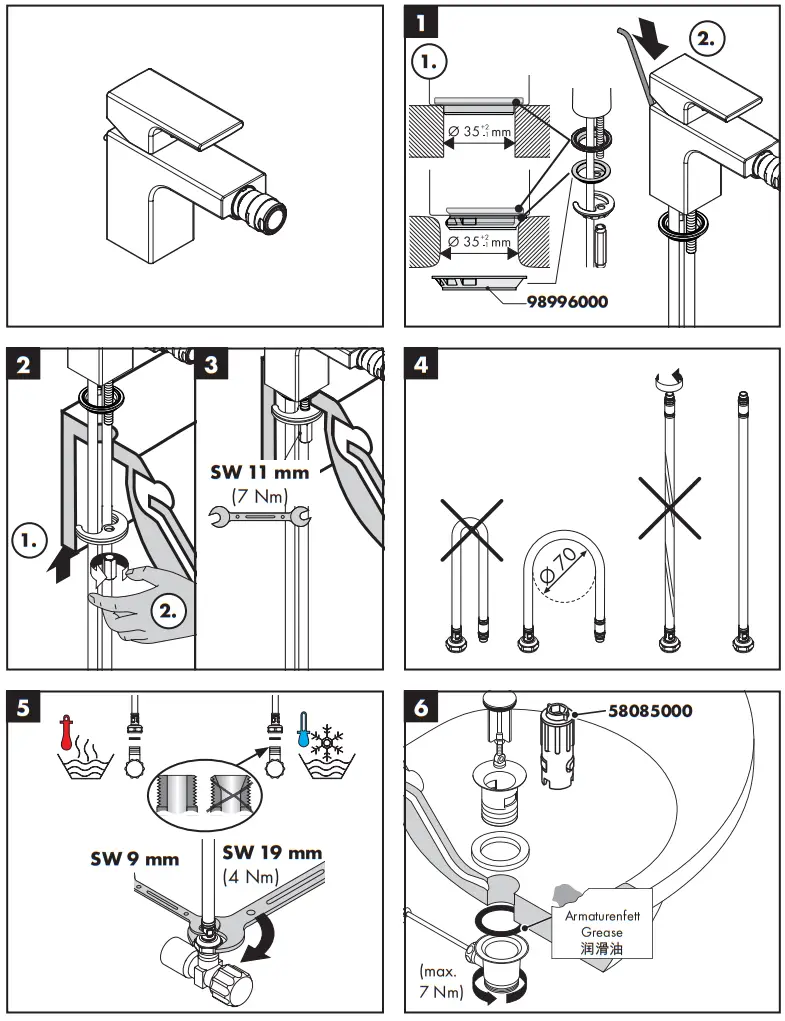

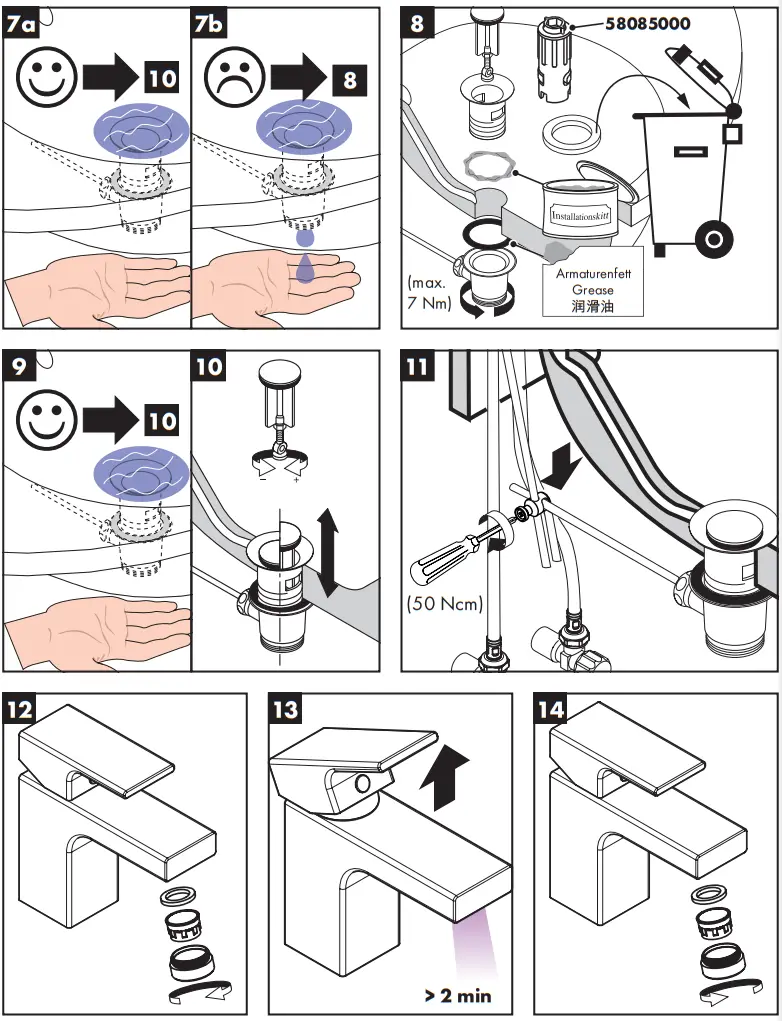

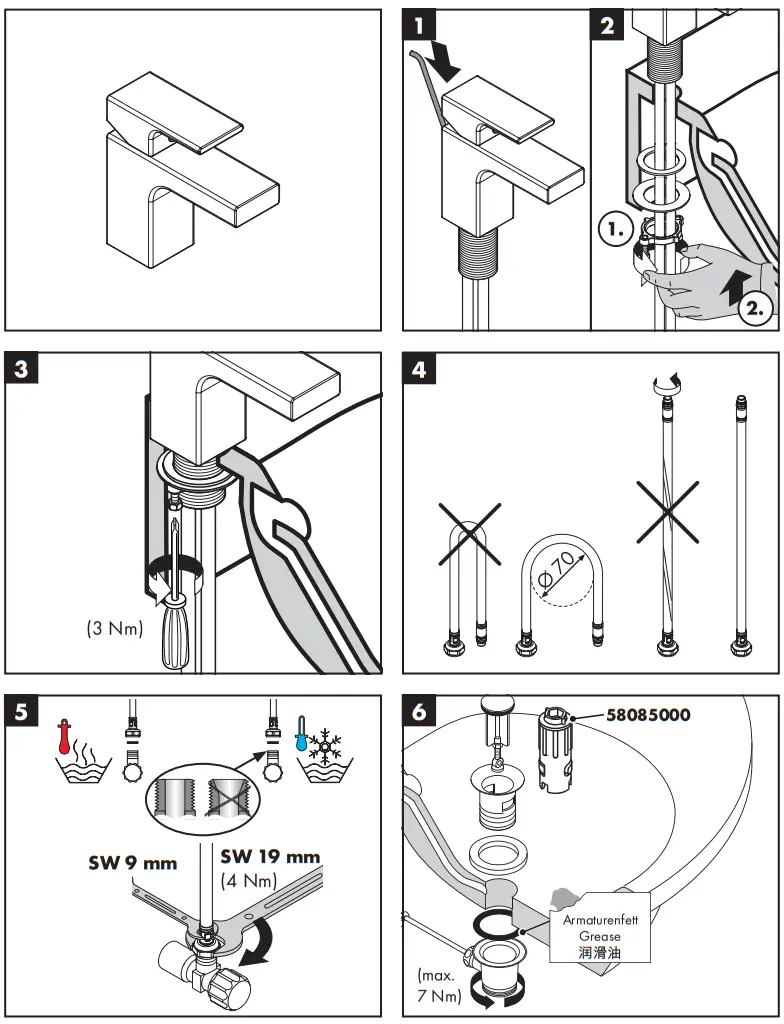

Assembly

http://www.hansgrohe.com/cleaning-recommendation

Cleaning recommendation

http://www.hansgrohe.com/cleaning-recommendation

Warranty

http://www.hansgrohe.com/cleaning-recommendation

Contact

http://www.hansgrohe.com/cleaning-recommendation

Vernis Shape 70
71560XXX / 71566000 / 71567XXX /
71596000
Vernis Shape
71211XXX / 71219XXX
Vernis Shape 100
71561XXX / 71568000 / 71569XXX /

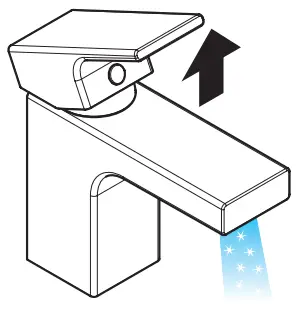

71597000 open close cold hot Vernis Shape 70 CoolStart
71593XXX
Vernis Shape 100 CoolStart
71594XXX open close cold hot P-IX
DVGW
SINTEF
NFGODKENDT TIL DRIKKEVAND

Hansgrohe
Auestraße 5 – 9 · D-77761 Schiltach
Telefon +49 (0) 78 36/51-1282
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
02/2022
9.07266.01 R01
