Teleflex CS-12122-F Two-Lumen Hemodialysis Catheter for High Volume Infusions Instruction Manual

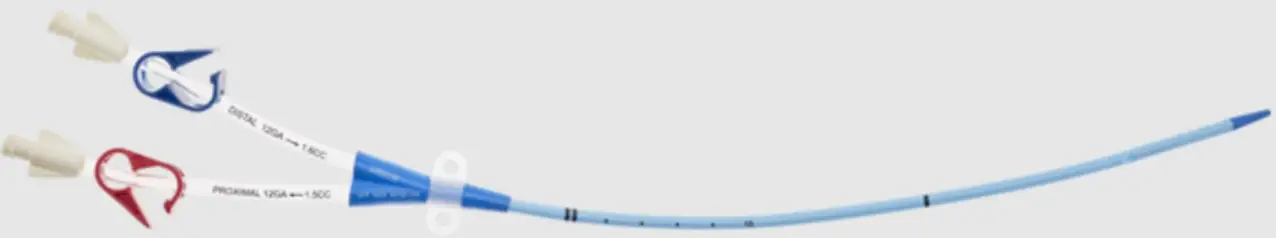

1: Two-Lumen Catheter: 12 Fr. (4.06 mm OD) x 16 cm Radiopaque Polyurethane with Blue FlexTip®, Extension Line Clamps
1: Spring-Wire Guide, Marked: .035″ (0.89 mm) dia. x 23-5/8″ (60 cm) (Straight Soft Tip on One End – “J” Tip on Other) with Arrow Advancer
1: Catheter: 18 Ga. x 2-1/2″ (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1: Pressure Transduction Probe
1: Introducer Needle: 18 Ga. x 2-1/2″ (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring- Wire Introduction Syringe
1: Tissue Dilator: 12 Fr. (4.0 mm) x 14 cm
2: Dust Cap: Non-Vented
1: Drape: 24″ x 36″ (61 cm x 91 cm)
1: Scalpel: #11 All components are CE 2797 unless otherwise noted
Rx only Warning: Read all package insert warnings, precautions, and instructions prior to use. Failure to do so may result in severe patient injury or death. www.teleflex.com/IFU Not made with natural rubber latex. Fluid path components are non-pyrogenic. Contraindications: The large-bore two-lumen catheter is not designed for long-term (≥ 30 days) hemodialysis or for use in patients with thrombosed vessels.
 Lumen | Priming Volume* (mL) | Flow Rate (mL/min) | Venous Pressure Setting†† (mmHg) |
| Distal (12 Ga.) | 1.4 | 220 370 | 220 370 |
| Proximal (12 Ga.) | 1.3 | 220 370 | 100 200 |
* Priming volumes are approximate and are done without accessories. †† Blood flow rates are approximate and were determined by varying the venous pressure setting from 100 to 200 mmHg in an in vitro experiment using blood analog solution.
EU Authorized Representative and Importer:
Teleflex Medical IDA Business and
Technology Park Dublin Road, Athlone Co. Westmeath, Ireland Contents:
Arrow International LLC Subsidiary of Teleflex Incorporated 3015 Carrington Mill Blvd. Morrisville, NC 27560 USA
