Digital Stereo Condenser Microphone
Smartmatic MTV11 Di
User Manual
Introduction
The SmartMic MTV11 Di is a digital stereo condenser microphone that supports up to 24bit/48kHz resolution for iOS devices. It utilizes a bidirectional polar pattern to provide consistent and stereo pickup from the left and right sides.
The built-in headphone output allows users to keep the intelligibility of dialogue and ensure clear and broadcast-quality sound. Powered by an iOS device, it requires no batteries and gives a direct connection to your device, open a recording/video app to go. This package includes a foam windshield and furry windscreen to attenuate wind and plosive noise.

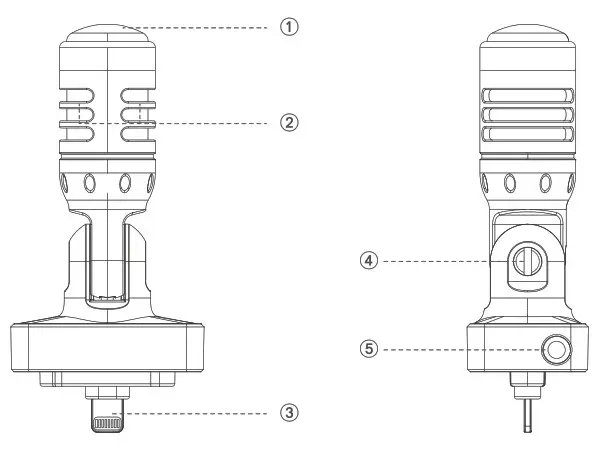

Product Structure
- Microphone Cover
- Left/Right Capsule
- Lightning Connector
- 90°Rotatable Hinge
- 3.5mm Headphone Output
Specification
| Polar Pattern | Stereo |
| Frequency Response | 30Hz-18,000Hz |
| Acoustic Principle | Condenser |
| Bit Depth | 16/24Bit |
| Sampling Rates | 44.1/48kHz |
| Signal-to-Noise Ratio | 78dBa |
| Sensitivity | -36±3dB (0d13=1V/Pa @ 1 kHz) |
| Gain | Max 30dB |
| Output | 3.5mm headphone output |
| Power Requirement | Powered by iOS device |
| Size | 85.2*40.3*25.3mm (3.4*1.6*1″) |
| Weight | 40.5g ( 1.4 oz.) |
Features
Digital stereo condenser microphone for an iOS device with a Lightning connector Supports up to 24bit/48kHz resolution 90°adjustable hinge 3.5mm headphone output for listening to real-time/playback (app dependent) Durable alloy-aluminum construction Includes foam windshield and fur windscreen
For a better recording experience, the application SmartRecorder is recommended.
http://weixin.qq.com/r/ikk1LQXEelgFrUFO9xyY
Scan the OR code and follow us!
