SmartMic MTV11 UC Digital Stereo Condenser Microphone
User Manual
Introduction
The SmartMic MTV11 UC is a digital stereo condenser microphone that supports up to 24bit/48kHz resolution for a USB-C device.
It utilizes a bidirectional polar pattern to provide consistent and stereo pickup from the left and right sides.
The built-in headphone output allows users to keep the intelligibility of dialogue and ensure clear and broadcast-quality sound.
Powered by a USB-C device, it requires no batteries and gives a direct connection to your device, open a recording/video app to go.
This package includes a foam windshield and furry windscreen to attenuate wind and plosive noise.

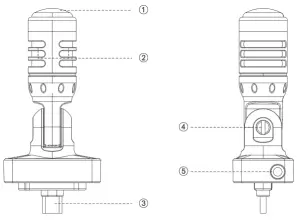

Product Structure
- Microphone Cover
- Left/Right Capsule
- USB-C Connector
- 90° Rotatable Hinge
- 3.5mm Headphone Output
specification
| Polar Pattern | Stereo |
| Frequency Response | 30Hz-18,000Hz |
| Acoustic Principle | Condenser |
| Bit Depth | 24Bit |
| Sampling Rates | 48kHz |
| Signal-to-Noise Ratio | 78dBa |
| Sensitivity | -36±3dB (OdB=1V/Pa @ 1 kHz) |
| Gain | Max 30dB |
| Output | 3.5mm headphone output |
| Power Requirement | Powered by USB-C device |
| Size | 85.2*40.3*25.3mm (3.4*1.6*1″) |
| Weight | 41g( 1.4 oz.) |
Features
Digital stereo condenser microphone for USBCevice
Supports pto24bit/48kl resolution
90°adjustable hinge
3Sen headphone output for listening to real-time. playback [app dependent)
Durable allow-aluminum construction
Includes foam windshield and fur windscreen
For better recording experience, the application
SmartRecorder is recommended
