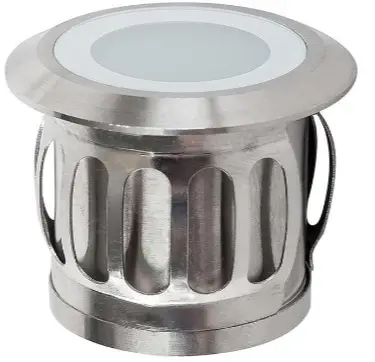

Havit Lighting Hv2826w Flame Deck Light Instruction Manual (+ PDF)

Contents hide

Product Specifications								Dimensions
Model No.	HV2826W	HV2826C	HV2826RGB	HV28261W	HV28261C		HV28261RGB
Name	Flame
Material	316 Stainless Steel
Colour	Stainless Steel
IP Rating	IP67
Input Voltage	240V – Driver \| 12v DC Fittings			12V DC
Protection Class	Driver Fitting Low Voltage			Low Voltage
Lamp Base	Built in LED			Built in LED
Lamp Wattage	6x 0.5w			1x 0.5w
Colour Temp	3000k	5500k	RGB	3000k	5500k		RGB
Lumens	6x 40lm	6x 50lm	6x 25lm	40lm	50lm		25lm
CRI	> 80
Wiring	Parallel
Dimmable	No
Warranty	3 Years Replacement*

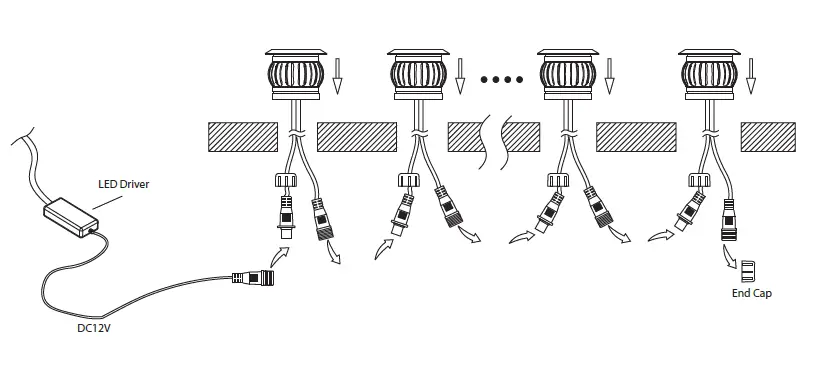

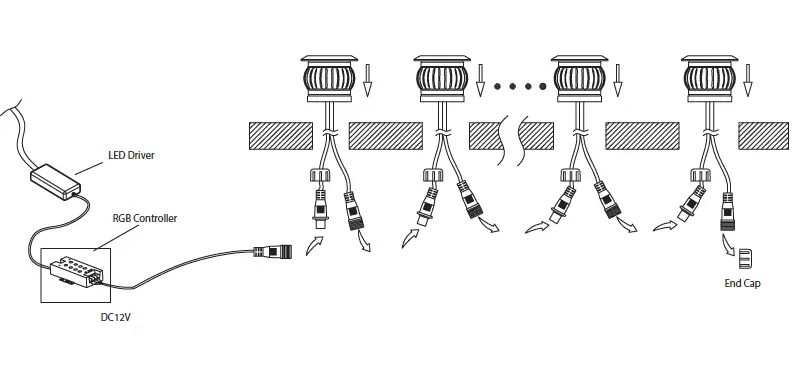

Single Colour Wiring Diagram						RGB Wiring Diagram

This product must be installed by a qualified electrician according to AS/NZS 3000.
Ensure all electrical mains are disconnected before any installation.
Modification of this product will void any warranty.
Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
When installing low voltage fittings, Voltage to fitting must be within +or- 5% of voltage required, if not within this allowance warranty will be voided.
All 316 stainless steel fittings must have regular cleaning maintenance to avoid any tea staining from forming on fitting.
Warranty does not cover Tea Staining
All o-rings and seals must be in place correctly to maintain warranty
This form may be updated at any time due to product improvements, please check online installation form for most current version.

Make sure that the electrical circuit is free of voltage (master switch off.

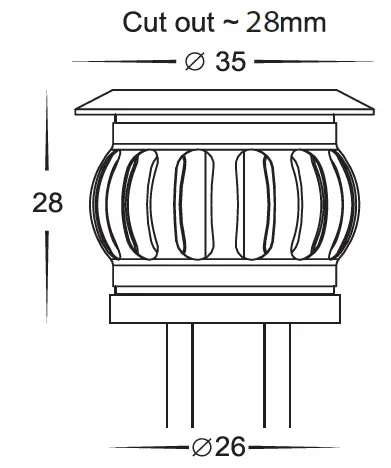

Make a hole where fitting is to be placed using dimensions provided on line drawings, making sure adequate drainage is allowed.
Using an appropriate 12v DC LED Driver or if installing kit, use LED Driver supplied.
DO NOT CONNECT LIGHT FITTING DIRECTLY TO 240V
Connect the cable by connecting male plug from fitting to 4 metre extension cable from LED Driver.
Insert fitting into hole
Repeat steps 4 + 5 until all fittings are installed
All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.

Make sure that the electrical circuit is free of voltage (master switch off )
Make a hole where fitting is to be placed using dimensions provided on line drawings, making sure adequate drainage is allowed.
Using an appropriate 12v DC LED Driver or if installing kit, use LED Driver supplied .
DO NOT CONNECT LIGHT FITTING DIRECTLY TO 240V
Connect RGB Controller to LED Driver
Connect the cable by connecting male plug from fitting to 4 metre extension cable from RGB Controller.
Insert fitting into hole
Repeat steps 5 + 6 until all fittings are installed
All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.
