Elite Deck or Inground Light Installation Instructions
Product Specifications
| Model No. | HV2881W-SLV | HV2881N-SLV | HV2881C-SLV | HV2881W-BLK | HV2881N-BLK | HV2881C-BLK | HV2882W-SLV | HV2882N-SLV | HV2882C-SLV | HV2882W-BLK | HV2882N-BLK | HV2882C-BLK |
| Name | Elite | Elite | ||||||||||
| Material | Aluminum | Aluminum | ||||||||||
| Colour | Silver | Black | Silver | Black | ||||||||
| IP Rating | IP65 | IP65 | ||||||||||
| Input Voltage | 12v DC | 12v DC | ||||||||||
| Lamp Base | Built-in LED | Built-in LED | ||||||||||
| Lamp Wattage | 1x 3w | 1x 5w | ||||||||||
| Colour Temp | 3000k | 4000k | 5500k | 3000k | 4000k | 5500k | 3000k | 4000k | 5500k | 3000k | 4000k | 5500k |
| Lumens | 240lm | 250lm | 270lm | 240lm | 250lm | 270lm | 400lm | 420lm | 450lm | 400lm | 420lm | 450lm |
| CRI | > 80 | > 80 | ||||||||||
| Wiring | Parallel | Parallel | ||||||||||
| Dimmable | Yes – Triac | Yes – Triac | ||||||||||
| Warranty | 3 Years Replacement* | 3 Years Replacement* | ||||||||||
Important Safety Issues:
- This product must be installed by a qualified electrician according to AS/NZS 3000.
- Ensure all electrical mains are disconnected before any installation.
- Modification of this product will void any warranty.
- Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
- When installing low voltage fittings, Voltage to fitting must be within +or- 5% of voltage required and cannot be installed more than 25m from LED Driver, if not within this allowance warranty will be voided.
- Aluminum and 304SS fittings must not be installed within 5km of any saltwater environments.
- All o-rings and seals must be in place correctly to maintain the warranty.
- These instructions may be updated at any time due to product improvements, Please visit the website for the most current installation instructions.

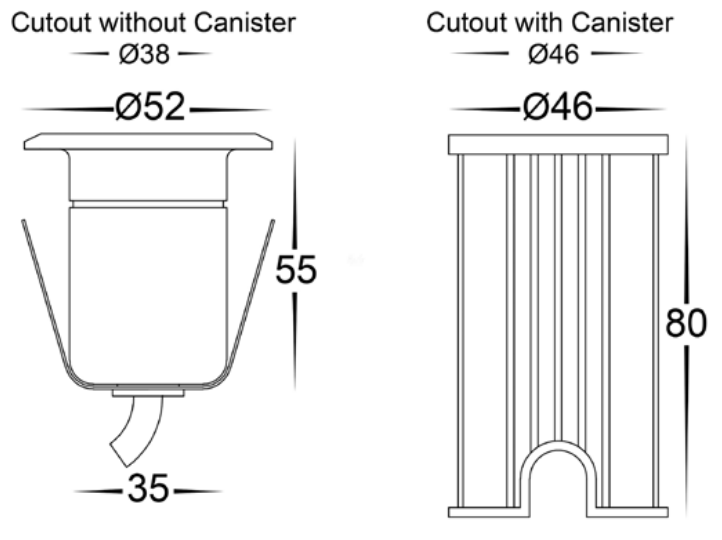

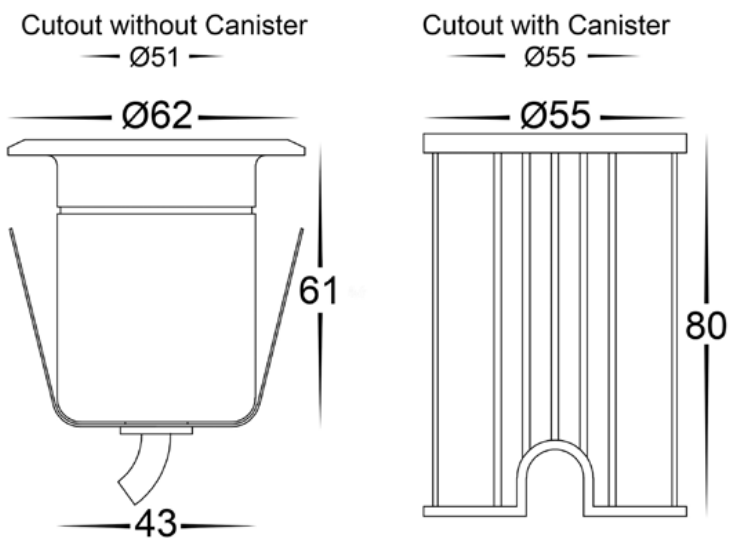

| HV2881 Dimensions | HV2882 Dimensions |
 |  |

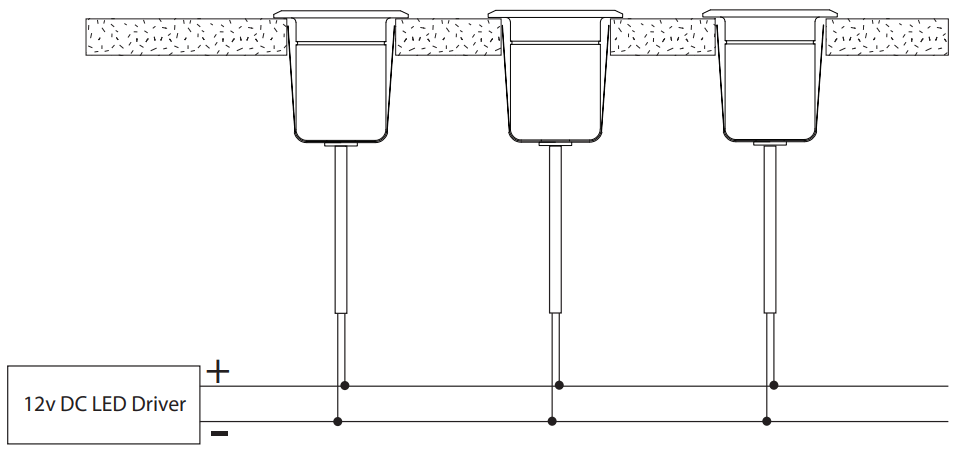

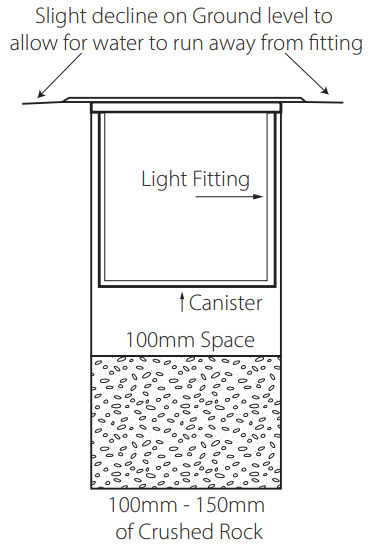

| Sample Wiring Diagram | Sample Adequate Drainage Diagram |
 |  |
Steps for Installation:
- Make sure that the electrical circuit is free of voltage (master switch off)
- Make a hole where the fitting is to be placed using dimensions provided on line drawings, making sure adequate drainage is allowed.
- Using an appropriate 12v DC LED Driver – DO NOT CONNECT LIGHT FITTING DIRECTLY TO 240V
- If installing into concrete, insert canister making sure it is flush with ground level.
- Connect the cable – If more than one fitting is installed, wiring must be done in parallel.
- Strip back the cable on both fitting and cable run and twist the positive cables together. Then connect neutral cables together
- Solder all joins using solder and either a heat gun or butane gas torch.
- Cover connections using an adhesive-lined heat shrink or gel cap to make the connection watertight. Failure to do this will void the warranty.
- Heat the heat shrink or crimp the gel cap making sure all connections are covered.
- Insert fitting into hole or canister
- Apply silicone around the edge of the fitting to prevent any water from getting inside to electrical connections.
- All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.
Must be installed by a licensed electrician
Contact Details:
143 Beauchamp Road
Matraville NSW 2036
Australia
Tel: 02 9381 8300
Fax: 02 9666 8881
Email: [email protected]
Web: www.havit.com.au
