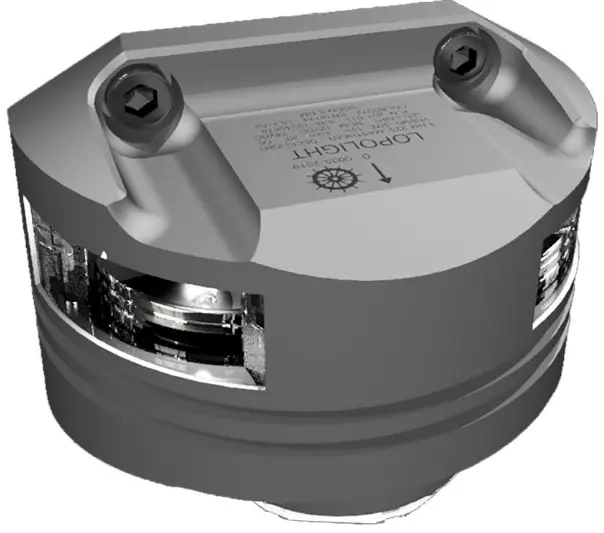

LOPOLIGHT 201-011 Series Masthead Light with Deck Light
Mounting
- Go to www.lopolight.com or use the QR code to get to the ‘products’ section where the datasheet that includes the dimensional drawing is found.
- For directional lights the alignment to the vessel centerline is very important.

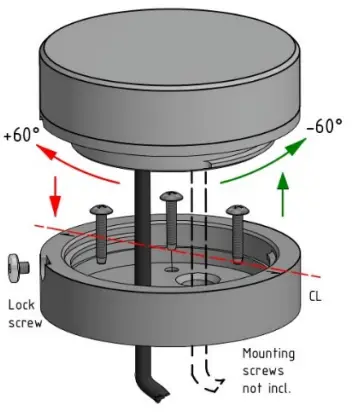

- Horizontally mounted lights are opened/closed as illustrated, please ensure lock screw engages correctly.
Connecting power
- Supply Voltage: Any DC voltage between 10 and 32 volts. (12 and 24 Volt systems)

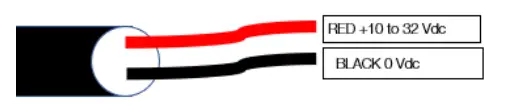

- Cabled lights: Red wire: Positive (+) Black wire: Negative ( – ). (Double light: 2 cables, same colour coding)
- Light with green connector:
- Single light: Pin 1: Positive (+) Pin 2: Negative ( – ) (pin 3-5: not used) Double light:
- Primary light: Pin 1: Positive (+) Pin 2: Negative ( – )
- Secondary light: Pin 4: Positive (+) Pin 5: Negative ( – ) (pin 3 not used)
- Recommended fuse or circuit breaker: Less than 2A (slow).
- Grounding: The navigation light housing should not be connected to ground (Earth). (We recommend that you connect the cable screen to ground (Earth)).
- Cabling: Avoid chafe and route it away from sources of heat and large inductive fields such as electric motors.
Cleaning your product:
- Wipe off your product with a normal detergent, on a damp cloth DO NOT use alcohol or thinner for cleaning your light – this could damage the lens.
Troubleshooting
If the light does not function:
- Check that you have a supply Voltage between 10 and 32 Volt DC.
- Check that the polarity is right (you will not damage the Lopolight by accidentally wiring the polarity wrong).
End of life signaling:
Your Lopolight product has a microprocessor inside that ensures that thee light has required intensity over a 50.000-hour projected lifetime. The light will signal to you when it is getting to the end of its useful life. The following signals can be observed:
- All OK: 5 seconds after turning on the light it will go dark for 0,1 second and turn on again. This is just a check for you to assure that the microprocessor is working.
- Less than 2000 working hours left: The dark period is extended to 2 seconds: you should change the light at your next service within the next 12 months.
- Light Expired: The dark period is extended to 5 seconds: You should change the light immediately. (The light will still be working, even in the expired state)
Warranty
- This product is covered by our 5-year limited warranty.
- If you want to claim a warranty for your product, please fill in the form at www.lopolight.com/service
Approvals:
The light in this package is type approved to the following standards:
- EN-14744, UL-1104, COLREG72, IEC 60945 Recognized by the following authorities:
- IMO, MED (EU-wheelmark), USCG
