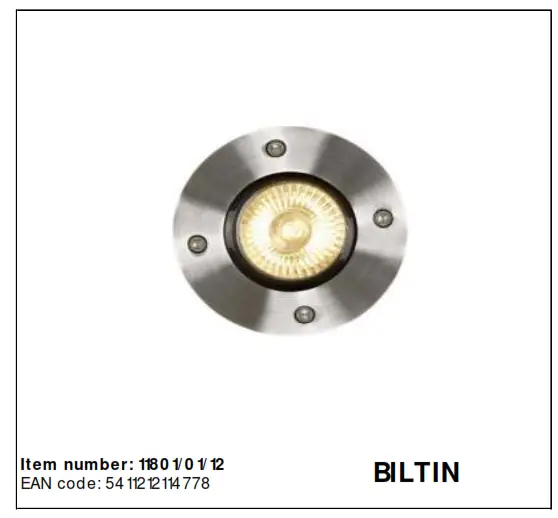

11801 Biltin Outdoor Deck Light
INSTALLATION MANUAL
Thank you for purchasing a Lucide original!
This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting.
Welcome to the community of #illuminatesyourworld
| DISCOVER OUR COLLECTION! | CURIOUS ABOUT OUR BRAND? | #ILLUMINATESYOURWORLD |
 |  |  |
| Visit our website and discover our entire collection | Our brand video gives you a glimpse behind the scenes at Lucide | Take a look at how others around the world use Lucide products |
Follow us for the latest lighting trends!
RECOMMENDED LUCIDE
LIGHT SOURCE 4 90 0 8/ 0 5/ 60
Dimmable: No
Included: No
General
Dimensions LxW xH: 10 ,8cm x 10 ,8cm x 0 ,3cm
Mounting diameter: 10 ,40 cm
Mounting depth: 12,50 cm
Main material: Aluminum
Color: Sat in Chrom
Style: Modern
Shape: Round
Weight: 0 ,75kg
Specifications
Dimmable: Yes
Light direction: Uplight
Adjustable in height: Not In Height Adjustable
Directional: Not Direct ional
Cable: Yes, Cable On Product
Cable length: 10 0 cm
Sensor: Without Sensor
Control: Light Switch Control
Power supply: Adapter/ Power Grid
IP-Class: 67
Electric Class: 1
Number of light sources: 1
Lamp socket: GU10
Maximum wattage: 35W
Power requirements: 220 -240 V~50 Hz
Warranty: 2 Years

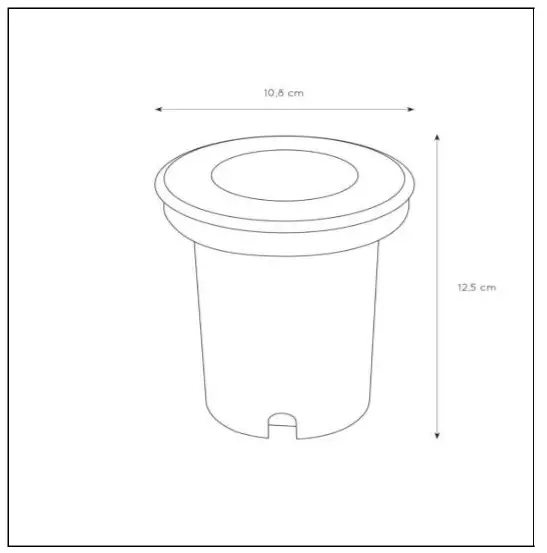

TECHNICAL DRAWING & DIMENSIONS
Item number: 1180 1/ 0 1/ 12
EAN code: 5411212114778
The explanation of the IP ratings can be found in the safety instructions.

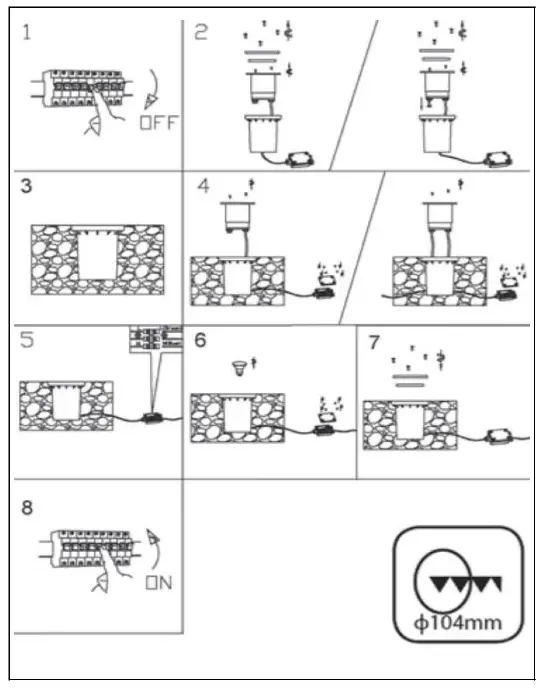

INSTALLATION DRAWING SPECIFICATIONS
Item number: 1180 1/ 0 1/ 12
EAN code: 5411212114778
Safety Instructions for outdoor items
Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture. The manufacturer does not accept any responsibility for damage caused by improper installation and service. Installation should always be done by a qualified electrician. Always isolate the power before commencing installation, maintenance or repair. In case of doubts, please contact a qualified electrician. Please pay attention to locations where the item can be installed (indoor, outdoor, and bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products. Always respect the minimal distance (indicated on the light) to inflammable products. During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician. This is to avoid all risks. Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).
Explanation of the symbols that can appear on the fixture

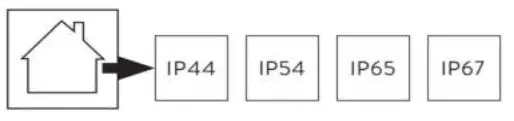

 | This item is only suitable for indoor use, exclusive bathroom (except if a higher IP degree permits that the item can be used in the bathroom). |
 | Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with this symbol indicates a separate collection of such equipment must be returned to a municipal waste collection point. |
 | Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol). |
 | Class II: The item is double insulated and must not be connected to the earth wire. |
 | Class III: The item is only suitable for lower voltage supply and must not be connected to the earth wire. |
 | IP 44 : Splashproof |
 | IP 54 : Dust protected and splashproof |
 | IP 65 : Dust-tight and protected against water jets |
 | IP 67 : Dust-proof and protected against immersion for 30 minutes |
 | If the protection glass is damaged or broken, it needs to be replaced immediately. |
 | Please respect the minimum distance from the bulb to inflammable objects. |
Warranty declaration:
Lucide NV warrants that the products supplied will be free from defects in material and workmanship for a period of 2 years from the date of purchase by the end user if the item is installed and maintained properly as mentioned in the user manual.
Exclusions for the warranty:
- Broken glass parts of the fixture will only be replaced within 14 days after purchase by the end user.
- Normal wear and tear, discoloring as a result of normal use.
- Damage is caused by external causes like fire, water, wrong use/ installation or maintenance of the product.
For warranty claims the customer needs to hand over the defective fixture/part and the original purchase ticket.
Further explanations can be found on our website.
www.lucide.com
LUCIDE NV
LUCIDE NV BISSCHOPPENHOFLAAN 145, 2100 DEURNE, BELGIUM
[email protected]
tel: +32(0)3 366 22 04
www.lucide.com
