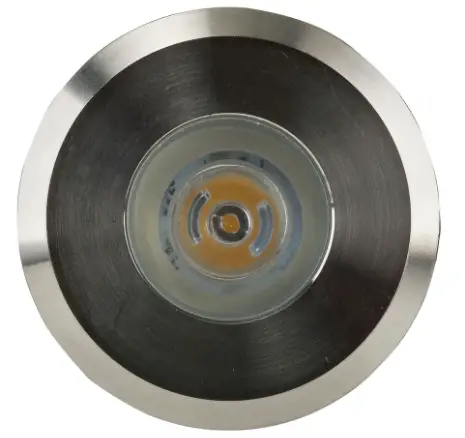

HAVIT HV2892W-SS316 Mini Ollo Inground or Deck Light
Product Specifications
| Model No. | HV2892W-SS316 | HV2892C-SS316 | HV2892W-BLK | HV2892C-BLK | HV2892W-CP | HV2892C-CP |
| Name | Mini Ollo | |||||
| Material | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel + Copper | |||
| Colour | Stainless Steel | Black Cover with Stainless Steel body | Copper Cover with Stainless Steel body | |||
| IP Rating | IP67 | |||||
| Input Voltage | 12v DC | |||||
| Lamp Base | Built in LED | |||||
| Lamp Wattage | 1x 1w | |||||
| Colour Temp | 3000k | 5500k | 3000k | 5500k | 3000k | 5500k |
| Lumens | 80lm | 90lm | 80lm | 90lm | 80lm | 90lm |
| CRI | > 80 | |||||
| Wiring | Parallel | |||||
| Dimmable | No | |||||
| Warranty | 3 Years Replacement* | |||||

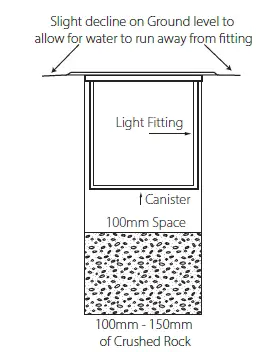

Adequate Drainage

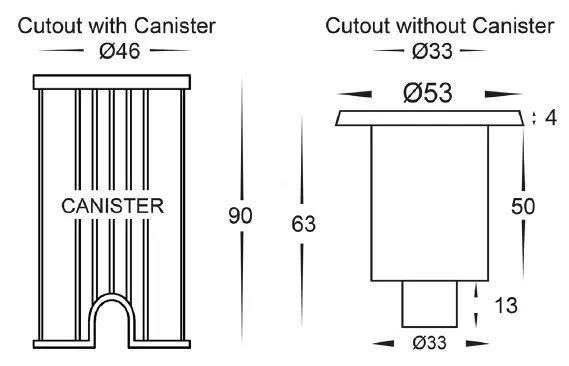

Dimensions

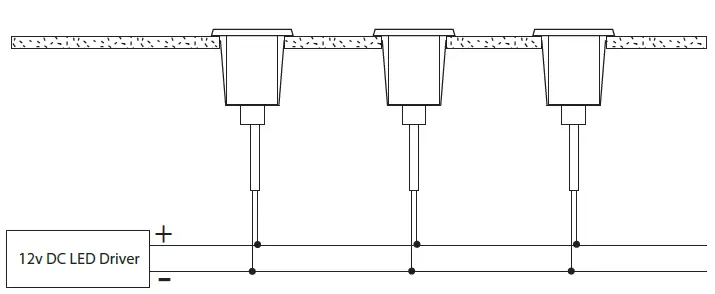

Sample Wiring Diagram
Important Safety Issues
Important Safety Issues- This product must be installed by a qualified electrician according to AS/NZS 3000.
- Ensure all electrical mains are disconnected before any installation.
- Modification of this product will void any warranty.
- Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
- When installing low voltage fittings, Voltage to fitting must be within +or- 5% of voltage required and cannot be installed more than 25m from LED Driver, if not within this allowance warranty will be voided.
- All 316 stainless steel fittings must have regular cleaning maintenance to avoid any tea staining from forming on fitting. (Warranty does not cover Tea Staining)
- When installing copper fittings, gloves must be worn to avoid any oils transferring to fitting.
- All o-rings and seals must be in place correctly to maintain warranty.
- These instructions may be updated at any time due to product improvements, Please visit website for most current installation instructions.
Steps for Installation
- Make sure that the electrical circuit is free of voltage (master switch off)
- Make a hole where fitting is to be placed using dimensions provided on line drawings,
- Using an appropriate 12v DC LED Driver – DO NOT CONNECT LIGHT FITTING DIRECTLY TO 240V
- If installing into concrete, insert canister making sure it is flush with wall.
- Connect the cable – If more than one fitting is installed, wiring must be done in parallel.
- Strip back the cable on both fitting and cable run and twist the positive cables together. Then connect neutral cables together
- Solder all joins using solder and either a heat gun or butane gas torch.
- Cover connections using an adhesive-lined heat shrink or gel cap to make the connection watertight. Failure to do this will void the warranty.
- Heat the heat shrink or crimp the gel cap making sure all connections are covered.
- Insert fitting into hole or canister
- Apply silicon around edge of fitting to prevent any water from getting inside to electrical connections.
- All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.
Must be installed by a licensed electrician12
