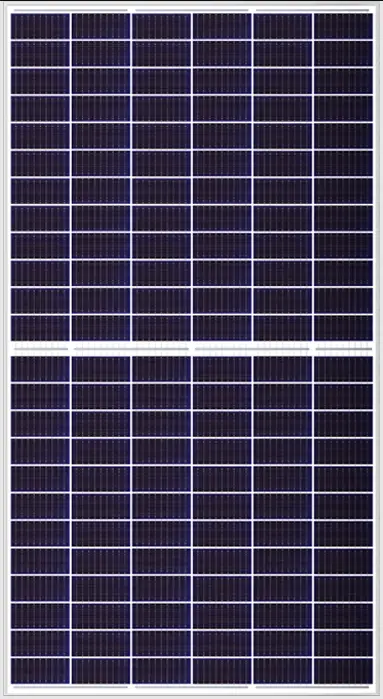

CanadianSolar CS3W-425 BiHiKu Super High Power Bifacial Mono PERC Module
MORE POWER
- Up to 30% more power from the back side
- 24 % higher front side power than conventional modules
- Low NMOT: 41 ± 3 °C Low temperature coefficient (Pmax): -0.35 % I °C
- Better shading tolerance
MORE RELIABLE
Lower internal current, lower hot spot temperature
Minimizes micro-crack impacts
Heavy snow load up to 5400 Pa, wind load up to 3600 Pa*
Warranty
linear power output warranty
enhanced product warranty on materials and workmanship
According to the applicable Canadian Solar Limited Warranty Statement.
MANAGEMENT SYSTEM CERTIFICATES
- ISO 9001: 2015/Quality management system
- ISO 14001: 2015/Standards for environmental management system
- OHSAS 18001: 2007/International standards for occupational health & safety
PRODUCT CERTIFICATES
- EC 61215/IEC 61730: VDE/CE/MCS/IN METRO
- UL 61730: CSA/EC 61701
- ED2: VDE /EC
- 62716: VDE/EC
- 60068-2-68: SGS Take-e-way
As there are different certification requirements In different markets, please contact your local Canadian Solar sales representative for the specific certificates applicable to the products in the region in which the products are to be used.
CANADIAN SOLAR (USA), INC. is committed to providing high-quality solar products, solar system solutions, and services to customers around the world. No. 1 module supplier for quality and performance/price ratio in IHS Module Customer Insight Survey. As a leading PV project developer and manufacturer of solar modules with over 46 GW deployed around the world since 2001.
Support
CANADIAN SOLAR (USA), INC. 3000 Oak Road, Suite 400, Walnut Creek, CA 94597, USA I www.canadiansolar.com/na J [email protected]

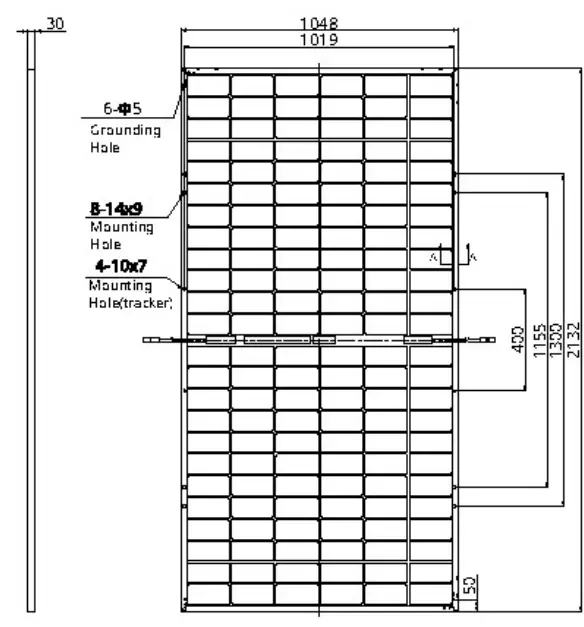

ENGINEERING DRAWING (mm)
Rear View

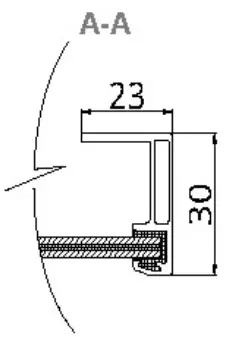

Frame Cross Section

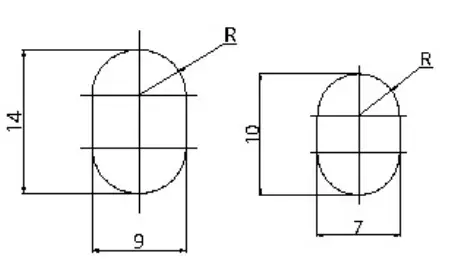

Mounting Hole

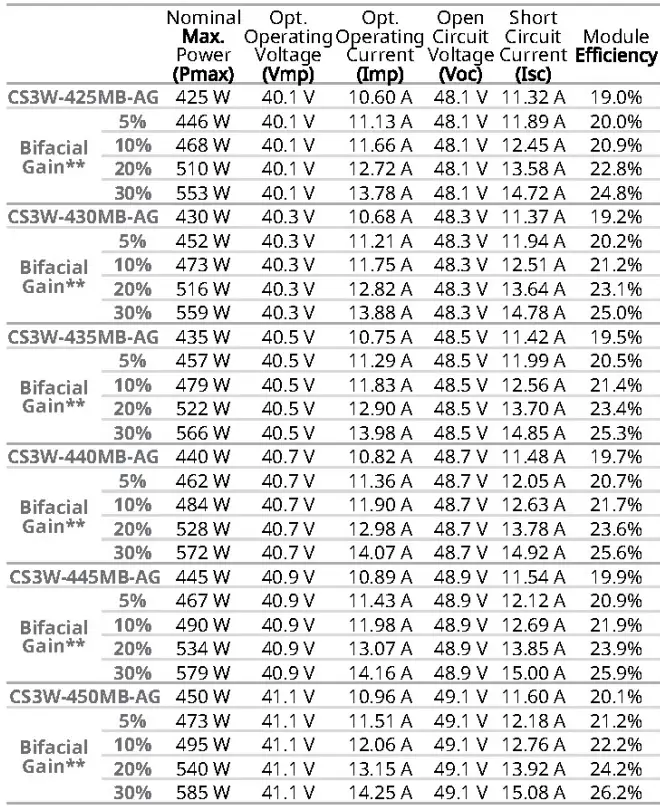

ELECTRICAL DATA STC
Under Standard Test Conditions (STC) of irradiance of 1000 W/m: spectrum AM 1.5, and cell temperature of 25″‘C.
Bifacial Gain: The additional gain from the back side compared to the power of the front side at the standard test condition. It depends on mounting (structure, height. tilt angle, etc.) and albedo of the ground.

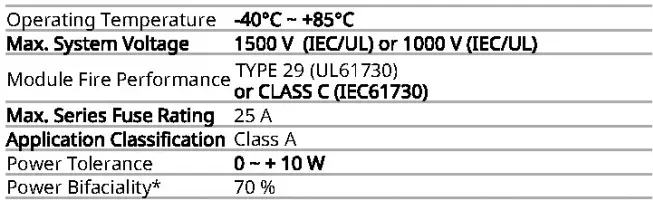

ELECTRICAL DATA
- Power Brfaciality= Pmaxe Pmaxpan both Pma%and Pmaxont are tested under STC, Bifaciality Tolerance: t 5 %
- The specifications and key features contained in this datasheet may deviate slightly from our actual products due to the ongoing innovation and product enhancement. Canadian Solar Inc. reserves the right to make the necessary adjustments to the information described herein at any time without further notice.
- Please be kindly advised that PV modules should be handled and Installed by qualified people
who have professional skills and please carefully read the safety and installation instructions before using our PV modules.

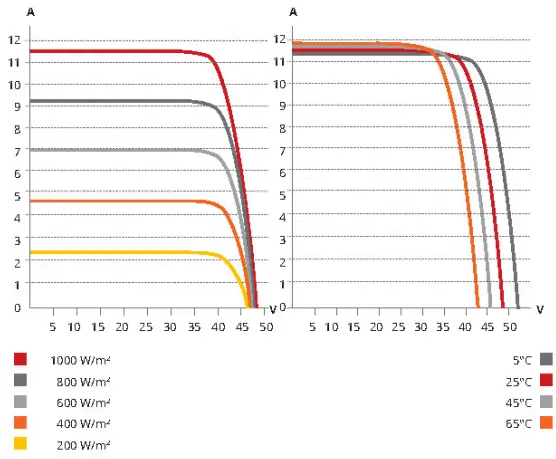

CS3W-435MB-AG / 1-V CURVES

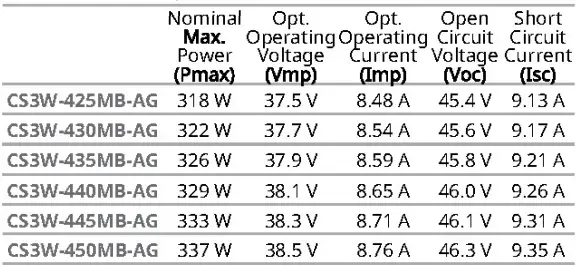

ELECTRICAL DATA NMOT
MECHANICAL DATA

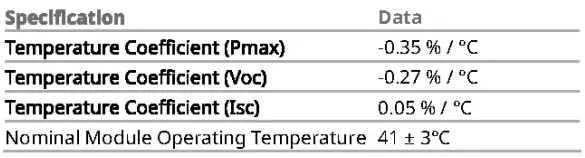

TEMPERATURE CHARACTERISTICS
