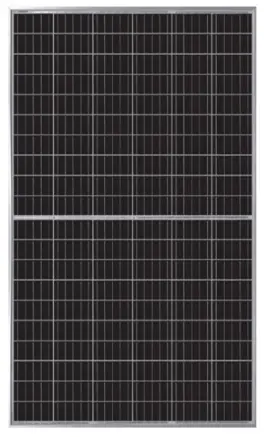

MONO PERC
108-cell MODULE
STAR SERIES
EG-415M54-HLV
395~415W
0~3%POSITIVE TOLERANCE
KEY FEATURES
 | Mbb cell design Mt Busbar cell brings lower resisitance and increased Busbar reflectance ensures higher power output |
 | High compatibility Innovative 182mm big cell, small size model design, compatible to variance Roof-top and installation methodology |
 | High Reliability Strict in-house testing in PV Lab which is CNAS approved & TUV /VDE certified |
 | Excellent Low-light Performance Advanced solar celland glass surface texturing technology allows fo performance in low-light environments rexcellent |
 | Highly Mechanical Load Design Certified to withstand:5400Pa snow load and 2400Pa wind load |
 | PIP Resistant Excellent PID resistance performance optimized by unique structural design |

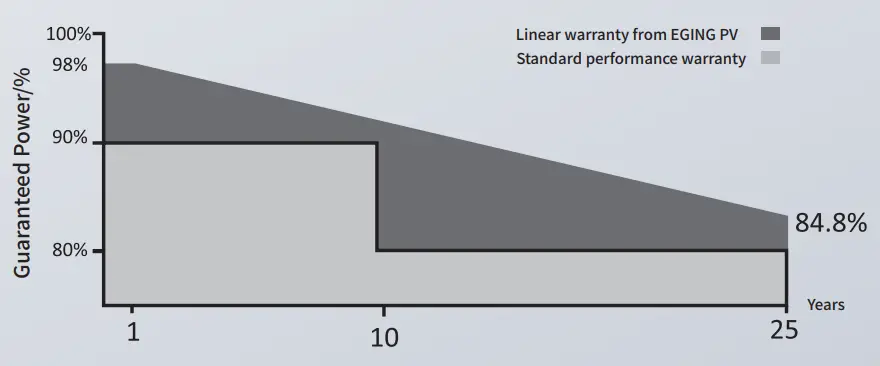

LINEAR PERFORMANCE WARRANTY
12 Year Product Warranty
25 Year Linear Power Warranty
As a BloombergNEF Tier 1 and global leading manufacturer since 1998,EGING PV is committed to supplying reliable and durable PV products to customers to creat together a greener planet.

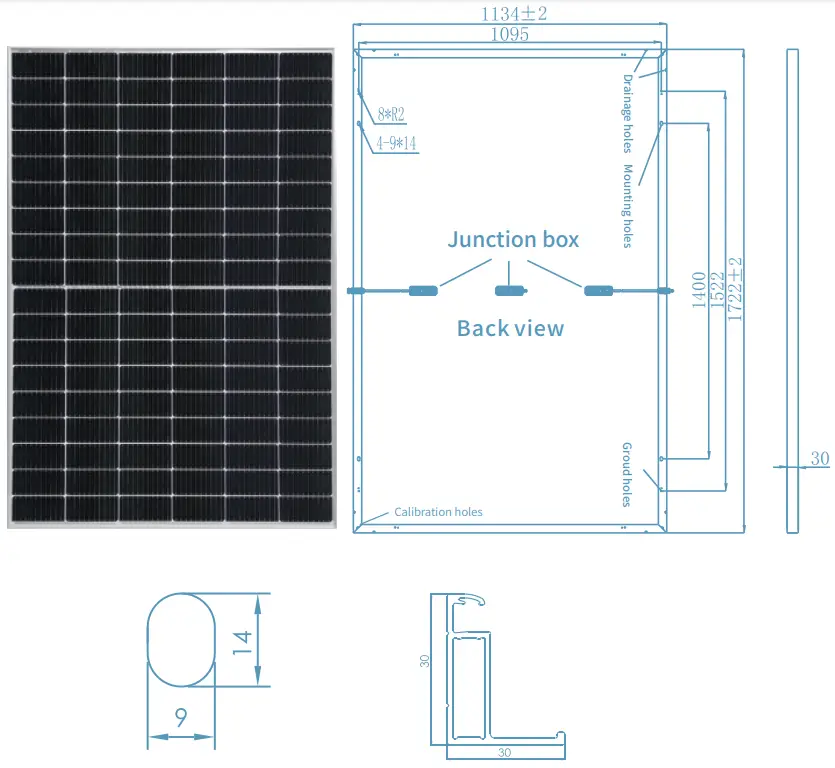

Engineering Drawings

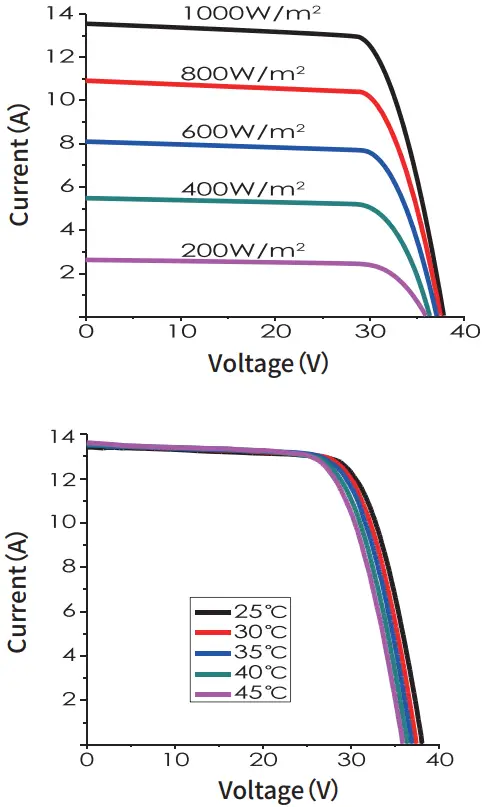

I-V Curves
Packing Configuration
| Pieces per pallet | 36 |
| Size of packing (mm) | 1790*1140*1275 |
| Weight of packing (kg) | 772 |
| Pieces per container | 936 |
| Size of container | 40°HC |
Electrical Characteristics
| Power level | 395 | 400 | 405 | 410 | 415 |
| Pmax (W) | 395 | 400 | 405 | 410 | 415 |
| Vimp (V) | 31.03 | 31.28 | 31.52 | 31.76 | 32.00 |
| 1mp (A) | 12.73 | 12.79 | 12.85 | 12.91 | 12.97 |
| Voc(V) | 36.93 | 37.18 | 37.42 | 37.66 | 37.90 |
| sc(A) | 13.48 | 13.54 | 13.60 | 13.66 | 13.72 |
| Module efficiency (%) | 20.22 | 20.48 | 20.74 | 20.99 | 21.25 |
| Maximum system voltage(V) | 1500. | ||||
| Fuse Rating (A) | 25 | ||||
| Temperature coefficient PMax(%/°c) | -0.350 | ||||
| Temperature coeffcient Isc (%/°C) | 0.05 | ||||
| Temperature coeffcient Voc (%/°C) | -0.275 |
STC:Irradiance 1000W/m2 module temperature 25°C, AM=L5
Working Characteristics
| Powerlevel | 395 | 400 | 405 | 410 | 415 |
| Pmax(W) | 200 | 303 | 307 | 310 | 313 |
| Vmp(v) | 28.70 | 28.94 | 29.19 | 29.36 | 29.51 |
| Imp (A) | 10.42 | 10.47 | 10.52 | 10.56 | 10.61 |
| Voc(V) | 34.35 | 34.58 | 34.81 | 35.03 | 35.18 |
| Isc(A) | 11.03 | 11.08 | 11.13 | 11.18 | 11.23 |
| Power tolerance (%) | 0∼+3 | ||||
| NOCT (C) | 44±2 |
NOCT:Conditionsirradiance 800W/m2 ambient temperature 20°C, wind speed 1m/s
Mechanical Characteristics
| Number of cells | 108pcs. |
| Size of cell (mm) | 182*91 |
| Type of cell | Mono |
| Thickness of glass (mm) | 3.2 |
| Type of frame | Anodized aluminum alloy |
| Junction box | IP68 |
| Size of module (mm) | 1722*1134*30 |
| Weight (kg) | 20.2 |
| Cables/connectors | 4mm2, MC4 compatible |
| Length of Cabel | Portrait:+300mm/-300mm |
Maximum Ratings
| Operating Temperature(°C) | ∼40∼85 |
| Operating humidity(“C) | 5∼85 |
| Allowable Hail Load | 25mm ice-ball with velocity of 23m/s |
Revised in July 2022 1st Edition
CAUTION:Al rights reserved by EGING PV.
Specifications included i this datasheet are subject to change without notice.
