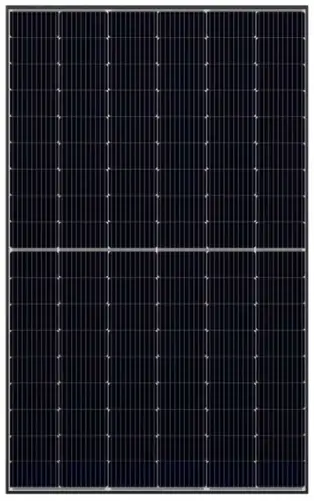

UKSOL 410W Black Half Cell 108 Cell Monocrystalline Solar Module
Product Information
The ALL BLACK TIGO HOaPlfT-CIMeIlSl ED 410W BLACK is a high-power output half-cell 108-cell monocrystalline solar module. It has a module efficiency of 21.1% and uses MBB technology for improved light absorption. The module has low hot-spot risk due to
its 1/2 current that reduces the hot-spot temperature and excellent loading capability with 2400Pa wind loads, 5400Pa snow loads, and 8000Pa extra support. It has a low NMOT of as low as 43, which improves power generation efficiency. The product comes with a materials and workmanship warranty of 12 years and a linear power warranty of 30 years.
Product Quality Features
- MBB Technology
- Improved light absorption
- Low Hot-spot Risk
- Excellent loading capability
- Low NMOT
- Half Cell, MBB Technology
Product Advantages
- Higher power output
- Improved light absorption
- Low hot-spot risk
- Reliable soldering technology
- Long materials and workmanship warranty
- Long linear power warranty
Electrical Characteristics
- Nominal power: 410W
- Tolerance: Pmpp
- Area of the module: N/A
- Module efficiency: 21.1%
- Isc: 11.16 A
- Voc: 35.23 V
- Impp: 10.43 A
- Vmpp: 29.72 A
- Maximum voltage: N/A
- Maximum series fuse rating: 25 A
- NOCT: 800 W/m, ambient temp 20c, AM 1.5
- Nominal power: Pmax Isc Voc Impp Vmpp
- 310 W 11.16 A 35.23 V 10.43 A 29.72 A
Mechanical Characteristics
- Frame: Black anodized aluminum
- Connection box: Frontal
- Solar cells: 108 (2 x 54) cells monocrystalline silicon
- Weight, dimensions, and packaging: 20.5 Kg | 1724 x 1134 x 30mm (+/-1%)
- Packing configuration: 20ft container – 216 qty, 40ft – 936 qty
Procurement Support and Standards
The product is only available at Smith Bros (Caer Conan) Wholesale Ltd. It has low-risk British technical and always grades British quality.
A Cells
The product has no information about A cells.
Product Usage Instructions
- Install the ALL BLACK TIGO HOaPlfT-CIMeIlSl ED 410W BLACK in the location that receives maximum sunlight.
- Connect the module to an inverter using the appropriate cables and connectors.
- Ensure that the module is properly grounded to avoid electrical hazards.
- Monitor the module’s performance regularly to ensure that it is generating the expected power output.
- In case of any issues, contact Smith Bros (Caer Conan) Wholesale Ltd for support.
PRODUCT QUALITY FEATURES
- Tigo TS4-A-O unit fitted to reduce the effects of shading
- +5w positive power tolerance
- Fire resistant to UNI9177, Fire Class I
- 30-year British performance warranty. UK service & support.
- 108-cell MBB technology. Ultra-high power wafer.
PRODUCT ADVANTAGES
MBB Technology
Improved light absorption
Low Hot-spot Risk
1/2 current, reducing the hot spot temperature
Excellent loading capability
2400Pa wind loads, 5400Pa snow loads, 8000Pa extra support
Low NMOT
As low as 43℃, improving the power generation efficiency
Half Cell, MBB Technology
Series-then-parallel cell connection design, more reliable soldering technology
ELECTRICAL CHARACTERISTICS
| ELECTRICAL CHARACTERISTICS | ||
| Standard – Black | 410w |
|
| Nominal power, Pmpp | 410 Wp | |
| Tolerance, Pmpp | +5 W | |
| Area of the module | 1.96 m | |
| Module efficiency | 21.00 % | |
| Isc | 13.95 A | |
| Voc | 37.32 V | |
| Impp | 13.04 A | |
| Vmpp | 31.45 V | |
| Maximum voltage | 1500 V | |
| α Isc | 0.045 % / ºC | |
| β Voc | – 0.275 % / ºC | |
| g Pmax | – 0.35 % / ºC | |
| Temperature range | – 40ºC ~ +85ºC | |
| NOCT. Nominal Operating Cell Temperature | 45 ± 2ºC | |
| Maximum series fuse rating | 25 A | |
NOTE: Read the instruction manual of this product and follow the indications STC. Values are valid for 1000W/m2, AM 1.5, and cell temperature of 25ºC. Measurement tolerance +/-3% (AAA Solar simulation -IEC 60.904-9-). All the information of this brochure may be amended without notice by UKSOL.
NOCT: 800 W/m, ambient temp 20c, AM 1.5
| NOCT: 800 W/m, ambient temp 20c, AM 1.5 | |
| Nominal power. Pmax | 310 W |
| Isc | 11.16 A |
| Voc | 35.23 V |
| Impp | 10.43 A |
| Vmpp | 29.72 A |

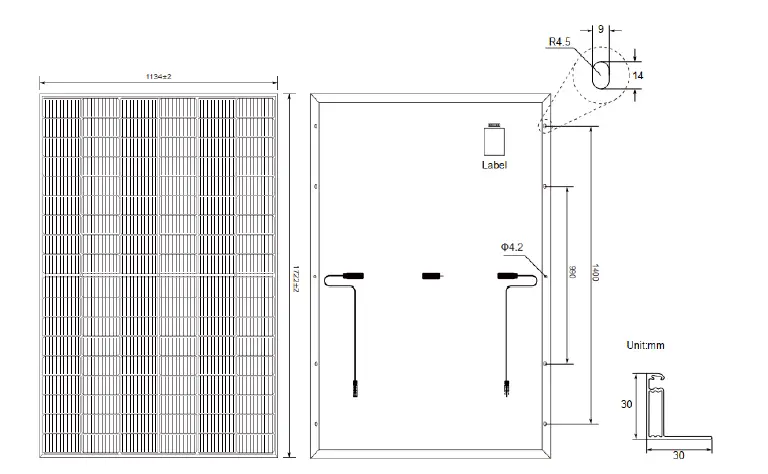

MECHANICAL CHARACTERISTICS
| MECHANICAL CHARACTERISTICS | |
| Frame | Black anodized aluminium Robust and resistant to corrosion Built-in plug. Tigo TS4-A-O unit built-in. |
| Connection box | Sealed, robust and wide for heat dissipation IP68 according to IEC 60529 Diodes by-pass built-in (3/6) for protection of the partial shading Connector MC4 or compatible Cables 1000 mm (±30cm) in length and 4mm2 section Fire Class I approval (UNI 9177) |
| Frontal | 3.2 mm thick tempered glass with high strength and ARC Textured, extra-clear with low iron content |
| Solar cells | 108 (2 x 54) cells of monocrystalline silicon |
| Weight, dimensions and packaging | 20.5 Kg | 1724 x 1134 x 30mm (+/-1%) 20ft container: 216 qty 40ft: 936 qty |
Only available at
Smith Bros (Caer Conan) Wholesale UKSOL and the UKSOL logo are registered trademarks of UKSOL Ltd. Ltd T: 01302 366 922 E: [email protected]
