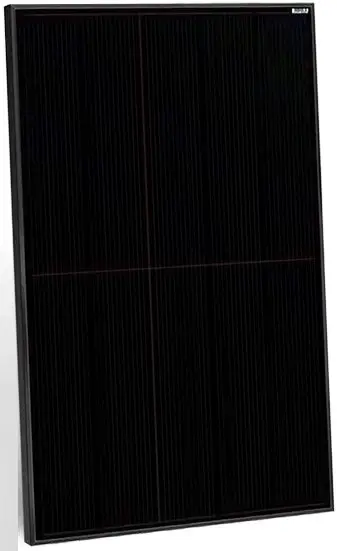

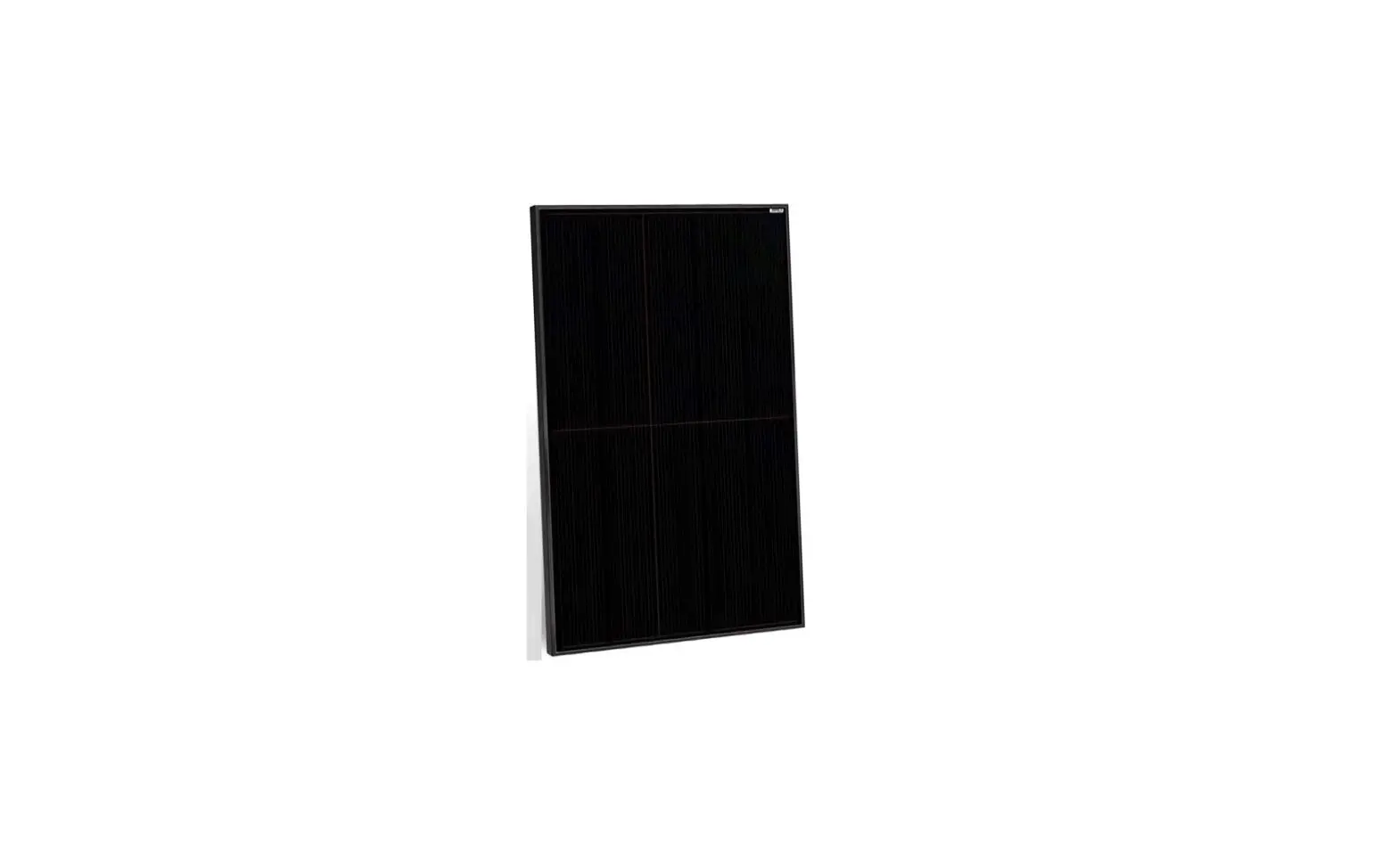

ELERIX 410Wp Solar Panel Mono Half Cut Crystalline Solar Module User Manual
Key Features
Excellent module efficiency up to: 18.42%
IP68 junction box for long-term weather endurance
Heavy snow load up to 5400 Pa, wind load up to 3600 Pa
PID: Selected material and stringent quality system ensure PID free
Applicable to harsh environment of deserts, farmlands and seasides
Much lower risk of Hot Spot
Warranty

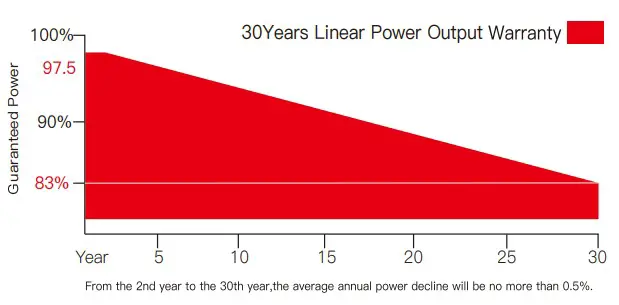

Linear power output warranty
- 12 years minimum 92% power output
- 30 years minimum 83% power output
Product warranty on materials and workmanship According to the applicable ELERIX Limited Warranty Statement
Certification
Dimension

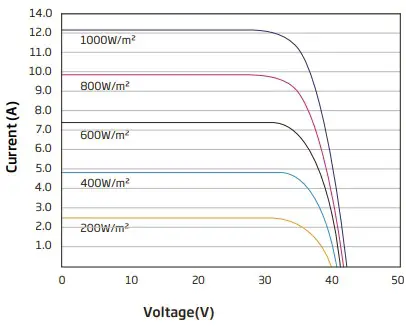

I-V CURVES OF PV MODULE(410 W)
Specifications
| Electrical Specification | EXS-410MHC-B |
| Maximum Power (Pmax) | 410W |
| Module Efficiency | 21.40% |
| Open Circuit Voltage (Voc) | 41.60V |
| Short Circuit Current (Isc) | 12.40A |
| Maximum Power Voltage (Vmp) | 34.60V |
| Maximum Power Current (Imp) | 11.84A |
| Maximum System Voltage | ICE 1000 VDC |
STC: Irradiance: 100W/m2 , Module Tempreature: 25°C, Air Mass: 1.5
| Electrical DATA@NOCT | EXS-410MHC-B |
| Pmax [W] | 410 |
| Vm [V] | 32.80 |
| Imp [A] | 9.45 |
| Voc [V] | 39.10 |
| Isc [A] | 10.00 |
NOCT: Irradiance: 800W/m2, Ambient Temperature: 20°C, Air Mass: 1.5, Wind Speed: 1m/s
| Mechanical Specification | |
| Solar Cell Type | Monocrystalline 210‘’ |
| Number of Cells | 120pcs /3×40 |
| Module Size | 1760x1096x30mm |
| Weight | 21.0kg |
| Glass | 3.2mm tempered glass |
| Back Sheet | Black |
| Frame | Anodized aluminium alloy, silver or black |
| Junction Box | IP68,three diodes |
| Quantity of Diodes | 3pcs |
| Cable | 4.0mm2 1000mm |
| Connector | MC4 Compatible |
| Wind/Snow Load | 2400pa/5400pa |
| Packaging Configuration | |
| Modules per box | 30/31/36 pieces |
| Number per 20GP | 276 pieces |
| Modules per 40’ HQ | 806 pieces |
| Temperature Characteristic | |
| NMOT (Nominal Module Operating Temperature) | 45°C (±2°C) |
| Temperature Coefficient of PMAX | – 0.36%/°C |
| Temperature Coefficient of UOC | – 0.26%/°C |
| Temperature Coefficient of ISC | 0.04%/°C |
| Maximum Ratings | |
| Operational Temperature | 40 to +85°C |
| Maximum System Voltage | 1500V DC (IEC) |
| Max Series Fuse Rating | 30A |
| Protection Class | Class II |
| Snow Load | 5400 Pa |
| Wind Load | 2400 Pa |
| Hailstone Test | 25mm Hailstone at the speed of 23m/s |
design load with safety factor 1.5 (DO NOT connect Fuse in Combiner Box with two or more strings in parallen connection)
Are you interested in more details?
Visit our online presentation.
PRODUCT WEBPAGE
