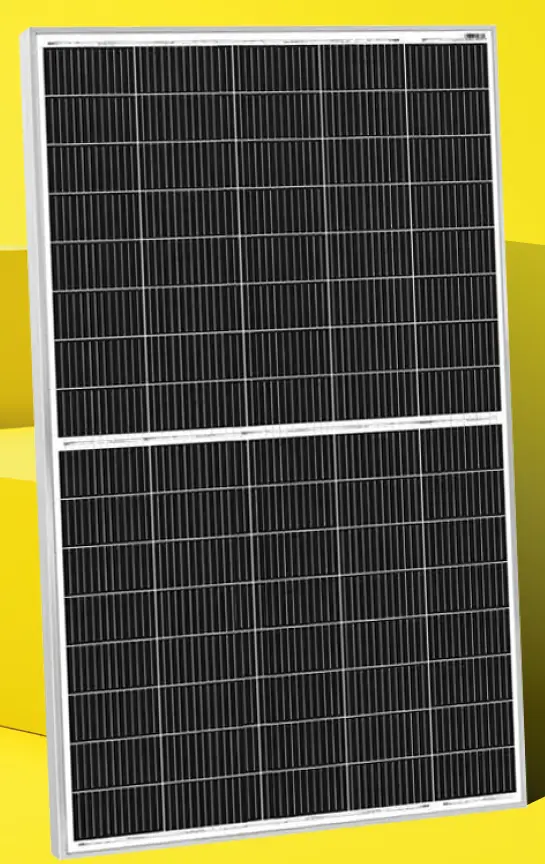

ELERIX EXS-410MHC-W Solar Panel Mono Half Cut 410Wp 120 cells
Key Features
- Excellent module efficiency up to: 18.42%
- IP68 junction box for long-term weather endurance
- Heavy snow load up to 5400 Pa, wind load up to 3600 Pa
- PID: Selected material and stringent quality system ensure PID free
- Applicable to harsh environment of deserts, farmlands and seasides
- Much lower risk of Hot Spot
Warranty

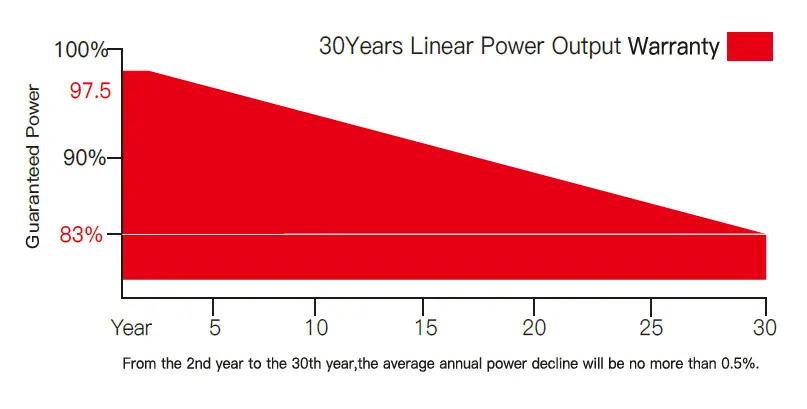

Linear power output warranty
- 12 years minimum 92% power output
- 30 years minimum 83% power output
Product warranty on materials and workmanship According to the applicable ELERIX Limited Warranty Statement

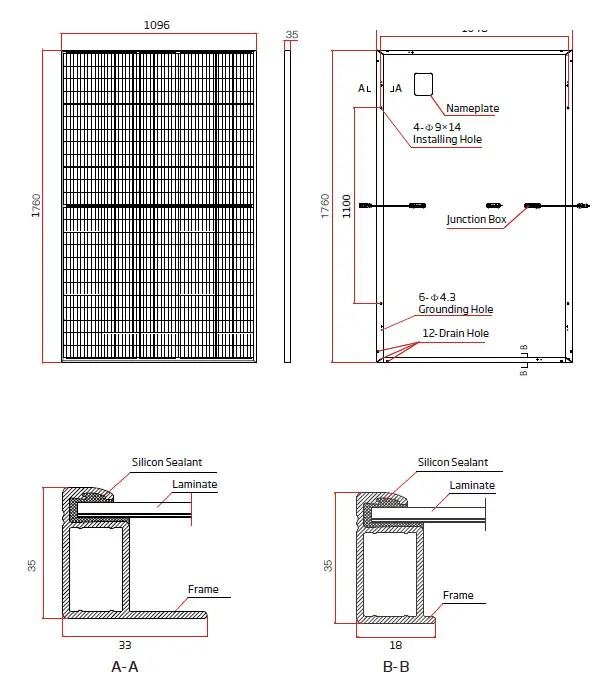

DIMENSION
Specification
Specification| Electrical Specification | EXS-410MHC-W |
| Maximum Power (Pmax) | 410W |
| Module Efficiency | 21.40% |
| Open Circuit Voltage (Voc) | 41.60V |
| Short Circuit Current (Isc) | 12.40A |
| Maximum Power Voltage (Vmp) | 34.60V |
| Maximum Power Current (Imp) | 11.84A |
| Maximum System Voltage | ICE 1000 VDC |
| Electrical DATA@NOCT | EXS-410MHC-W |
| Pmax [W] | 310 |
| Vm [V] | 32.80 |
| Imp [A] | 9.45 |
| Voc [V] | 39.10 |
| Isc [A] | 10.00 |
| Mechanical Specification | |
| Solar Cell Type | Monocrystalline 210‘’ |
| Number of Cells | 120pcs /3×40 |
| Module Size | 1760x1096x35mm |
| Weight | 21.0kg |
| Glass | 3.2mm tempered glass |
| Back Sheet | White |
| Frame | Anodized aluminium alloy, silver or black |
| Junction Box | IP68,three diodes |
| Quantity of Diodes | 3pcs |
| Cable | 4.0mm2 1000mm |
| Connector | MC4 Compatible |
| Wind/Snow Load | 2400pa/5400pa |
| Packaging Configuration | |
| Modules per ox | 31 pieces |
| Number per 20GP | 276 pieces |
| Modules per 40’ HQ | 806 pieces |
| Temperature Characteristic | |
| NMOT (Nominal Module Operating Temperature) | 45°C (±2°C) |
| Temperature Coefficient of PMAX | – 0.36%/°C |
| Temperature Coefficient of UOC | – 0.26%/°C |
| Temperature Coefficient of ISC | 0.04%/°C |
| Maximum Ratings | |
| Operational Temperature | -40 to +85°C |
| Maximum System Voltage | 1500V DC (IEC) |
| Max Series Fuse Rating | 30A |
| Protection Class | Class II |
| Snow Load | 5400 Pa |
| Wind Load | 2400 Pa |
| Hailstone Test | 25mm Hailstone at the speed of 23m/s |
