Technical manual
ELERIX SOLAR PANEL
Mono Crystalline Solar Module
320Wp Black

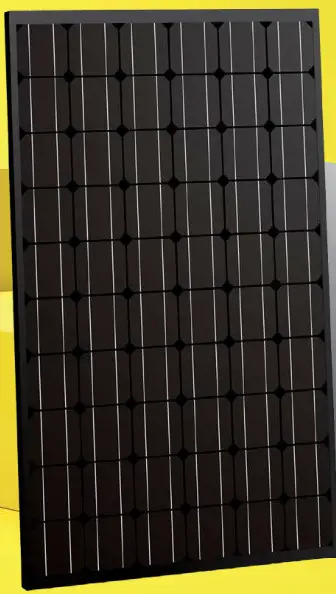

ELERIX Mono Crystalline Solar Module 320Wp Black
Key Features
 | Excellent module efficiency 20.88% |
| IP68 junction box for long-term weather endurance | |
| Heavy snow load up to 5400 Pa, wind load up to 3600 Pa | |
| PID: Selected material and stringent quality system ensure PID free | |
| Applicable to harsh environment of deserts, farmlands and seasides | |
| Much lower risk of Hot Spot |
Warranty

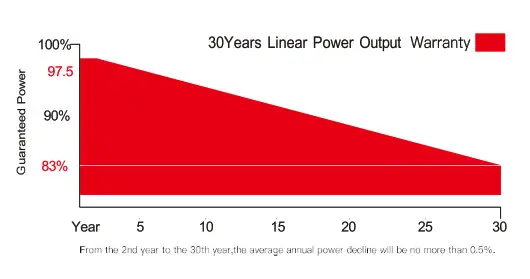

Linear power output warranty
► 12 years minimum 92% power output
► 30 years minimum 83% power output
Product warranty on materials and workmanship According to the applicable ELERIX Limited Warranty Statement
Certification
| Electrical Specification | EXS-320M-FB |
| Maximum Power (Pmax) | 320 W |
| Module Efficiency | 20,88 % |
| Open Circuit Voltage (Voc) | 40.90 V |
| Short Circuit Current (Isc) | 10.15 A |
| Maximum Power Voltage (Vmp) | 33.40 V |
| Maximum Power Current (Imp) | 9.59 A |
| Maximum System Voltage | ICE 1500 VDC/UL 1500 (VDC) |
| Maximum Series Fuse Rating | 20 |
www.elerix.com

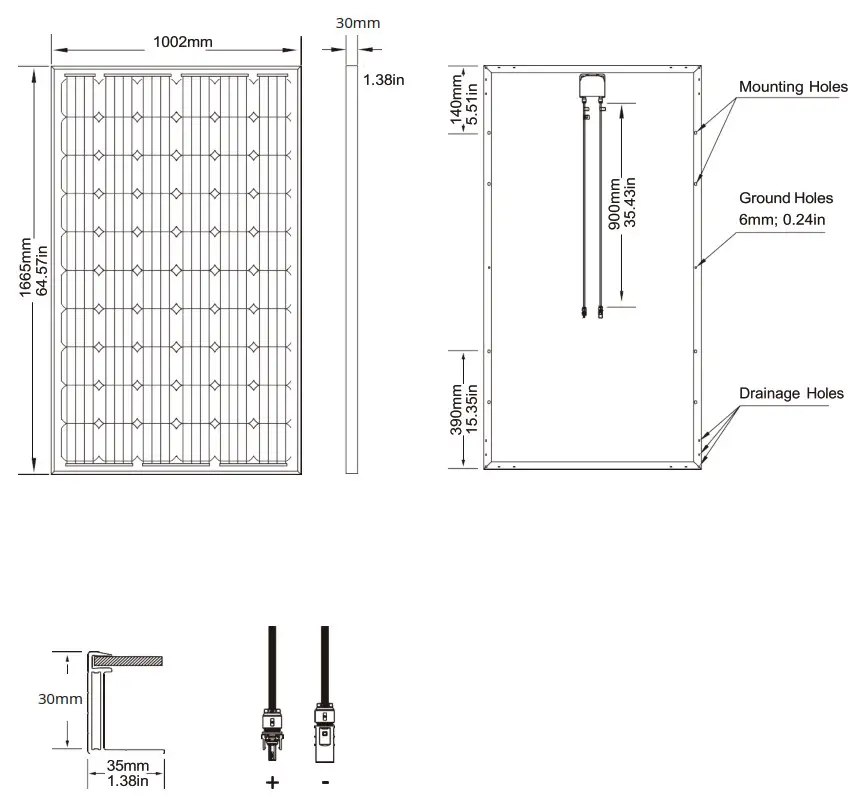

1665*1002*30 mm
