AN-430W 6X24 Half Cells Mono PERC Panel
Instruction Manual

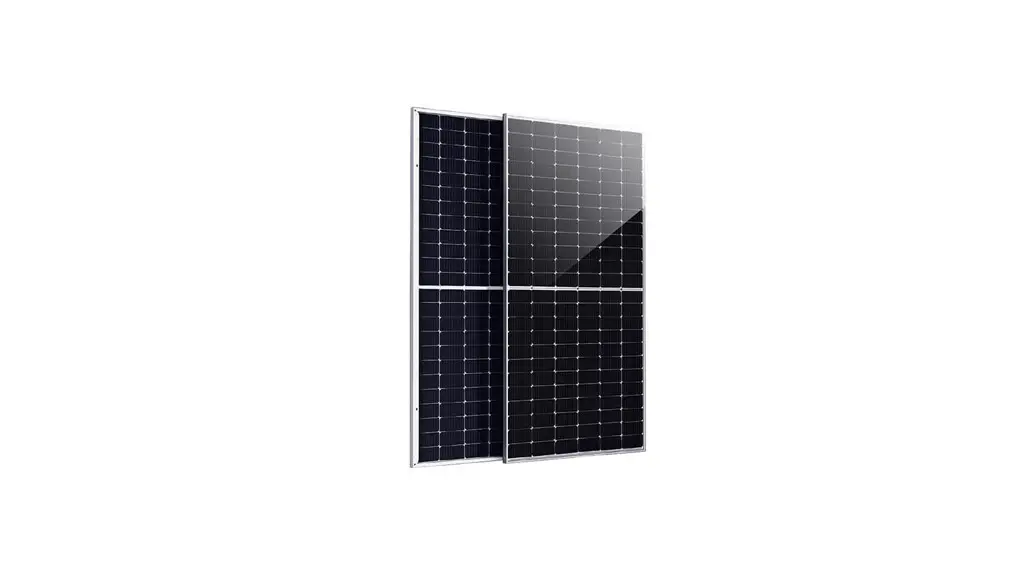

AN-430W 6X24 Half Cells Mono PERC Panel
| Moduls | AN-430W | AN-435W | AN-440W | AN-445W | AN-450W | AN-455W | |
| Standard Test | STC | STC | STC | STC | STC | STC | |
| TORLERANCE | (%) | 0-+3 | 0-+3 | 0-+3 | 0-+3 | 0-+3 | 0-+3 |
| EFFICIENCY | (%) | 20. | 20. | 20. | 20. | 21. | 21. |
| Maximum Power Pmax | (W) | 430 | 435 | 440 | 445 | 450 | 455 |
| Open Circuit Voltage | Voc(V) | 49. | 49. | 50. | 50. | 50. | 50. |
| Short Cuit Current | Isc(A) | 11. | 11. | 11. | 11. | 11. | 12. |
| Maximum Power Voltage | Vm(V) | 41. | 41. | 41. | 41. | 41. | 42. |
| Vlaximum Power Current | Im(A) | 11. | 11. | 11. | 11. | 11. | 11. |
| CELLS | (mm) | 9BB-166×83 mono perc cells | |||||
| CELLS QTY | (Pcs) | 144(6×24) | |||||
| Max System Voltage | (V) | DC1500 | |||||
| pen Circuit Voltage Temp | (%/*C) | 0. | |||||
| hort Circuit Current Temp | (%/°C) | 0.055 | |||||
| Peak Power Temp | (%/°C) | 0. | |||||
| Operate Temp Scope | °C | -40 to 85 | |||||
| Nominal Operating Temp | °C | 45±2 | |||||
| Max Series Fuse Rating | (A) | 20 | |||||
| Frontal static load | (Pa) | MOO | |||||
| Back static load | (Pa) | 2400 | |||||
Standard Test Conditions(STC]: irradiance 1,000 W/m2; AM 1,5; module temperature 25’C.
Measuring uncertainty of power is within -±313/0Tolerance of Pmpp: 0-+3%. Certified in accordance with IEC61215,1EC61730-1/2.
Frame
Raw meterial
| Frame | Alloy Aluminium |
| Glass | 3.2mm |
| Cells | 6X24 166x83mm mono solar cells perc |
| Junction bo) | IP48, TUV&UL |
| Connect | 4m ire , EVO2 |
| Cable | 350mm |

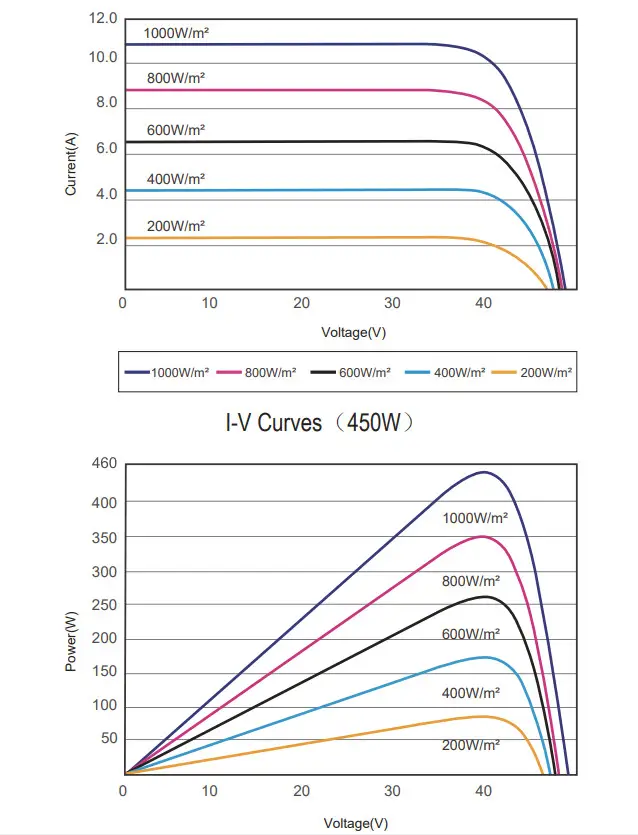

I-V Curves
Package

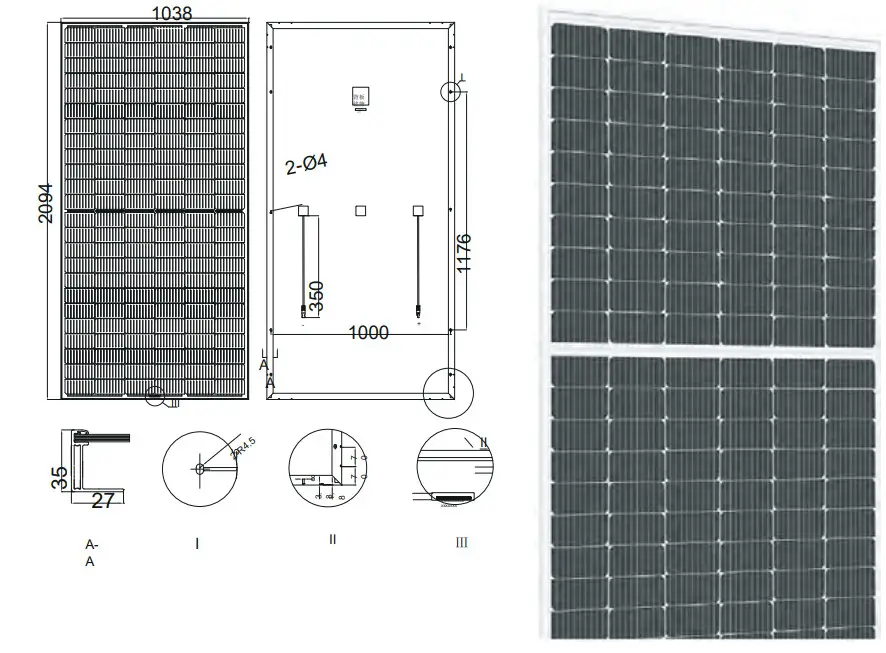

| module size | (mm) | 2094x1038x35 |
| Weight | ( kg) | 23.5 |
| Loading | 680p0s/40HQ | |
| Package | pcs/plt | 31 |
