Sunport Power SPP390QHFH MWT Mono PERC Half-Cut All Black Module
Product Information
- The MWT Mono PERC Half-Cut All Black Module is a solar module with an efficiency of up to 21.0%. It features a full black design for more elegant applications and an innovative back contact module layout with an asymmetric design for higher efficiency power. The module has a busbar-free design, increasing cell conversion efficiency and allowing for more power output even in low irradiance conditions. It also has a conductive back sheet with 2D encapsulation, which avoids welding stress and micro cracks, resulting in lower degradation under multiple harsh testing conditions.
- The MWT Mono PERC Half-Cut All Black Module is an eco-friendly PV design that achieves a lead-free module without soldering materials. It comes with a 30-year performance warranty and a 15-year quality warranty. The product is insured by PAIC and LLOYD’S for reinsurance coverage.
- The module has a Sunport Linear Power Warranty, with guaranteed power output of 85.45% after 30 years and less than 1.5% degradation in the first year. It has comprehensive qualifications and certifications including ISO 9001:2015 Quality Management System, ISO 14001:2015 Environment Management System, ISO 45001:2018 Occupation Health Safety Management System, CQC Top Runner Advanced Technology Certification (4A class), and TUV NORD Certification.
- Manufacturer: Jiangsu Sunport Power Corp., Ltd
- Address: No.20, Xishi Road, Xinwu District, Wuxi, China 214028
- Email: [email protected]
- Website: www.sunportpower.com
Product Usage Instructions
The MWT Mono PERC Half-Cut All Black Module is designed for solar power applications. It can be used in various settings, including residential, commercial, and industrial installations.

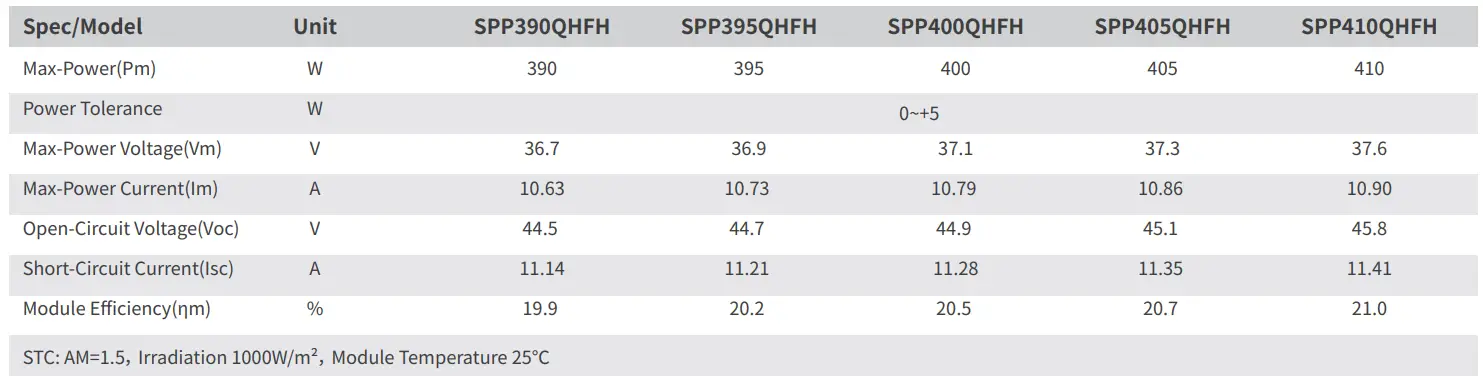

Here are the electrical characteristics of the module at Standard Test Conditions (STC):
| Spec/Model | Max-Power(Pm) | Power Tolerance | Max-Power Voltage(Vm) | Max-Power Current(Im) | Open-Circuit Voltage(Voc) | Short-Circuit Current(Isc) | Module Efficiency(m) |
|---|---|---|---|---|---|---|---|
| SPP390QHFH | 390 W | 36.7 | 10.63 V | 44.5 A | 11.14 V | 19.9 A | |
| SPP395QHFH | 395 W | 36.9 | 10.73 V | 44.7 A | 11.21 V | 20.2 A | |
| SPP400QHFH | 400 W | 0~+5 | 37.1 V | 10.79 A | 44.9 V | 11.28 A | 20.5% |

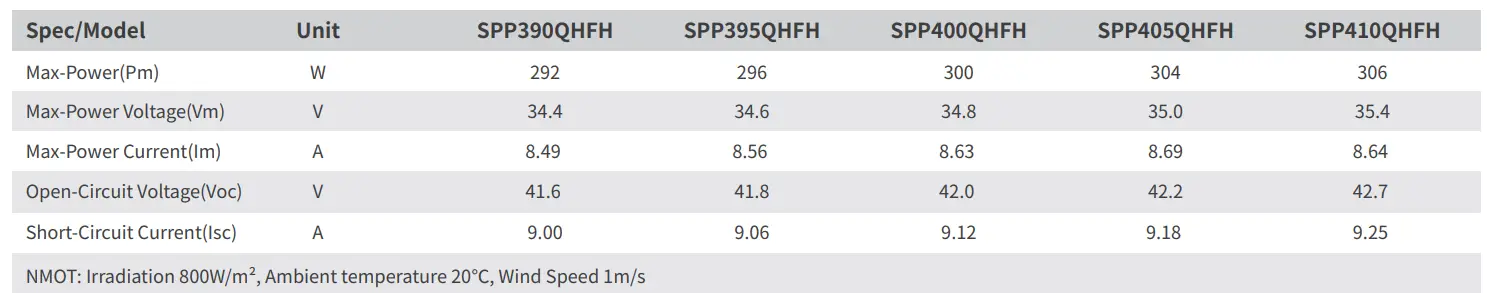

The module’s electrical characteristics at Nominal Module Operating Temperature (NMOT) are as follows:
| Spec/Model | Max-Power(Pm) | Max-Power Voltage(Vm) | Max-Power Current(Im) | Open-Circuit Voltage(Voc) | Short-Circuit Current(Isc) |
|---|---|---|---|---|---|
| SPP390QHFH | 292 W | 34.4 V | 8.49 A | 41.6 V | 9.00 A |
| SPP395QHFH | 296 W | 34.6 V | 8.56 A | 41.8 V | 9.06 A |
| SPP400QHFH | 300 W | 34.8 V | 8.63 A | 42.0 V | 9.12 A |
| SPP405QHFH | 405 W | 37.3 V | 10.86 A | 45.1 V | 11.35 A |
| SPP405QHFH | 304 W | 35.0 V | 8.69 A | 42.2 V | 9.18 A |
| SPP410QHFH | 410 W | 37.6 V | 10.90 A | 45.8 V | 11.41 A |
| SPP410QHFH | 306 W | 35.4 V | 8.64 A | 42.7 V | 9.25 A |

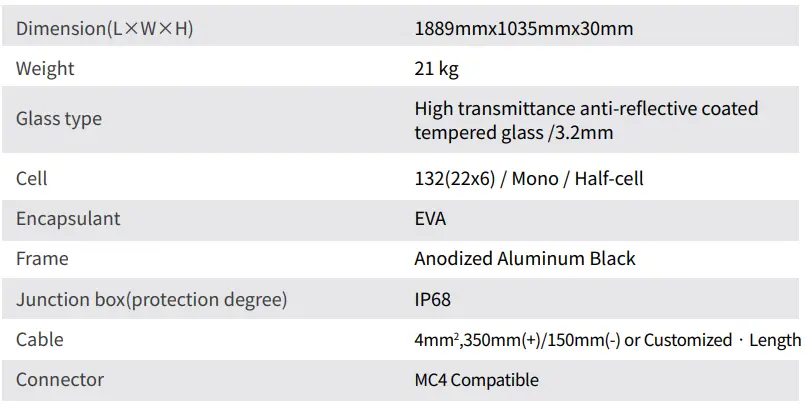

The module’s mechanical characteristics include a cell encapsulant, frame, junction box (protection degree), and cable connector. The module size is 1889mmx1035mmx30mm and it weighs 21 kg.

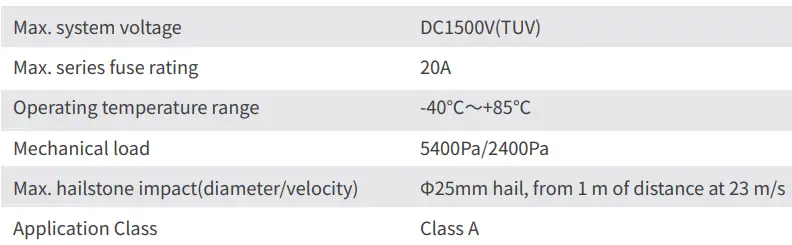

The module can operate under the following conditions:
- Max. system voltage: DC1500V (TUV)
- Max. series fuse rating: 20A
- Operating temperature range: -40°C to +85°C
- Mechanical load: 5400Pa/2400Pa
- Max. hailstone impact (diameter/velocity): 25mm hail, from 1m of distance at 23m/s
- Application Class: Class A
For more information or inquiries, please contact Jiangsu Sunport Power Corp., Ltd via email at [email protected] or visit their website at www.sunportpower.com.
Features
- Full Black
All black design for more elegant applications - Innovative Layout
Innovative back contact module layout with asymmetric design for higher efficiency power - High ROI
Single-glass modules with global 30-year performance warranty bring higher return on investment - High Efficiency
Busbar-free design increases cell conversion efficiency，more power output can be achieved at low irradiance conditions - High Reliability
Conductive back sheet’s 2D encapsulation avoids welding stress and micro crack, resulting lower degradation under multiple harsh testing conditions - Lead Free
Eco-friendly PV design achieves lead-free MWT module without soldering materials

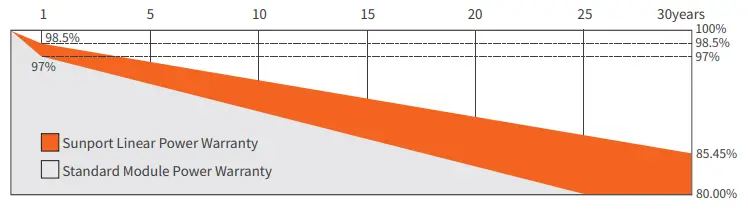

WARRANTY
Reinsurance Coverage for 30 Years
1st year degradation less than 1.5%, 30 years linear power output 85.45% guaranteed.
Comprehensive Qualifications & Certifications
- ISO 9001: 2015 Quality Management System
- ISO 14001: 2015 Environment Management System
- ISO 45001: 2018 Occupation Health Safety Management System
- CQC Top Runner Advanced Technology Certification (4A class)
- TUV NORD Certification
Electrical Characteristics at Standard Test Conditions(STC)
Electrical Characteristics at Nominal Module Operating Temperature（NMOT）

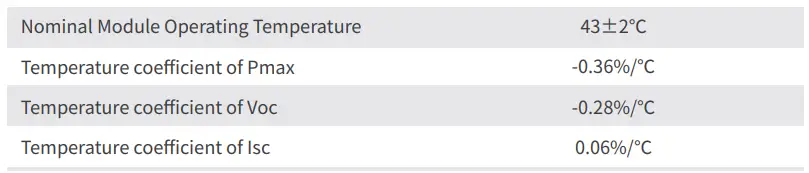

Temperature Coefficient
Mechanical Characteristics
Operating Conditions
Package

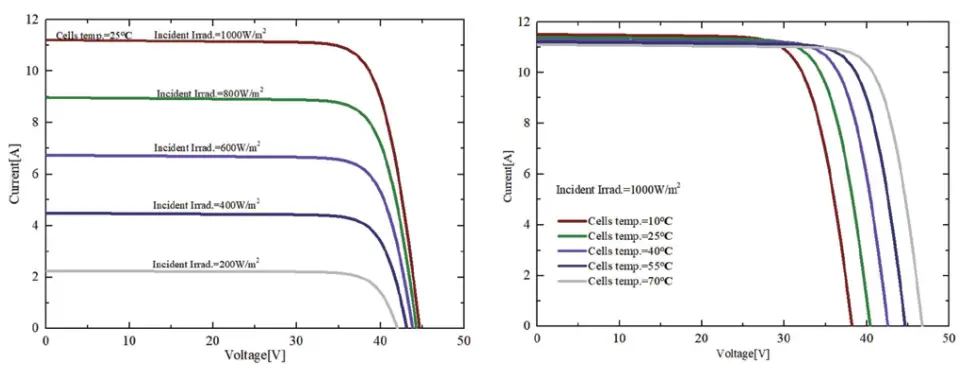

I-V Curve
I-V Curves of SPP395QHFH at different irradiance I-V Curves of SPP395QHFH at different cell temperature

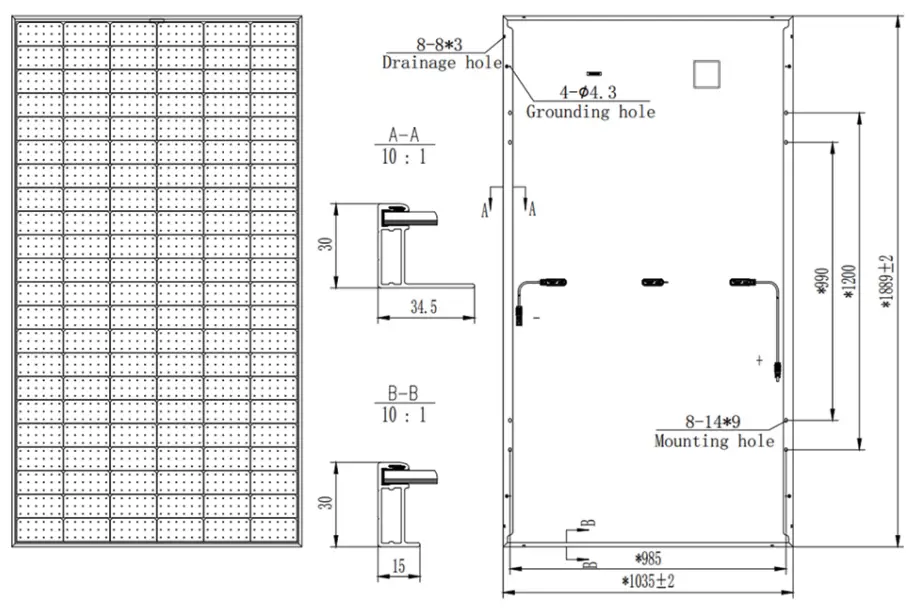

Module Size
