Super High-Efficiency Solar Panel
Starting
10W-535W
 |  |
| For Home | For Industries |
KEY FEATURES
 | Higher module conversion efficiency Maximize limited space with high-efficiency mono PERC cells Half-cell design, lower Rs loss, lower hot spot temperature |
 | Highly reliable due to stringent quality control 100% EL double inspection In-house testing goes well beyond certification requirements |
 | Excellent low light performance Excellent low light performance on cloudy days mornings and evenings |
 | Certified to withstand the most challenging environment 2400 Pa wind load • 5400 Pa snow load • 25 mm hail stones at 82 km/h |
 | High system voltage compatible Maximum 1500V DC system voltage saves total system cost |
 | IP 68 junction box High waterproof level for long-term weather endurance |
QUALIFICATIONS & CERTIFICATES
- IEC 61215, IEC 61730
- ISO 9001: Quality Management System
- ISO 14001: Environment Management System
- OHSAS 18001: Occupational Health and Safety
LOOM SOLAR
Loom Solar is a start-up, manufacturer of Mono solar panels and AC modules based out of Faridabad, Haryana. It sells solar systems across India with promised delivery within 3 days. It is an ISO 9001-2015 certified company and recognized startup by Govt. of India.
WARRANTY
 |  |
| Product Warranty | Performance Warranty |
ELECTRICAL DATA *STC
| TYPE ( Tolerance: 0 – +SW) | SHARK 440 |
| Maximum Power Pmax (W) | 440 |
| Maximum Power Voltage Vmp (V) | 42.00 |
| Maximum Power Current Imp (A) | 10.50 |
| Open Circuit Voltage Voc (V) | 49 |
| Short Circuit Current Isc (A) | 11.35 |
| Module Efficiency (%) | 19.40 |
STC: Irradiance 1000W/m³,, Cell Temperature 25°C, Air Mass AM 1.5
| Maximum Power Pmax (W) | 323 |
| Maximum Power Voltage Vmp (V) | 38 |
| Maximum Power Current Imp (A) | 8.55 |
| Open Circuit Voltage Voc (V) | 43 |
| Short Circuit Current Isc (A) | 9.06 |
NMOT: Irradiance at 800W/m², Ambient Temperature 20°C, Wind Speed 1m/s
TEMPERATURE RATINGS
| Temperature Coefficient of Isc(also) | +0.05%/ºC |
| Temperature Coefficient of Voc((βVoc) | -0.28%/ºC |
| Temperature Coefficient of Pmax (γPmp) | -0.36%/ºC |
| Normal Module Operating Temperature (NMOT) | 45ºC±2ºC |
OPERATING PARAMETERS
| Maximum System Voltage | 1500VDC |
| Operating Temperature | -40,ºC85ºC |
| Maximum Series Fuse | 20A |
| Maximum Test Load, Push/Pull | 5400Pa/2400Pa |
| Conductivity at Ground | ≤0.1Ω |
| Safety Class | || |
| Resistance | ≥100MΩ |
| VOC and ISC Tolerance | ±3% |
MECHANICAL DATA
| Solar Cell Type | Mono Perc(166×83)mm |
| Number of Cells | 144 [12×6 ||12×6] |
| Module Dimensions | 2108x1048x35 |
| Weight | 24 kg |
| Front Cover | 3.2 mm Solar glass .h anti-reflection |
| Back Sheet | Highly resistant polymeric construction |
| Frame | Anodized aluminum alloy |
| J-Box | 3 Part, 3 bypass diodes IP68 rated |
| Cable | 4.0 mm solar cable, 0.6 meters with a cable tie |
| Number of diodes | 3 |
| Connector | MC41P68 compatible |
PACKAGING CONFIGURATION
| Module per pallet | 31 pieces |
| Module per 40’HQ container | 726 pieces |

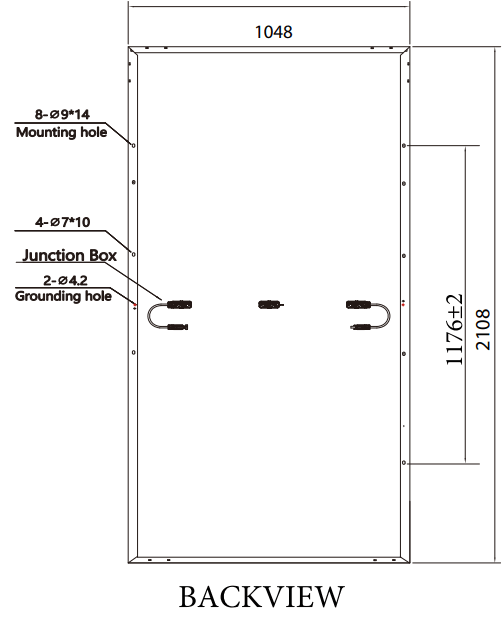

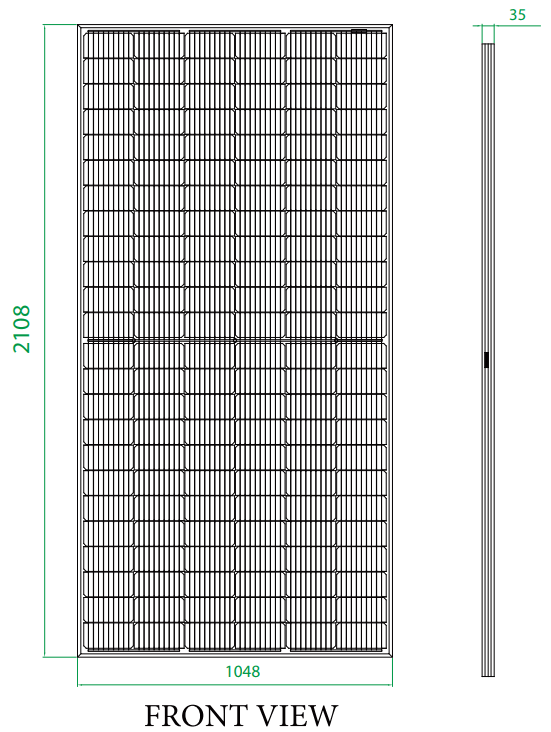

DIMENSION
 |  |
*Installation instructions must be followed. See the installation manual or contact our technical service department for further information on approved installation.
*The specification and key features described in this datasheet may deviate slightly and are not guaranteed. Due to ongoing innovation, and R&D enhancement, Loom Solar (India) Pvt. Ltd. reserves the right to make any adjustment to the information described herein at any time without notice. Please always obtain the most recent version of the datasheet which shall be duly incorporated into the binding contract made by the parties governing all transactions related to the purchase and sale of the products described herein.

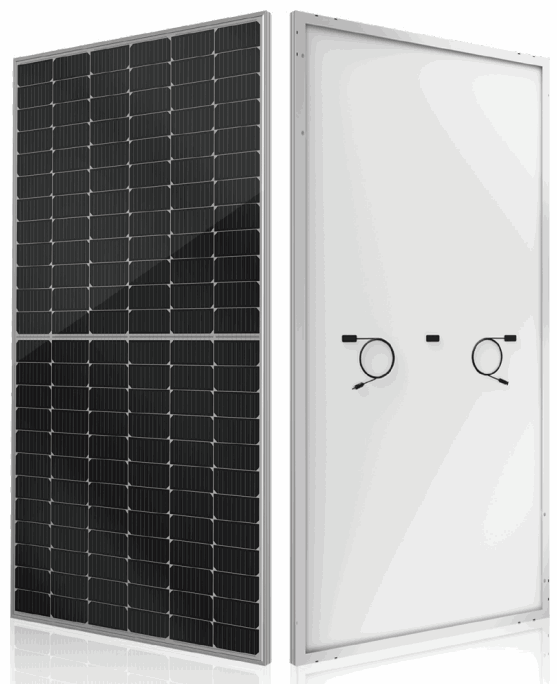

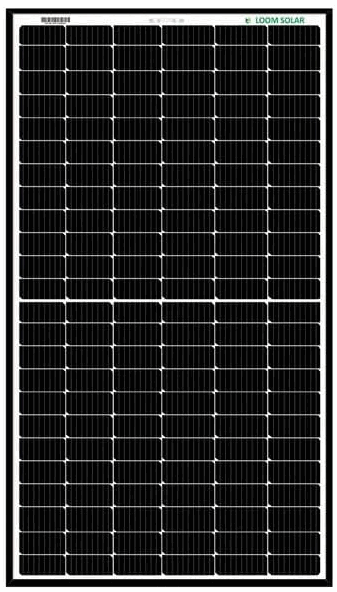

SHARK 440
Mono Perc Solar Module
144 Cells / Mono PERC / 1500V DC / 20.2% Maximum Efficiency
LOOM SOLAR PVT. LTD.
Add: Plot No. 14/6, Mathura Road, Sector 27B, Faridabad, Haryana -121003
Tel: 8750 77 88 00
E-mail: [email protected]
Web: www.loomsolar.com
