User Manual

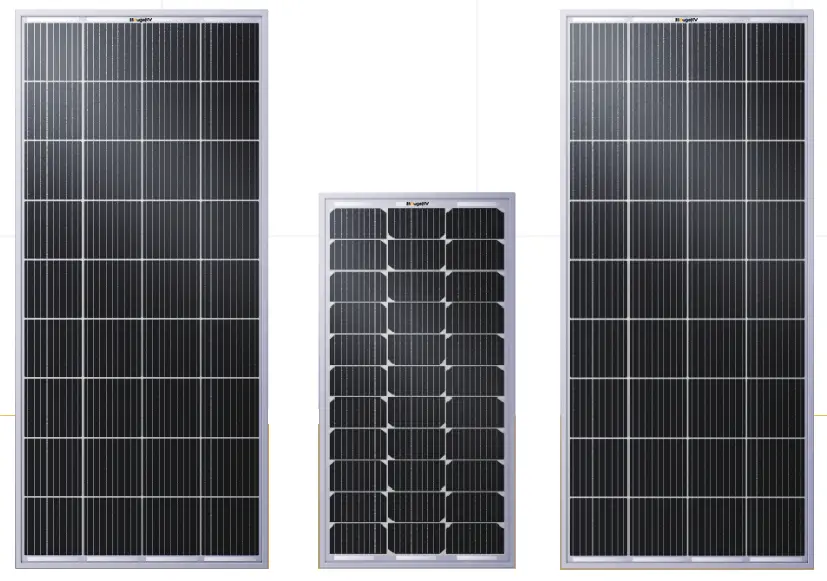

9BB Mono Solar Panel
9BB Mono Solar Panel
Limitless energy, limitless life
Important
Thank you for choosing BougeRV Solar Panel.
Please read and understand the installation manual before installing BougeRV Solar Panel. With proper operation and maintenance, this solar panel could provide you with clean, renewable solar electricity for many years. This manual contains important installation, maintenance, and safety information. Retain this manual for future reference.
Limited Warranty
BougeRV Solar Panel comes with an 18-month limited warranty that commences from the date of purchase. If you have any questions during use, please feel free to contact us:
[email protected]
www.bougerv.com
1-669-232-7427（6:00 PM-12:00AM PST or leave us voice messasges）
Message through [Ask a Question] in BougeRV Amazon shop
Ps: The limited warranties do not apply to any of the following:
The solar panel which in BougeRV’s absolute judgment have been subjected to misuse, abuse, neglect or accident, alteration, or improper installation, application, or removal. This includes, but is not limited to, installation, application,or removal by any party other than a BougeRV authorized dealer; non-observance of BougeRV’s installation, user’s and/or maintenance instructions; power failure surges, lightning, flood, fire, accidental breakage, or other events beyond BougeRV’s control.
Safety Precautions
- Do not stand on, drop, scratch, or allow objects to fall on the solar panels as doing so may damage them and void the warranty.
- Do not place anything on the solar panel, even for a moment because the resulting residue may damage or stain the glass surface.
- If the front glass is broken, or the back sheet is torn, contact with any panel surface or panel frame can cause electric shock.
- Broken J-boxes or connectors are electrical hazards as well as laceration hazards. Installers should remove any such solar panel from the array and contact BougeRV for disposal instructions.
- Do not install or handle the solar panel when they are wet or during periods of high wind.
- Do not block drain holes or allow water to pool in or near module frames.
- Unconnected connectors must always be protected from pollution (e.g dust, humidity, foreign particles, etc), prior to installation. Do not leave unconnected (unprotected) connectors exposed to the environment. A clean assembly environment is therefore essential to avoid performance degradation.
- Save these instructions!
Electrical Parameters
| MODEL | 100W SOLAR PANEL | 180W SOLAR PANEL | 200W SOLAR PANEL |
| Peak Power Pm (W) | 100W | 180W | 200W |
| Open circuit voltage Voc (V) | 21.4V | 23.0V | 23.4V |
| Max.power voltage Vmp (V) | 18.15V | 19.2V | 19.8V |
| Max.power current Imp (A) | 5.51A | 9.38A | 10.10A |
| Short circuit current Isc (A) | 6.11A | 10.23A | 11.17A |
| Solar cells Efficciency | 21.90% | 20.50% | 22.50% |
| Operating temperature limits | -4℉~ +167℉ | -4℉~ +167℉ | -4℉~ +167℉ |
| Cable/Cable connector Model | 12AWG 3FT MC4 connectors | 12AWG 3FT MC4 connectors | 12AWG 3FT MC4 connectors |
| Max.static load, front(e.g.snow/wind) | 2400 Pa | 2400 Pa | 2400 Pa |
| Max.static load, back(e.g.,wind) | 2400 Pa | 2400 Pa | 2400 Pa |
| Max.hailstone impact (diameter/velocity) | 227g stell ball fall down from 1m height and 60m/s wind | 227g stell ball fall down from 1m height and 60m/s wind | 227g stell ball fall down from 1m height and 60m/s wind |
| Max.system voltage(V) | 1000V DC | 1000V DC | 1000V DC |
| Series fuse rating | 10A | 15A | 15A |
| Application Class | Class A | Class A | Class A |
| Product Certification/Standard | CE,ETL | CE,ETL | CE,ETL |
| Product diameter (mm) | 995 * | 1480 * 670 * 35 | 1480 * 670 * 35 |
Electrical Connections

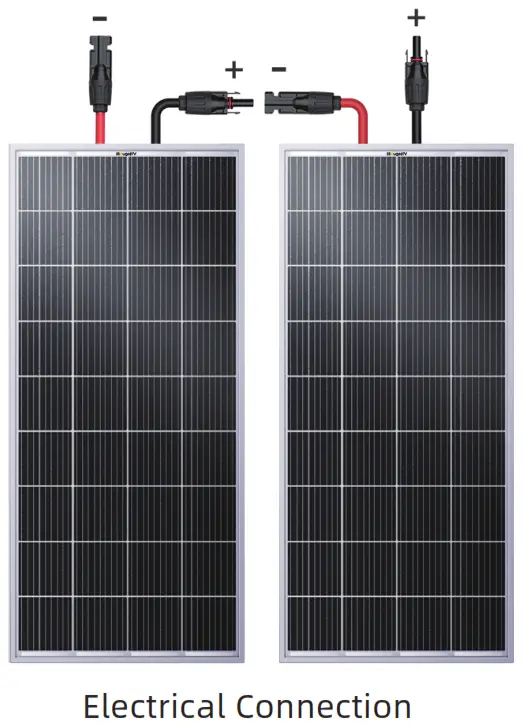

Series Connection
The panel may be wired in series to produce the desired voltage output.

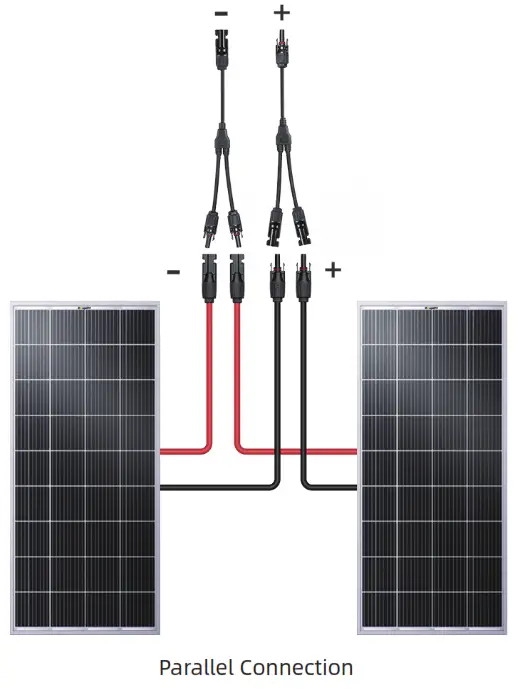

Parallel Connection
The solar panel can be wired in parallel to produce the desired current output with the parallel connector.
Frequently Asked Questions
– A1 BougeRV provides you with professional technical services. You can send us your needs and the parameter information or instructions of your purchased accessories directly to our email: [email protected], we will help you build the ideal DIY solar system.
– A2 Please send relevant pictures to our after-sales mailbox [email protected] immediately , and leave your order number. We will reply one by one according to the chronological order sent by the customers.
– A3 The output power of solar panels is mainly affected by light intensity, light angle, and shadow occlusion during the use of solar panels. Therefore, during daily use, the angle of illumination must be adjusted to prevent shadows, and the obstructions on the solar panel must be cleaned regularly, such as bird droppings, dust, and garbage. Such obstructions may cause the solar panel to not output at all.
– A4 Yes, BougeRV solar panels with mc4 connectors are suitable for most portable power stations on the market. If you want to inquire about the specific model, please contact us.
[email protected] 1-669-232-7427www.bougerv.com
