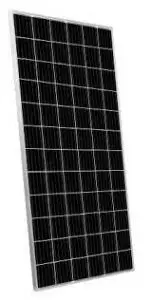

PRIMAR Solar Panel User Manual
CELLS
72 CELLS MONO 5BB M3 | PERC
158.75×158.75mm / 6.25×6.25″
Frame
COMPACT AND STURDY | 40mm ANCHORABLE ALSO ON THE SHORT SIDE (4).
ELECTRICAL CHARACTERISTICS
ELECTRICAL CHARACTERISTICS (STC) (1) | |
| Nominal Output (Pmax) | 400 W |
| Power Tolerance | 0/+5 W |
| Voltage at Pmax (Vmp) | 40.6 V |
| Current at Pmax (Imp) | 9.86 A |
| Open Circuit Voltage (Voc) | 48.64 V |
| Short Circuit Current (Isc) | 10.3 A |
| Maximum System Voltage | 1500 V |
| Maximum Series Fuse Rating | 15 A |
| Module Efficiency | 20.17% |
| Protection class against electric shock | Class II |
MECHANICAL CHARACTERISTICS
| Solar Cells | 72 (6×12) M3 monocrystalline PERC |
| Solar Cells Size | 158.75×158.75 mm / 6.25×6.25” |
| Front Cover | 3.2 mm / 0.12” thick, low iron tempered glass |
| Back Cover | TPT (Tedlar-PET-Tedlar) |
| Encapsulant | EVA (Ethylene vinyl acetate) |
| Frame | Anodized aluminium alloy, double wall |
| Frame finishing | Silver |
| Back sheet finishing | White |
| Diodes | 3 Bypass diodes serviceable |
| Junction Box | IP67 rated |
| Connector | MC4 or compatible connector |
| Cables Length | 1100 mm / 43.3” |
| Cables Section | 4.0 mm² / 0,006 in² |
| Dimensions | 1979x1002x40 mm / 77.91×39.44×1.57” |
| Weight | 22 Kg / 48.5 lbs |
| Max. Load | Certified to 5400 Pa |

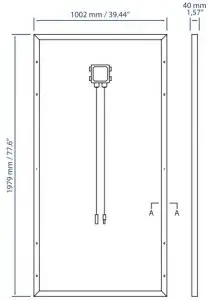

DIMENSIONS
TEMPERATURE CHARACTERISTICS
| NOCT (2) | 45±2 °C |
| Temperature Coefficient of Pmax | -0.40 %/°C |
| Temperature Coefficient of Voc | -0.32 %/°C |
| Temperature Coefficient of Isc | 0.047 %/°C |
| Operating Temperature | -40 °C ~ +85°C |
PACKAGING
| Pallet dimensions | 2000x1200x1210 mm / 78.7×47.2×47.6” |
| Pieces per pallet | 27 |
| Weight | 630 Kg / 1388.9 lbs |

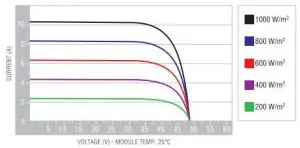

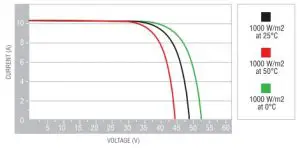

CURRENT/VOLTAGE CHARACTERISTICS
- STC: (Standard Test Condition) Irradiance 1000W/m²; Module Temperature 25°C; Air Mass 1.5.
- NOCT: (Nominal Operation Cell Temperature) Sun 800W/m²; Air 20°C; Wind speed 1m/s.
- Pallets can be stacked up to two.
- Consult the installation manual for the relative mounting configurations.
It is important to point out, that all technical specifications, information and figures contained in this datasheet are estimated values. Peimar reserves the right to change the technical specifications, information and figures contained in this document at any time without notice.
