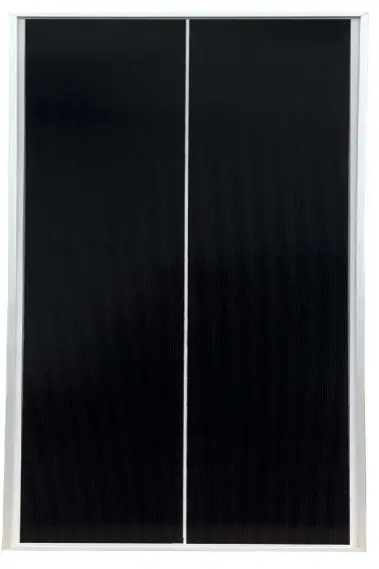

SOLARFAM SZ-20-36M Solar Panel
Product Information
- Warranty: 5 years Manufacturer Warranty on Electrical Performance. 10 years warranty with 90% power output and 25 years warranty with 80% power output.
- Manufacturing: Original cell sorting system ensures the best electric cell match. EL-Testing is performed before packing. Comprehensive module power testing is conducted.
- Performance: The module has higher efficiency and a compact size. It also features a weakened hot-spot effect, lower failure rate, and increased stability thanks to shingle-tech technology. The special connection method reduces internal resistance and provides better performance compared to traditional busbar connections. The junction box is IP67 rated, and reliable cables and standard MC4 connectors improve stability.
Mechanical Data
SZ-20-36M:
- Standard Test Conditions: AM=1.5, E=1000W/m2, TC=25
- Nominal Power: 20W
- Cell Type: Monocrystalline
- Cell Efficiency: None
- Maximum Power Current (Impp): 500mm / 2.5mm2
- Maximum Power Voltage (Vmpp): Aluminum Frame / Glass / EVA / Backsheet
- Open-circuit Voltage (Voc): IP67
- Short-circuit Current (Isc): -40~+80
- Maximum System Voltage: Module Dimensions
- Output Tolerance: Module Weight
- Cable Connector Type: Package Pieces per Pallet
- Module Structure: Gross Weight per Pallet
- Junction box rating: Pallet Dimensions
- Diode: None
- Working Temperature: SOLMAX NEW ENERGY B.V. AdTdernle:f+os3s2:[email protected], 3542 EB Utrecht, the Netherlands
Product Usage Instructions
- Ensure that the module is installed under standard test conditions with an AM of 1.5, E of 1000W/m2, and TC of 25.
- Connect the module to a compatible electrical system with a maximum voltage as specified in the manual.
- Make sure to use the provided cable connector type (MC4 connectors) for a reliable connection.
- Install the module in a suitable location with proper ventilation and protection from extreme temperatures.
- Handle the module with care during installation to avoid any damage.
- Refer to the warranty information for any potential claims or issues.
Warranty
- 5 years Manufacturer Warranty
- Warranty on Electrical Performance：10 years 90% + 25 years 80% of power output
Manufacturing
- Original cell sorting system ensures the best electric cell match
- EL-Testing before packing.
- Comprehensive module power testing.
Performance
- Higherer module efficiency and compact size.
- Weakened hot-spot effect, lower module failure rate and increased stability by shingle-tech.
- Special connection method lowers the internal resistance and ensures better performance than traditional connection with busbar.
- IP67 rated junction box, reliable cables and standard MC4 connectors improve the stability
Mechanical Data
Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃
| Nominal Power | 20W |
| Cell Type | Monocrystalline |
| Cell Efficiency | 22% |
| Maximum Power Current (Impp) | 0.98A |
| Maximum Power Voltage (Vmpp) | 20.42V |
| Open-circuit Voltage (Voc) | 24.27V |
| Short-circuit Current (Isc) | 1.04A |
| Maximum System Voltage | 500V |
| Output Tolerance | ±3% |
| Cable | 500mm / 2.5mm2 |
| Connector Type | None |
| Module Structure | Aluminum Frame / Glass / EVA / Backsheet |
| Junction box rating | IP67 |
| Diode | √ |
| Working Temperature | -40~+80℃ |
Packaging
| Module Dimensions | 540*240*25mm |
| Module Weight | 1.4kg |
| Package | Single Package |
| Pieces per Pallet | Free |
| Gross Weight per Pallet | Free |
| Pallet Dimensions | Free |
