Portable Solar Charging Panel
USER MANUAL
Model: SFZD-40
Please read the instructions carefully before use.
Introduction
Alpha Digital Portable Solar Panel charger is equipped with USB/QC3.0/DC output ports and accessory socket, capable of charging most of your devices, including cell phone, tablet, in-car appliances, portable power station and 12V~18V storage battery. Apart from that, its TIR-C technology can automatically identify the required current of connected devices for optimum charging performance.

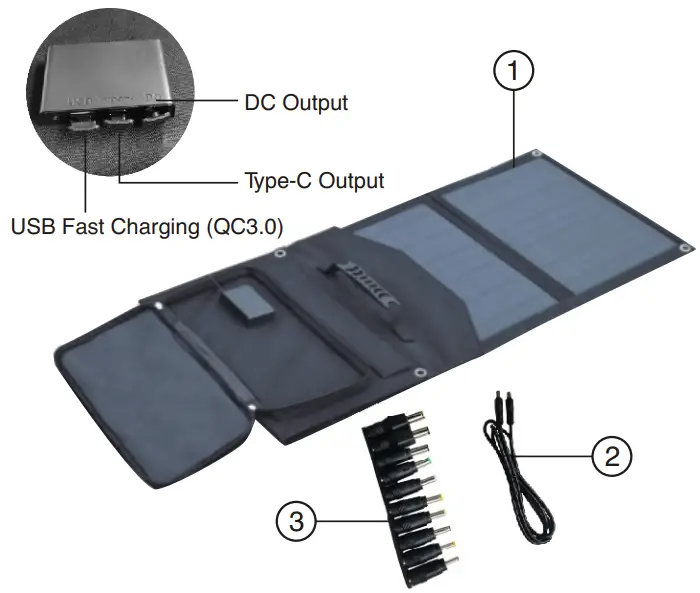

- 1 x Solar Charging Panel
- 1 x DC-to-DC Cable
- 1 x 10-in-1 Connector for Laptop

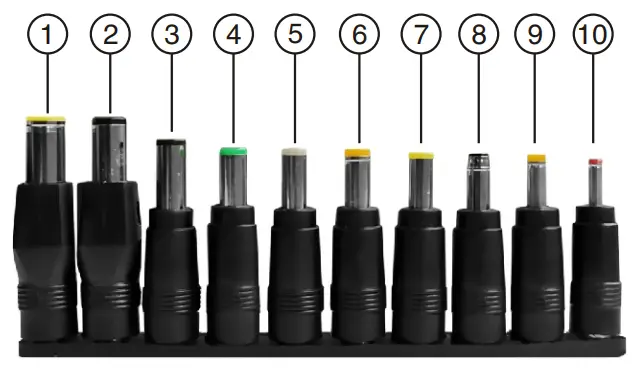

1 x 10-in-1 Connector for Laptop
| DC connector size | Applicable computer | |
| 1 | 7.9`5.5`0.8mm | IBM / Lenovo |
| 2 | 7.4*5.0*0.5mm | Dell / Compaq / HP |
| 3 | 6.5`4.2`1.4mm | Sony / Fujitsu / Samsung |
| 4 | 6.3*3.0mm | Acer / Toshiba / NEC |
| 5 | 5.5*2.5mm | Lenovo / Asus / Acer / MSI / BenQ / Hedy / Toshiba / IBM / Gateway Malata / Haier |
| 6 | 5.51.7mm | Shenzhou / Malata / Acer / Lenow / Asus / BenQ / Toshiba / NEC… |
| 7 | 5.5’3.21.1mm | Samsung |
| 8 | 4.81.7mm | HP / Sony / NEC / Defta / Compaq / Sony / Asus |
| 9 | 4.01.7mm | Asus / BenQ / Acer / Sony PSP / Navigator / HP (mini) Netbook / Tablet… |
| 10 | 3.51.35mm | Sharp / Dell |
Operation Guidance

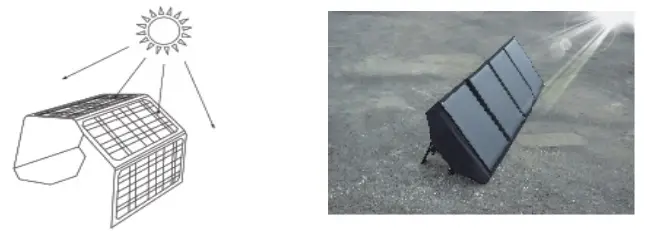

Step 1: Unfold the solar panel. Place it under direct sunlight and ensure it is facing towards the sun. (No shelter including glass.)

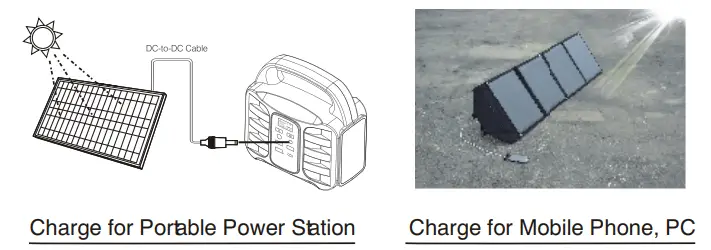

Step 2: Connect electronic device to the USB output port or other appliances to the DC output with accessory cable come with the product. The red indicator light would be ON while charging your devices and appliances.
Specifications
| Max power | 40W |
| Volta✓/Current max | 12-18V/3A(max) |
| Type-C Output | PD18VV, 5V/9V/12V/15V/20V |
| USB QC3.0 Output | 5V/3A; 9V/2A; 12V/1.5A |
| DC Output | 18V/3A |

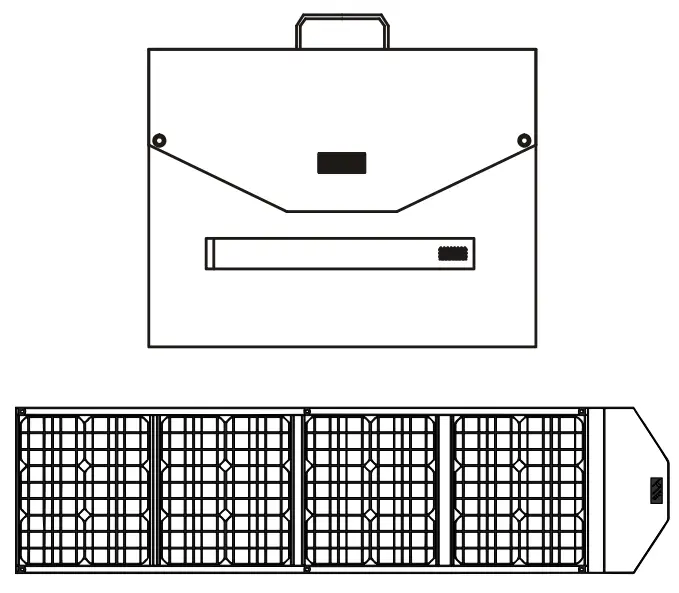

| Unfolded Size | 1160*340*4mm |
| Folded Size | 340*251*53mm |
| Weight | 2.1KG |
Warning
- Please turn off the overheating protection of your device, before using the solar charging panel to charge it.
- Do not bend the solar charging panel.
- Ensure it is kept away from water or rain. If is soaked, please dry it in the shade.
- Always treat the monocrystalline solar charging panel with care. Do not drop or scratch the product. Ensure it is kept away from sharp objects.
Materials:
Oxford PVC fabric (Water Resistance IPX4)
Monocrystalline silicon PET solar panel
What You Get
- 1 x Solar Charging Panel
- 1 x DC-to-DC Cable
- 1 x 10-in-1 Connector for Laptop
- 1 x User Manual
Statement
All rights reserved. Reproduction in whole or in part without written permission is prohibited. All other trademarks are trademarks of their respective owners. Features and specifications are subject to change without notice.
FCC and safety information
WARNING!!! This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Support
For any support or comments concerning our products, please send an email to: [email protected] or toll free number in the USA: 800-473-5156
