REC Alpha Pure Series Solar Panels
GENERAL DATA
| GENERAL DATA | |
| Cell type: | 132 half-cut REC heterojunction cells with lead-free, gapless technology, 6 strings of 22 cells in series |
| Glass: | 3.2 mm solar glass with anti-reflective surface treatment in accordance with EN 12150 |
| Backsheet: | Highly resistant polymer (black) |
| Frame: | Anodized aluminum (black) |
| Junction box: | 3-part, 3 bypass diodes, lead-free IP68 rated, in accordance with IEC 62790 |
| Connectors: | Stäubli MC4 PV-KBT4/KST4 (4 mm²) in accordance with IEC 62852, IP68 only when connected |
| Cable: | 4 mm² solar cable, 1.1 m + 1.2 m in accordance with EN 50618 |

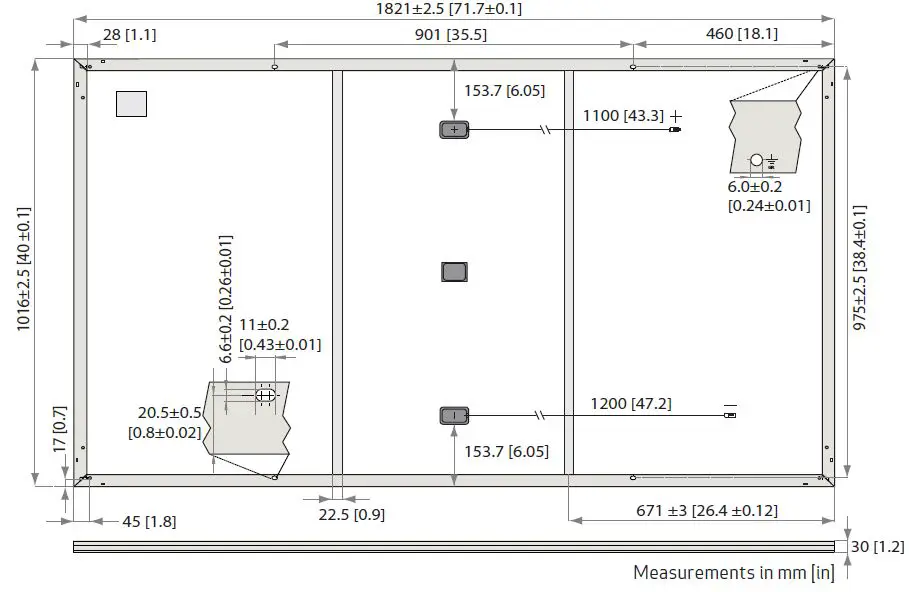

| Dimensions: | 1821 x 1016 x 30 mm (1.85 m2) |
| Weight: | 20.5 kg |
| Origin: | Made in Singapore |
ELECTRICAL DATA
| ELECTRICAL DATA | Product Code*: RECxxxAA Pure | |||||
| Power Output – PMAX (Wp) | 385 | 390 | 395 | 400 | 405 | 410 |
| Watt Class Sorting – (W) | 0/+5 | 0/+5 | 0/+5 | 0/+5 | 0/+5 | 0/+5 |
| Nominal Power Voltage – VMPP (V) | 41.2 | 41.5 | 41.8 | 42.1 | 42.4 | 42.7 |
| Nominal Power Current – IMPP (A) | 9.35 | 9.40 | 9.45 | 9.51 | 9.56 | 9.61 |
| Open Circuit Voltage – VOC (V) | 48.5 | 48.6 | 48.7 | 48.8 | 48.9 | 49.0 |
| Short Circuit Current – ISC (A) | 10.18 | 10.19 | 10.20 | 10.25 | 10.30 | 10.35 |
| Power Density (W/m2) | 208 | 211 | 214 | 216 | 219 | 222 |
| Panel Efficiency (%) | 20.8 | 21.1 | 21.4 | 21.6 | 21.9 | 22.2 |
| Power Output – PMAX (Wp) | 293 | 297 | 301 | 305 | 309 | 312 |
| Nominal Power Voltage – VMPP (V) | 38.8 | 39.1 | 39.4 | 39.7 | 40.0 | 40.2 |
| Nominal Power Current – IMPP (A) | 7.55 | 7.59 | 7.63 | 7.68 | 7.72 | 7.76 |
| Open Circuit Voltage – VOC (V) | 45.7 | 45.8 | 45.9 | 46.0 | 46.1 | 46.2 |
| Short Circuit Current – ISC (A) | 8.16 | 8.20 | 8.24 | 8.28 | 8.32 | 8.36 |
| Values at standard test conditions (STC: air mass AM 1.5, irradiance 1000 W/m², temperature 25°C), based on a production spread with a tolerance of PMAX, VOC & ISC ±3% within one watt class. Nominal module operating temperature (NMOT: air mass AM 1.5, irradiance 800 W/m², temperature 20°C, windspeed 1 m/s). * Where xxx indicates the nominal power class (PMAX) at STC above. | ||||||
CERTIFICATIONS
| CERTIFICATIONS | |
| IEC 61215:2016, IEC 61730:2016, UL 61730 | |
| IEC 62804 | PID |
| IEC 61701 | Salt Mist |
| IEC 62716 | Ammonia Resistance |
| ISO 11925-2 | Ignitability (Class E) |
| IEC 62782 | Dynamic Mechanical Load |
| IEC 61215-2:2016 | Hailstone (35mm) |
| IEC 62321 | Lead-free acc. to RoHS EU 863/2015 |
| ISO 14001, ISO 9001, IEC 45001, IEC 62941 | |
TEMPERATURE RATINGS
| TEMPERATURE RATINGS* | |
| Nominal Module Operating Temperature: | 44°C (±2°C) |
| Temperature coefficient of PMAX: | -0.26 %/°C |
| Temperature coefficient of VOC: | -0.24 %/°C |
| Temperature coefficient of ISC: | 0.04 %/°C |
| *The temperature coefficients stated are linear values | |
MAXIMUM RATINGS
| MAXIMUM RATINGS | |
| Operational temperature: | -40 … +85°C |
| Maximum system voltage: | 1000 V |
| Maximum test load (front): | · 7000 Pa (713 kg/m²)* |
| Maximum test load (rear): | – 4000 Pa (407 kg/m²)* |
| Max series fuse rating: | 25 A |
| Max reverse current: | 25 A |
| * See installation manual for mounting instructions. Design load = Test load / 1.5 (safety factor) | |
WARRANTY
| WARRANTY | |||
| Standard | REC ProTrust | ||
| Installed by an REC Certified Solar Professional | No | Yes | Yes |
| System Size | All | ≤25 kW | 25-500 kW |
| Product Warranty (yrs) | 20 | 25 | 25 |
| Power Warranty (yrs) | 25 | 25 | 25 |
| Labor Warranty (yrs) | 0 | 25 | 10 |
| Power in Year 1 | 98% | 98% | 98% |
| Annual Degradation | 0.25% | 0.25% | 0.25% |
| Power in Year 25 | 92% | 92% | 92% |
| See warranty documents for details. Conditions apply | |||
DELIVERY INFORMATION
| DELIVERY INFORMATION | |
| Panels per pallet: | 33 |
| Panels per 40 ft GP/high cube container: | 792 (24 pallets) |
| Panels per 13.6 m truck: | 924 (28 pallets) |
| Panels per 53 ft truck: | 891 (27 pallets) |
LOW LIGHT BEHAVIOUR
Typical low irradiance performance of module at STC:
