SAMSUNG DVE46BB6700 Bespoke AI Smart Dial Electric Dryer with Super Speed Dry and MultiControl Owner’s Manual

Features

• Bespoke Design
• Super Speed Dry
• Smart Dial
• Multi Control™
• Steam Sanitize+
• ENERGY STAR® Certified
• Shallow Closet-Depth Fit1
• Flexible Installation
• Wi-Fi Connectivity2
• Sensor Dry
• 7.5 cu. ft. Ultra Capacity
• Vent Sensor
• Lint Filter Indicator
• Premium Tempered Glass Door
• Internal Drum Light
• Reversible Dryer Door
• ADA Compliant3
• 19 Total Drying Cycles
• 14 Options
• 5 Temperature Settings
• 4-Way Venting

Convenience

• Child Lock
• Filter Check Indicator

Ratings

ENERGY STAR® Rated: 608 kWh/yr

Electrical Requirements

• 240 V / 60 Hz
• 30 Amps

Specifications

19 Total Drying Cycles

Steam Refresh, Wrinkle Away, Steam Sanitize+, Super Speed, Eco Normal, Normal, Heavy Duty, Towels, Permanent Press, Activewear, Bedding, Delicates, Wool, Shirts, Denim, Time Dry, Air Fluff, Small Load, Rack Dry.

14 Options:

Damp Alert, Wrinkle Prevent, AntiStatic, My Cycles, Smart Control, Eco Dry, Drum Light, Child Lock, Alarm, AI Pattern, Wi-Fi, Language, Vent Blockage Test, Factory Reset.

5 Temperature Settings:

High, Medium, Medium Low, Low, Extra Low

Available Colors

• Brushed Navy DVE46BB6700D

• Brushed Black DVE46BB6700


5 Dry Levels:

Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry.

Warranty

One (1) Year Parts and Labor

Product Dimensions & Weight (WxHxD)

Dimensions: 27″ x 383 /4″ x 315 /16″ Weight: 121.3 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 293 /8″ x 4215/16″ x 331 /2″
Weight: 132.3 lbs

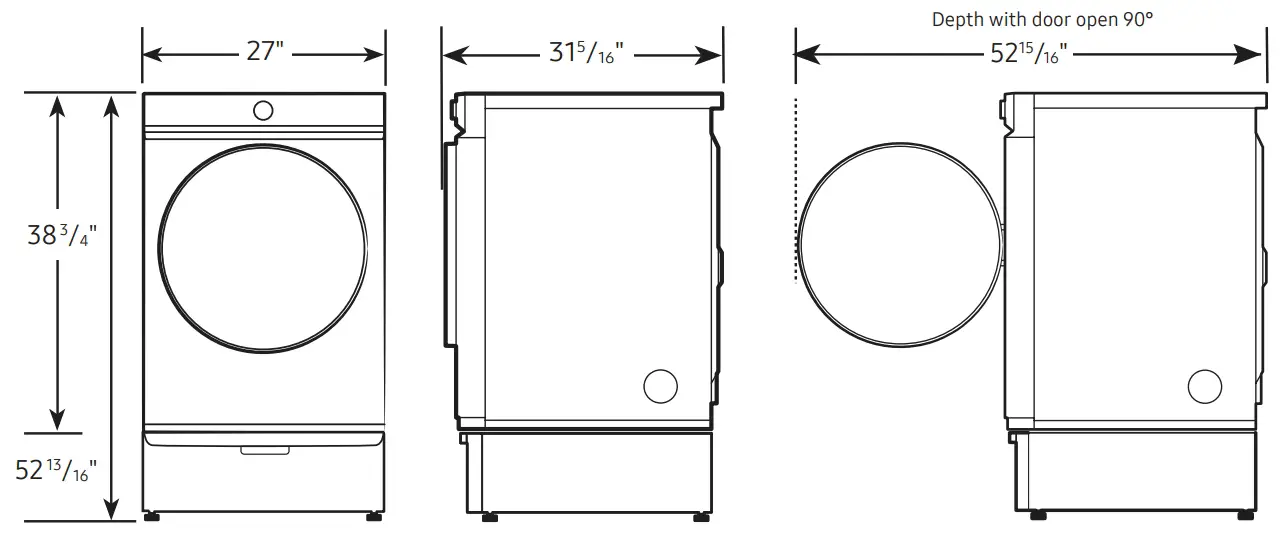

Dimensions

Required dimensions for installation with pedestal:

Installation Specifications – Side-by-Side

If the washer and dryer are installed together or the dryer alone, the closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2 . Your washer alone does not require a specific air opening.

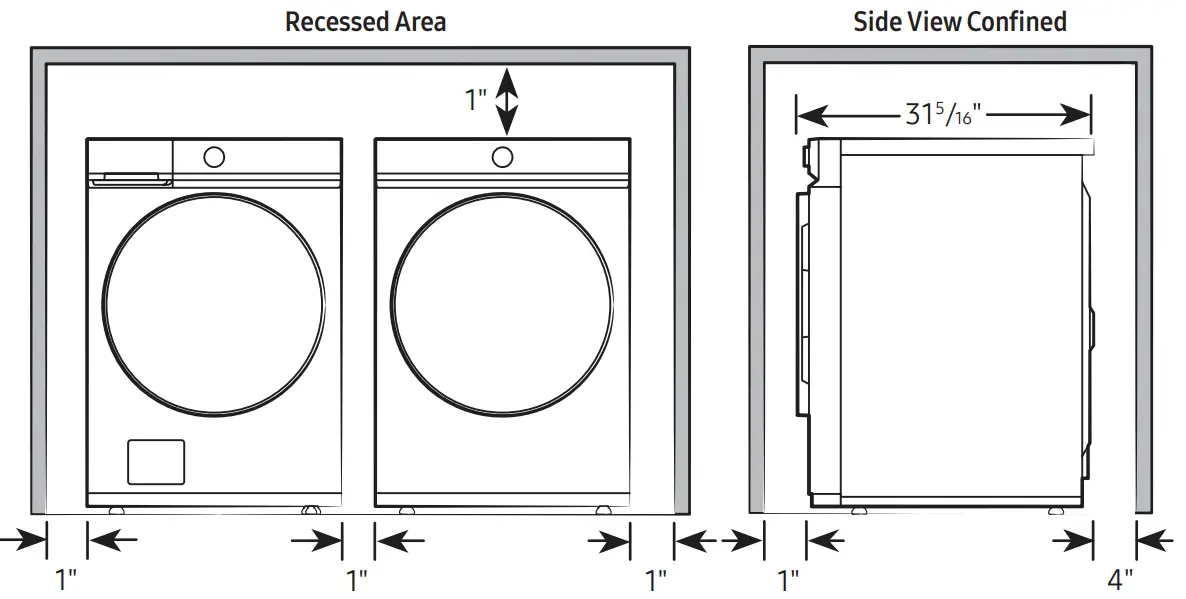

Alcove or closet installation

Minimum clearance for closet and alcove installations:

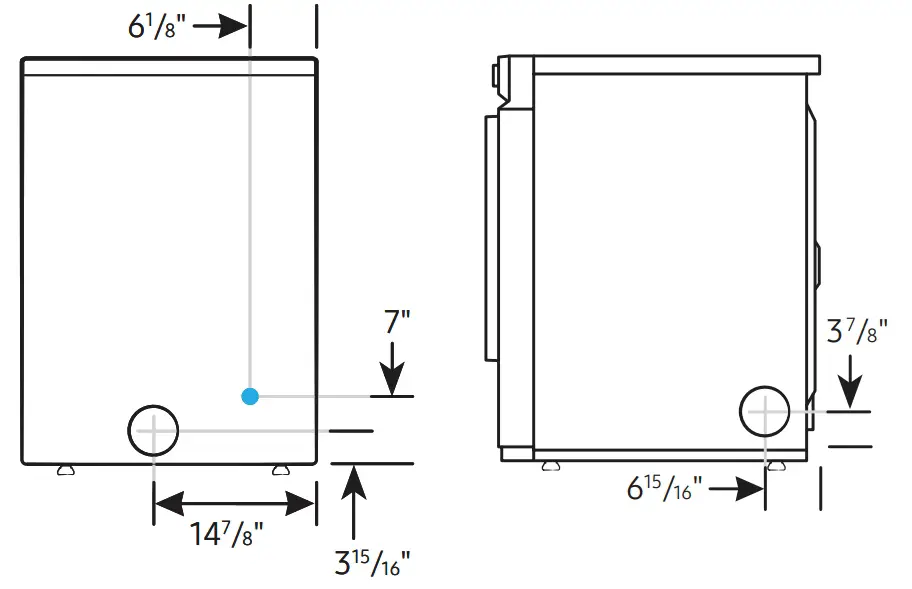

Connection Dimensions

Back and side view of dryer

LEGEND

• Cold Water Connection

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

©2022 Samsung Electronics America, Inc., 85 Challenger Road, Ridgefield Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.

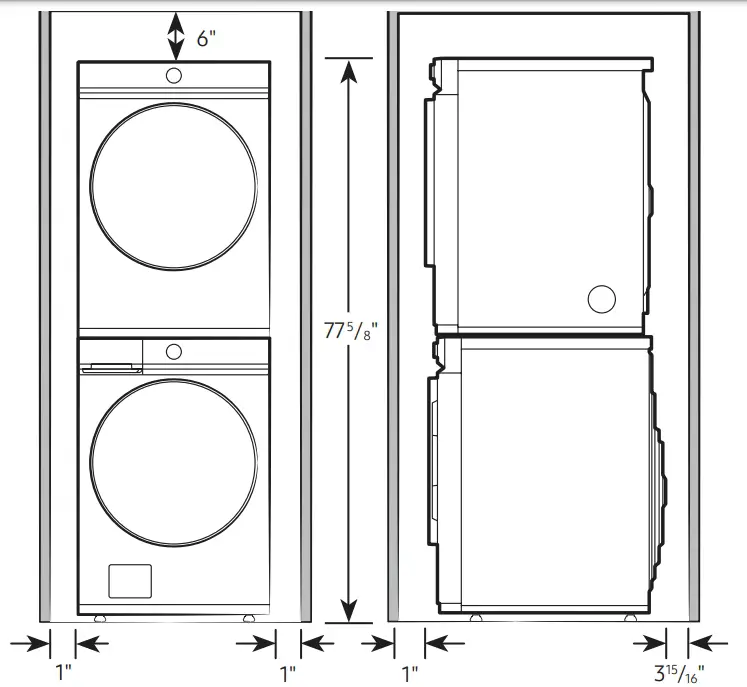

Installation Specifications – Stacked Pair

Clearances indicated are for stacked pairs. The closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2

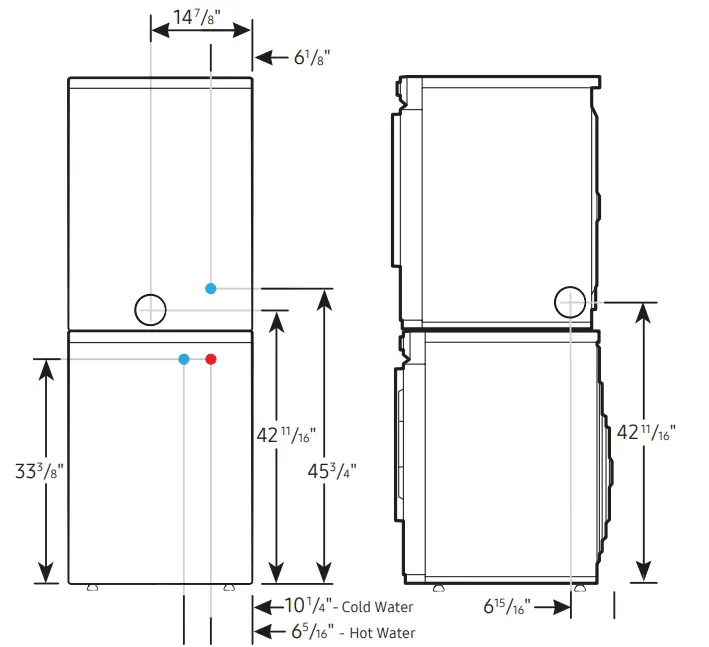

Connection Dimensions

Back and side views of stacked pair

LEGEND

• Cold Water Connection
• Hot Water Connection

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

©2022 Samsung Electronics America, Inc., 85 Challenger Road, Ridgefield Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
