DVE53BB8900 Bespoke Ultra Capacity Electric Dryer
Owner’s Manual

DVE53BB8900 Bespoke Ultra Capacity Electric Dryer

DVE53BB8900
Bespoke 7.6 cu. ft. Ultra Capacity Electric Dryer with AI Optimal Dry and Super Speed Dry

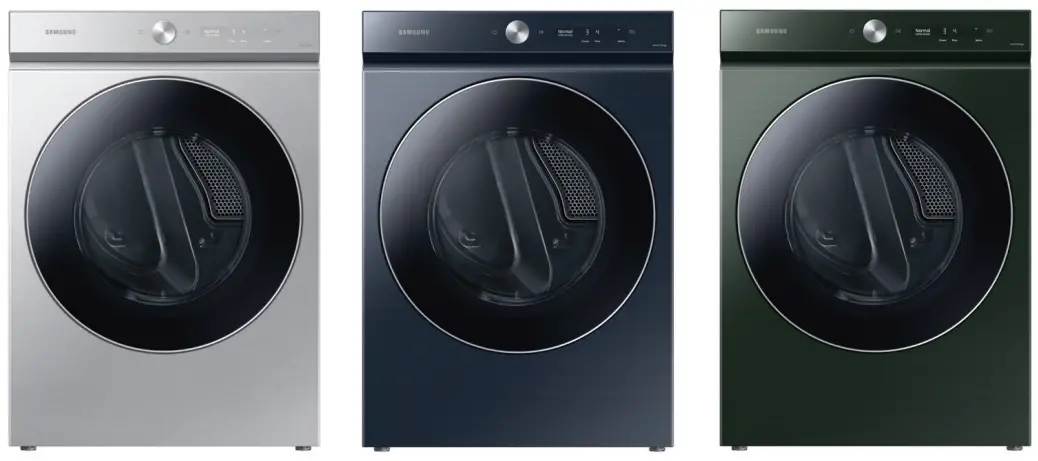

Available Colors

	Silver Steel DVE53BB8900T
	Brushed Navy DVE53BB8900D
	Forest Green DVE53BB8900G

Features

• Bespoke Design
• AI Optimal Dry
• Super Speed Dry
• AI Smart Dial
• MultiControl™
• Steam Sanitize+
• ENERGY STAR® Certified
• Shallow Closet-Depth Fit1
• Flexible Installation
• Wi-Fi Connectivity2
• Sensor Dry
• 7.6 cu. ft. Ultra Capacity
• Vent Sensor
• Lint Filter Indicator
• Stainless Steel Drum
• Premium Tempered Glass Door
• Internal Drum Light
• Drying Rack
• Reversible Dryer Door
• ADA Compliant3
• 20 Total Drying Cycles
• 14 Options
• 5 Temperature Settings
• 4-Way Venting

Specifications

20 Preset Drying Cycles:
Steam Refresh, Wrinkle Away, Steam Sanitize+, AI Optimal Dry, Super Speed, Eco Normal, Delicates, Normal, Heavy Duty, Towels, Permanent Press, Activewear, Bedding,
Wool, Shirts, Denim, Time Dry, Air Fluff, Small Load, Rack Dry
14 Options:
Damp Alert, Wrinkle Prevent, AntiStatic, My Cycles, Smart Control, Eco Dry, Drum Light, Child Lock, Alarm, AI Pattern, Wi-Fi, Language, Vent Blockage Test, Factory Reset
5 Temperature Settings:
High, Medium, Medium Low, Low, Extra Low
5 Dry Levels:
Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Warranty
One (1) Year Parts and Labor
Product Dimensions & Weight (WxHxD)
Dimensions: 27″ x 383 /4″ x 317/16″
Weight: 121.3 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 293/8″ x 4215/16″ x 3411/16″
Weight: 130.1 lbs

Convenience

• Child Lock
• Filter Check Indicator

Ratings

ENERGY STAR® Rated: 608 kWh/yr

Electrical Requirements

240 V / 60 Hz 30 Amps

1 Designed to fit a 38″ installation depth.
2 Requires wireless network, Samsung account and SmartThings App. The Samsung SmartThings App supports Android OS 4.0 (ICS) or later which is optimized for Samsung smartphones (Galaxy S and Galaxy Note series). This app also supports iOS 7 or later for iPhone models. SmartThings App available in App Store and Play Store. Only monitoring enabled on Gas Dryers for safety reasons.
3 ADA Compliant when using 27″ wide riser. (Riser model codes: WE272NV, WE272NW, WE272NC)
DVE53BB8900

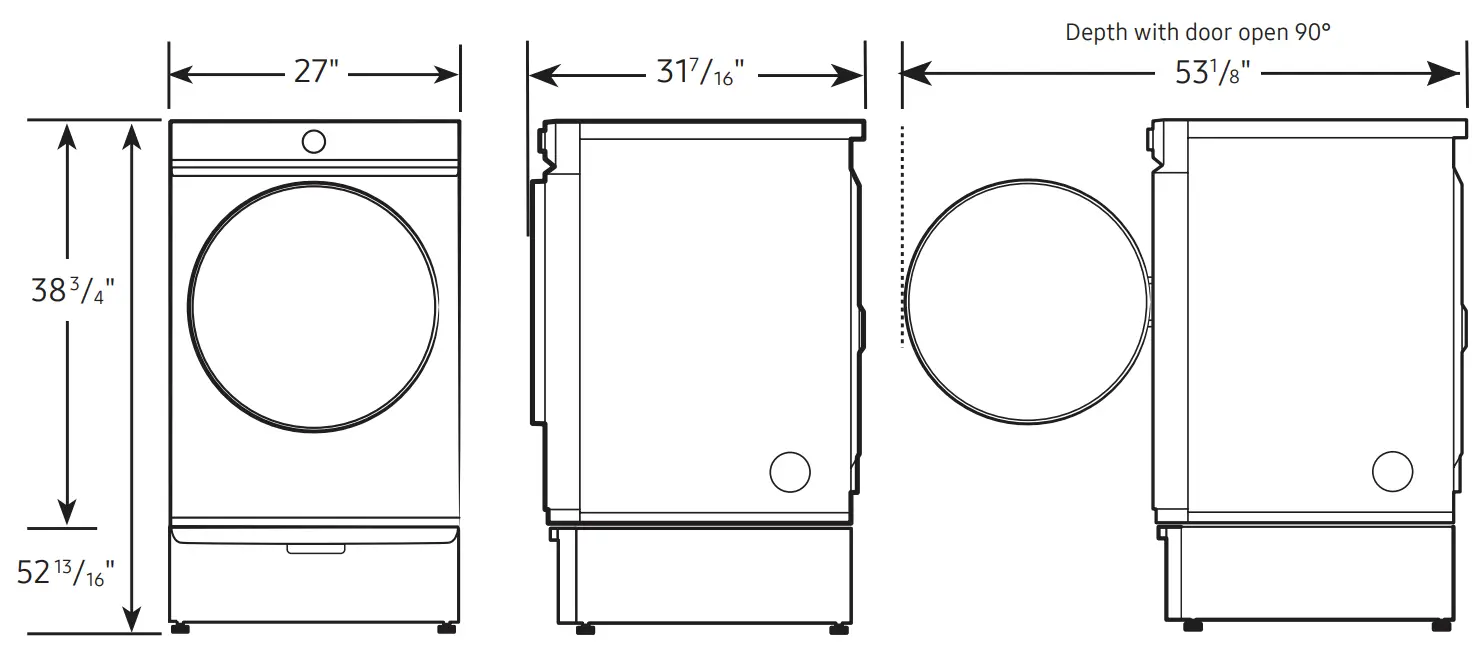

Bespoke 7.6 cu. ft. Ultra Capacity Electric Dryer with AI Optimal Dry and Super Speed DryDimensions
Required dimensions for installation with pedestal:

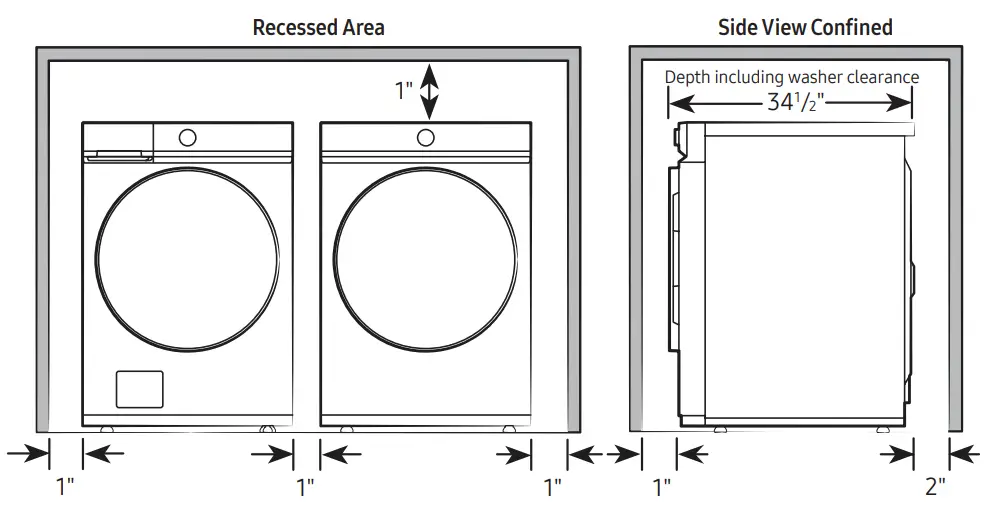

Installation Specifications – Side-by-Side
If the washer and dryer are installed together or the dryer alone, the closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2
. Your washer alone does not require a specific air opening.
Alcove or closet installation
Minimum clearance for closet and alcove installations:

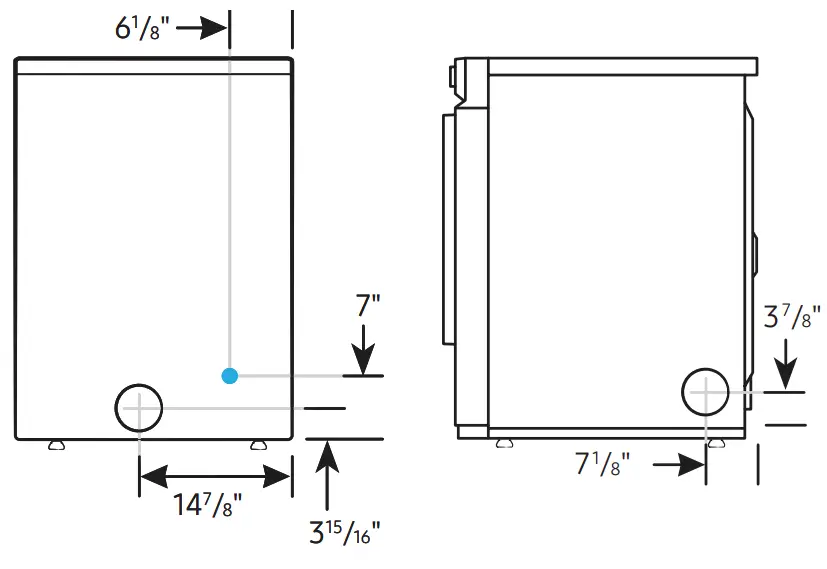

Connection Dimensions

Back and side view of dryer

LEGEND:
Cold Water Connection
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2022 Samsung Electronics America, Inc., 85 Challenger Road, Ridgefield Park, NJ 07660.
Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.

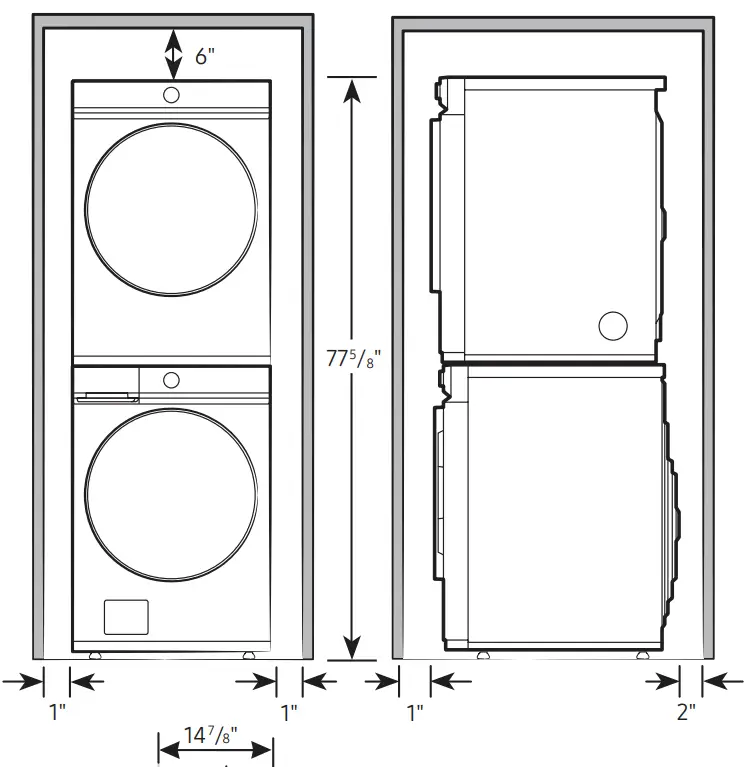

Installation Specifications – Stacked Pair

Clearances indicated are for stacked pairs. The closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2Connection Dimensions

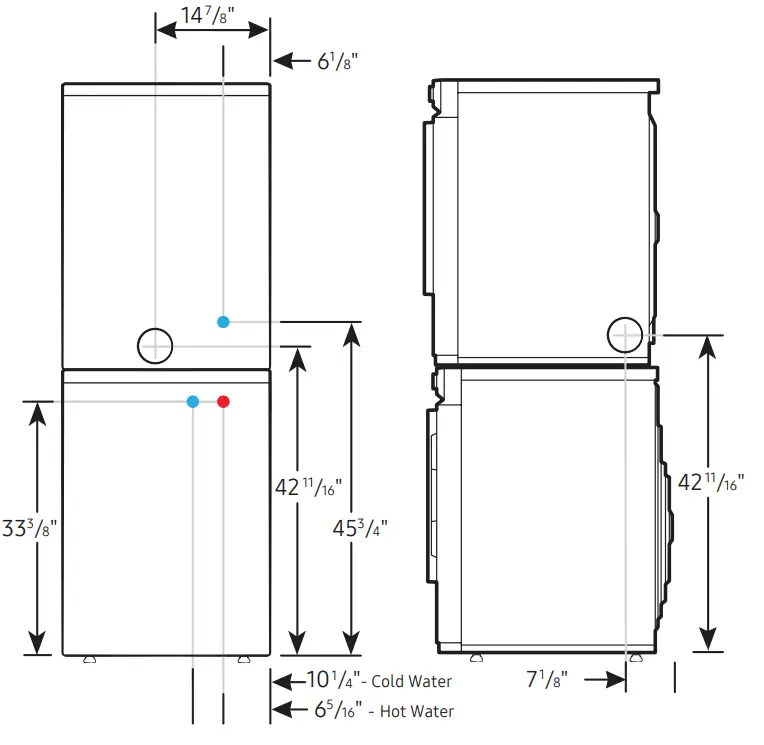

Back and side views of stacked pair
LEGEND:

Cold Water Connection
Hot Water Connection

Actual color may vary. Design, specifications, and color availability are subject to change without notice.
Non-metric weights and measurements are approximate.
©2022 Samsung Electronics America, Inc.,
85 Challenger Road, Ridgefield Park, NJ 07660.
Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
