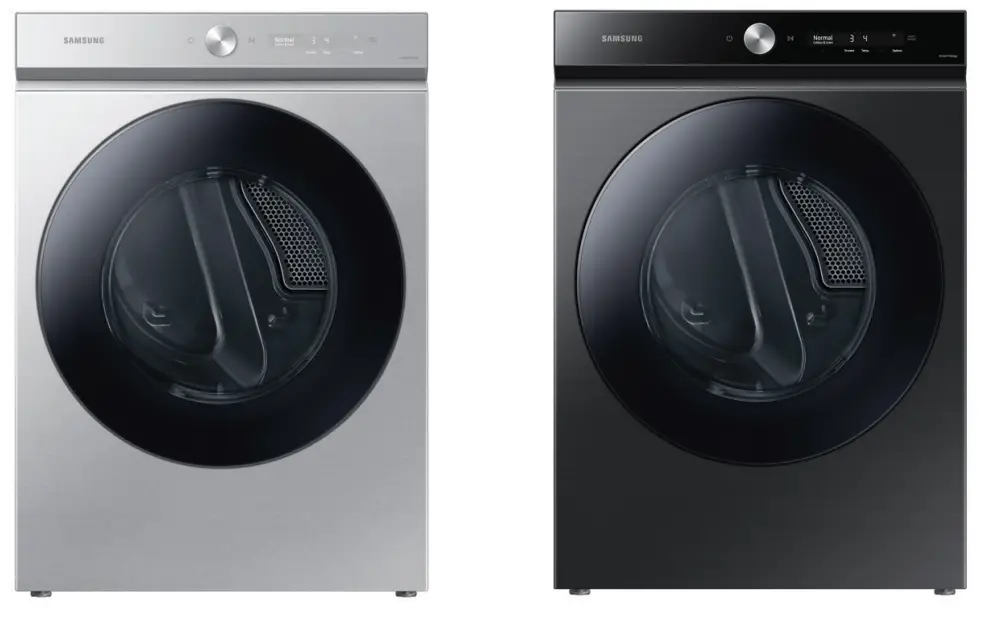

SAMSUNG DVG53BB8700 Bespoke Ultra Capacity Gas Dryer

Available Colors

Silver Steel
DVG53BB8700T

Brushed Black
DVG53BB8700V

Features

• Bespoke Design
• Super Speed Dry
• AI Smart Dial
• MultiControl™
• Steam Sanitize+
• ENERGY STAR® Certified
• Shallow Closet-Depth Fit1
• Flexible Installation
• Wi-Fi Connectivity 2
• Sensor Dry
• 7.6 cu. ft. Ultra Capacity
• Vent Sensor
• Lint Filter Indicator
• Stainless Steel Drum
• Premium Tempered Glass Door
• Internal Drum Light
• Drying Rack
• Reversible Dryer Door
• ADA Compliant3
• 19 Total Drying Cycles
• 14 Options
• 5 Temperature Settings
• 3-Way Venting

Convenience

• Child Lock
• Filter Check Indicator

Electrical Requirements

120 V / 60 Hz
15 Amps

Specifications

19 Preset Drying Cycles:
Steam Refresh, Wrinkle Away, Steam Sanitize+, Super Speed, Eco Normal, Normal, Heavy Duty, Towels, Permanent Press, Activewear, Bedding, Delicates, Wool, Shirts, Denim, Time Dry, Air Fluff, Small Load, Rack Dry

14 Options:
Damp Alert, Wrinkle Prevent, AntiStatic, My Cycles, Smart Control, Eco Dry, Drum Light, Child Lock, Alarm, AI Pattern, Wi-Fi, Language, Vent Blockage Test, Factory Reset

5 Temperature Settings:

High, Medium, Medium Low, Low, Extra Low

5 Dry Levels:
Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry

Warranty
One (1) Year Parts and Labor

Product Dimensions & Weight (WxHxD)
Dimensions: 27″ x 383/4″ x 317/16″ Weight: 121.3 lbs

Shipping Dimensions & Weight (WxHxD)
Dimensions: 293/8″ x 4215/16″ x 3411/16″ Weight: 130.1 lbs

Designed to fit a 38″ installation depth..
2 Requires wireless network, Samsung account and SmartThings App. The Samsung SmartThings App supports Android OS 4.0 (ICS) or later which is optimized for Samsung smartphones (Galaxy S and Galaxy Note series). This app also supports iOS 7 or later for iPhone models. SmartThings App available in App Store and Play Store. Only monitoring enabled on Gas Dryers for safety reasons.
3ADA Compliant when using 27″ wide riser. (Riser model codes: WE272NV, WE272NW, WE272NC)

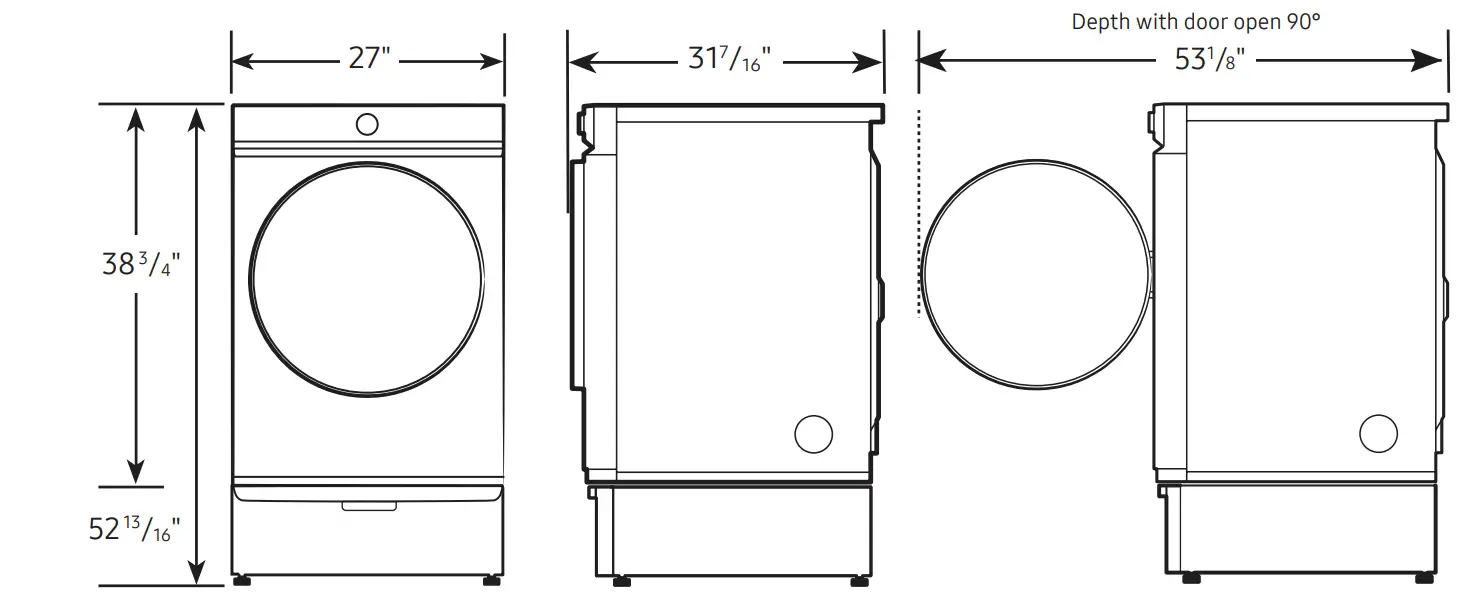

Dimensions

Required dimensions for installation with pedestal:

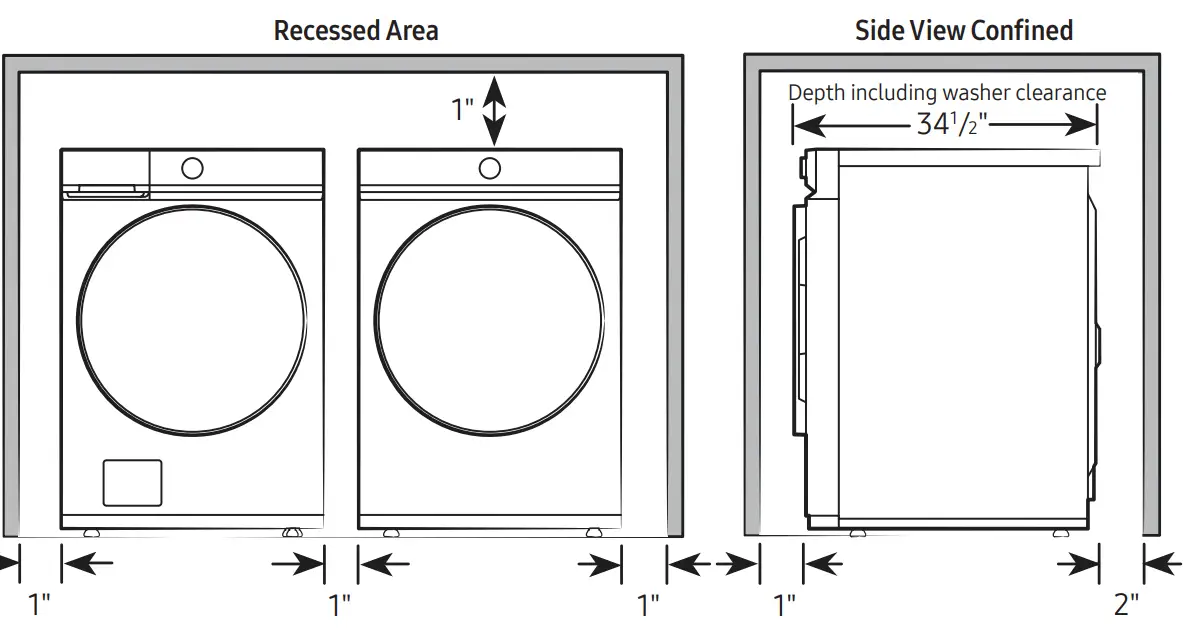

Installation Specifications – Side-by-Side

If the washer and dryer are installed together or the dryer alone, the closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2. Your washer alone does not require a specific air opening.

Alcove or closet installation
Minimum clearance for closet and alcove installations:

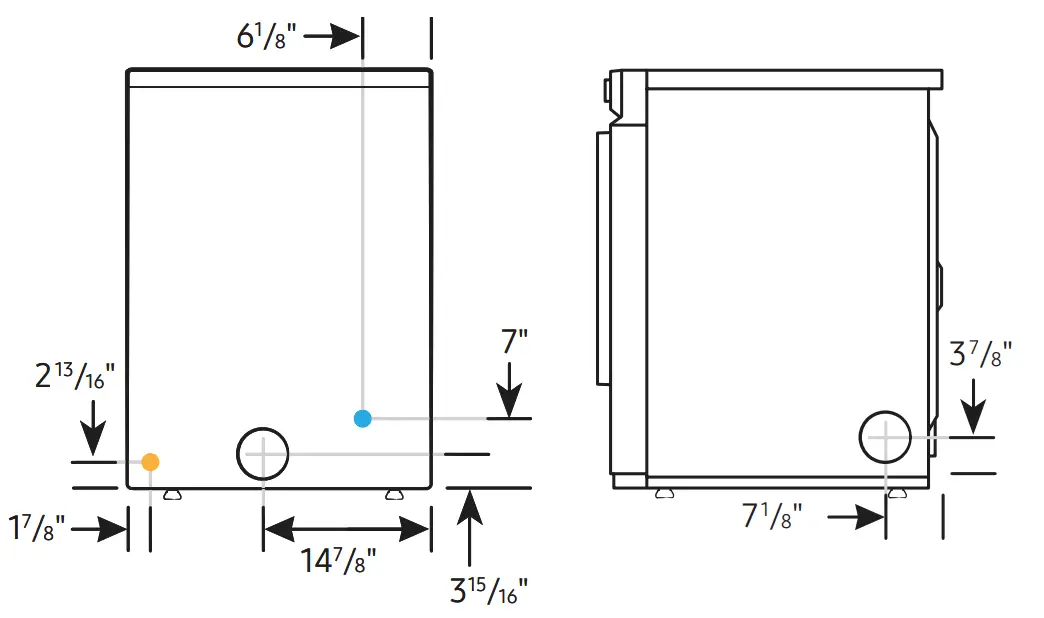

Connection Dimensions

Back and side view of dryer

LEGEND:

Cold Water Connection
Gas Connection

Actual color may vary. Design, specifications, and color availability are subject to change without  notice. Non-metric weights and measurements are approximate.

©2022 Samsung Electronics America, Inc., 85 Challenger Road, Ridgefield Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.

Installation Specifications – Stacked Pair

Clearances indicated are for stacked pairs. The closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2.

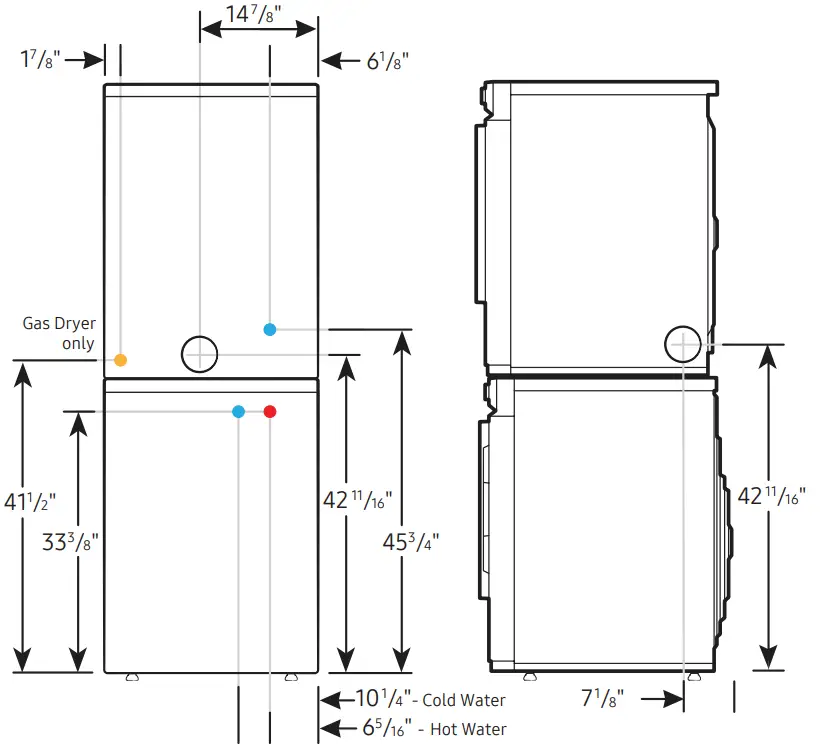

Connection Dimensions

Back and side views of stacked pair

LEGEND:

Cold Water Connection
Hot Water Connection
Gas Connection

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
