Samsung Dvg46bg6500v Smart Dial Gas Dryer Instructions

DVG46BG6500V Smart Dial Gas Dryer
Instructions

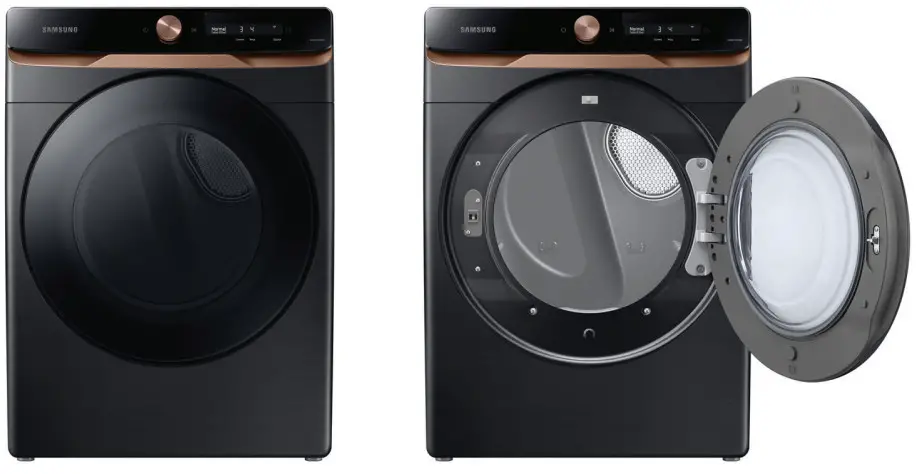

DVG46BG6500V
7.5 cu. ft. AI Smart Dial Gas Dryer with Super Speed Dry
and MultiControl™

DVG46BG6500V Smart Dial Gas Dryer

Features

• Super Speed Dry
• AI Smart Dial
• MultiControl™
• Steam Sanitize+
• ENERGY STAR®Certified
• Flexible Installation
• Wi-Fi Connectivity1
• Sensor Dry
• Large 7.5 cu. ft. Capacity
• Vent Sensor
• Lint Filter Indicator
• Premium Tempered Glass Door
• Interior Drum Light
• Reversible Dryer Door
• ADA Compliant2
• 19 Total Drying Cycles
• 14 Options
• 5 Temperature Settings
• 9 Timed Dry Settings
• 3-Way Venting

Convenience

• Child Lock
• Filter Check Indicator

Electrical Requirements
120 V / 60 Hz
15 Amps

Specifications

19 Total Drying Cycles:
Steam Refresh, Wrinkle Away, Steam Sanitize+,Super Speed, Eco Normal, Normal, Heavy Duty, Towels, Permanent Press, Activewear, Bedding, Delicates, Wool, Shirts,  Denim, Time Dry, Air Fluff, Small Load, Rack Dry
14 Options:
Damp Alert, Wrinkle Prevent, AntiStatic, My Cycles, Smart Control, Eco Dry, Drum Light, Child Lock, Alarm, AI Pattern, Wi-Fi, Language, Vent Blockage Test, Factory Reset
5 Temperature Settings:
High, Medium, Medium Low, Low, Extra Low

Available Color
Brushed Black
DVG46BG6500V

5 Dry Levels:
Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Warranty
One (1) Year Parts and Labor
Product Dimensions & Weight (WxHxD)
Dimensions: 27″ x 383 /4″ x 31 5 /16″
Weight: 119 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 29 3 /8″ x 42 9 /16″ x 33 1 /2″
Weight: 125.7 lbs

¹ Requires wireless network, Samsung account and SmartThings App. The Samsung SmartThings App supports Android OS 4.0 (ICS) or later which is optimized for Samsung smartphones (Galaxy S and Galaxy Note series). This app also supports iOS 7 or later for iPhone models. SmartThings App available in App Store and Play Store. Only monitoring enabled on Gas Dryers for safety reasons.
²ADA Compliant when using 27″ wide riser. (Riser model codes: WE272NV, WE272NW, WE272NC)

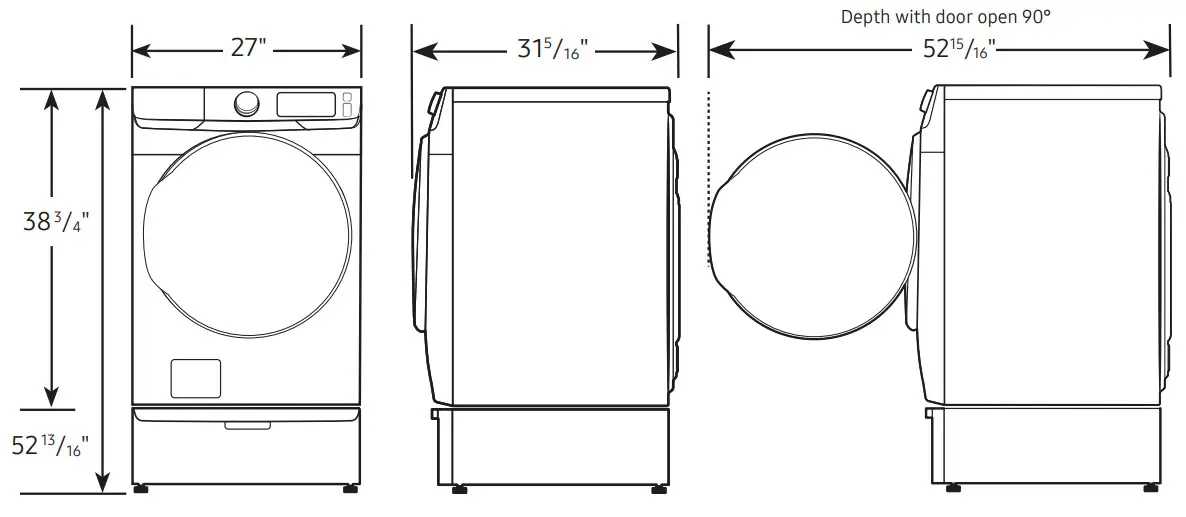

Dimensions

Required dimensions for installation with pedestal:

Installation Specifications – Side-by-Side
If the washer and dryer are installed together or the dryer alone, the closet front must have two unobstructed air openings for a combined minimum total area of 72-inch².
Your washer alone does not require a specific air opening.

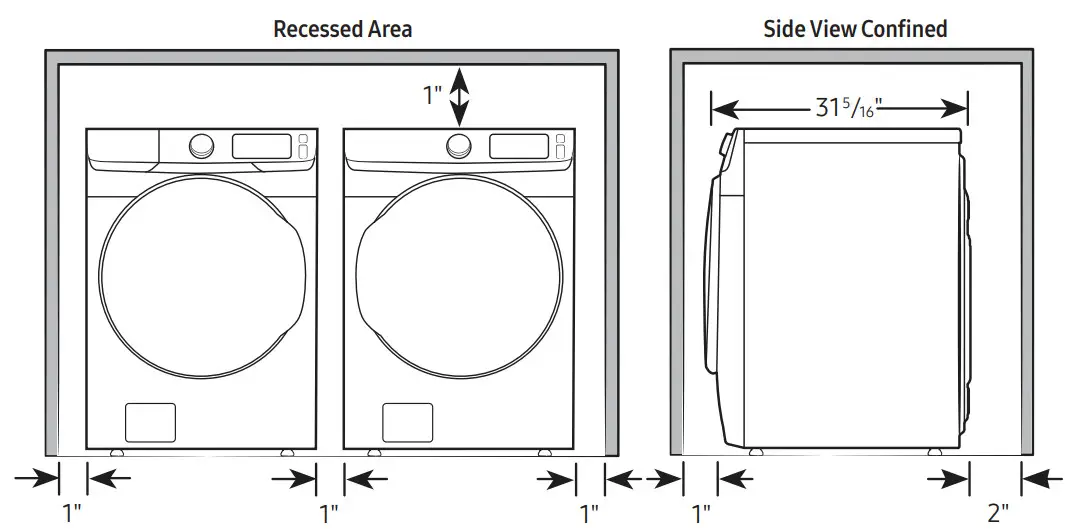

Alcove or closet installation
Minimum clearance for closet and alcove installations:

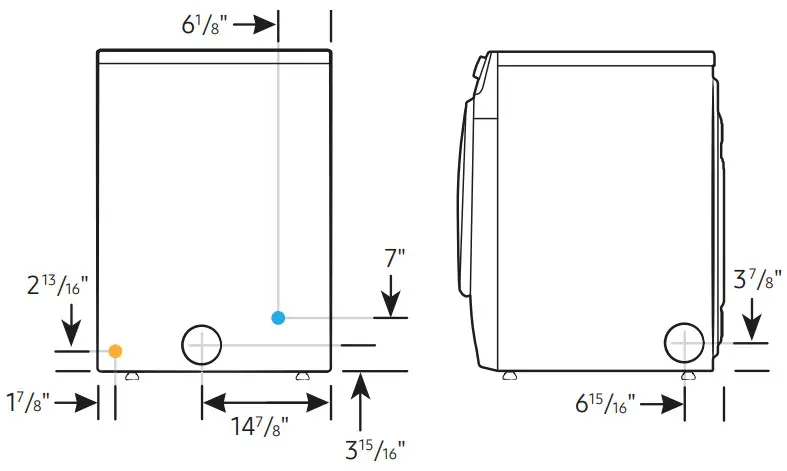

Connection Dimensions
Back and side view of dryer

LEGEND:
Cold Water Connection
Gas Connection

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

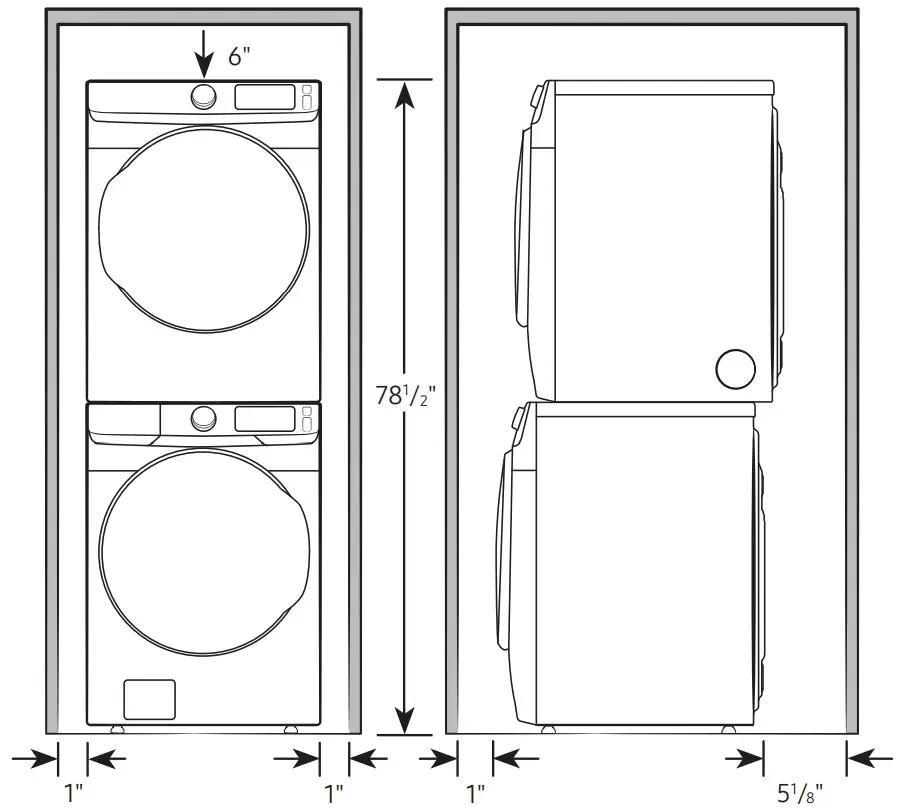

Installation Specifications – Stacked Pair
Clearances indicated are for stacked pairs. The closet front must have two unobstructed air openings for a combined minimum total area of 72-inch².

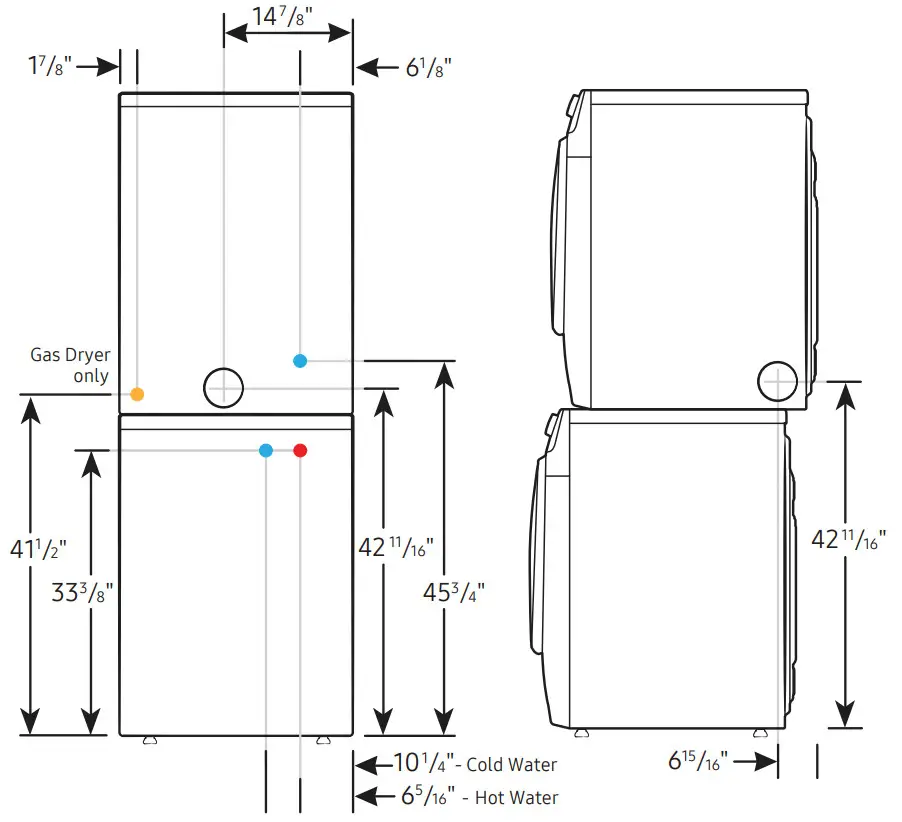

Connection Dimensions
Back and side views of stacked pair LEGEND:

Cold Water Connection
Hot Water Connection
Gas Connection

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

©2022 Samsung Electronics America, Inc.,
85 Challenger Road, Ridgefield Park, NJ 07660.
Tel: 800-SAMSUNG. samsung.com. Samsung is a
registered trademark of Samsung Electronics Co., Ltd.
