DVG50BG8300 Smart Gas Dryer with Steam Sanitize Plus and Sensor
Dry Instructions
DVG50BG8300
7.5 cu. ft. Smart Gas Dryer with Steam Sanitize+ and Sensor Dry

DVG50BG8300 Smart Gas Dryer with Steam Sanitize Plus and Sensor Dry

Features

• Steam Sanitize+
• ENERGY STAR® Certified
• Flexible Installation
• Wi-Fi Connectivity1
• Sensor Dry
• 7.5 cu. ft. Ultra Capacity
• Vent Sensor
• Lint Filter Indicator
• Stainless Steel Drum
• Premium Tempered Glass Door
• Closet-Depth Fit²
• Internal Drum Light
• Reversible Dryer Door
• Smart Care
• ADA Compliant³
• 21 Total Drying Cycles
• 10 Options
• 5 Temperature Settings
• 3-Way Venting

Convenience

• Child Lock
• Filter Check Indicator

Electrical Requirements
120 V / 60 Hz
15 Amps

Specifications

12 Preset Drying Cycles:
Refresh, Steam Sanitize+, Normal, Heavy Duty, Permanent Press, Activewear, Bedding, Delicates, Time Dry, Air Fluff, Quick Dry, Downloaded
9 Downloadable Drying Cycles:
Wrinkle Away, Eco Normal, Towels, Wool, Sanitize, Shirts, Denim, Low Temp, Rack Dry
10 Options:
Damp Alert, Wrinkle Prevent, Smart Control, Adjust Time (Up), Adjust Time (Down), Eco Dry, Alarm Off, Drum Light, Smart Care, Child Lock

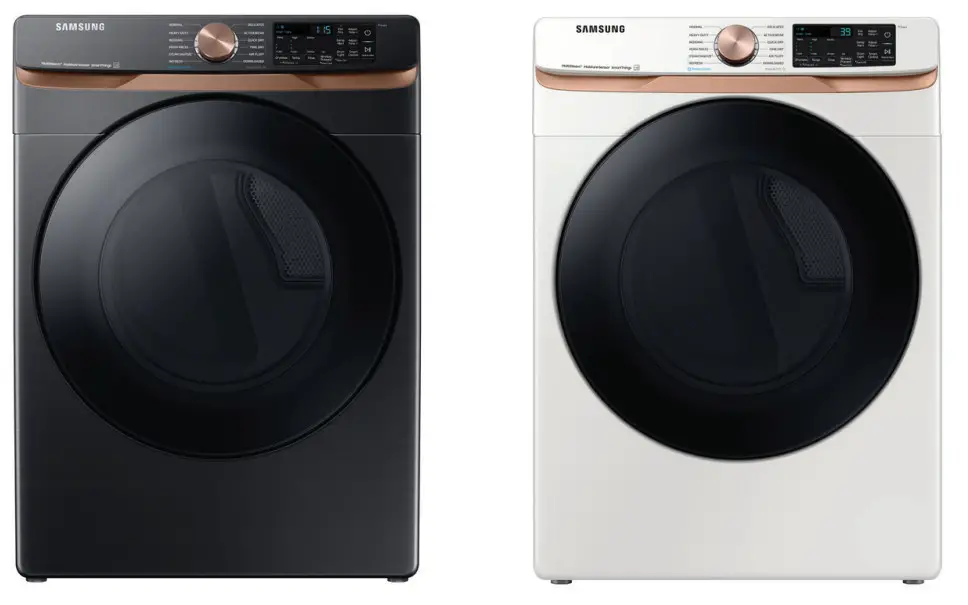

Available Colors
Brushed Black
DVG50BG8300V
Ivory
DVG50BG8300E

5 Temperature Settings:
High, Medium High, Medium, Medium Low, Low
5 Dry Levels:
More Dry, Normal-More Dry, Normal Dry,
Normal-Less Dry, Less Dry
Warranty
One (1) Year Parts and Labor
Product Dimensions & Weight (WxHxD)
Dimensions: 27″ x 38 3 /4″ x 31 7 /16″
Weight: 119 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 29 3 /8″ x 42 9 /16″ x 34 11 /16″
Weight: 125.7 lbs

¹ Requires wireless network, Samsung account and SmartThings App. The Samsung SmartThings App supports Android OS 4.0 (ICS) or later which is optimized for Samsung smartphones (Galaxy S
and Galaxy Note series). This app also supports iOS 7 or later for iPhone models. SmartThings App available in App Store and Play Store. Only monitoring enabled on Gas Dryers for safety reasons.
² Designed to fit a 40″ installation depth.
³ ADA Compliant when using 27″ wide riser. (Riser model codes: WE272NV, WE272NW, WE272NC)

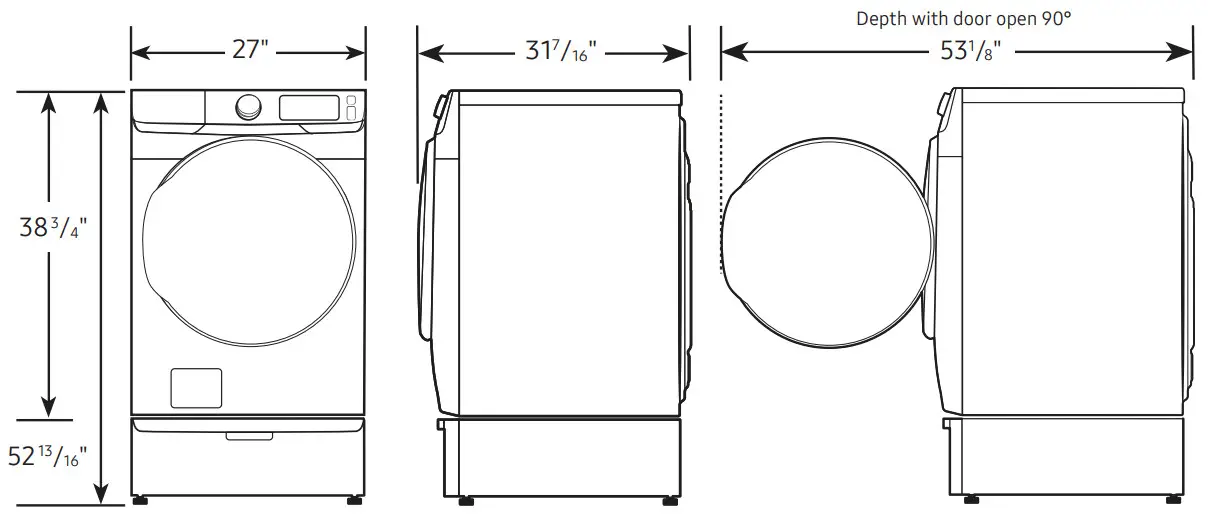

Dimensions

Required dimensions for installation with pedestal:

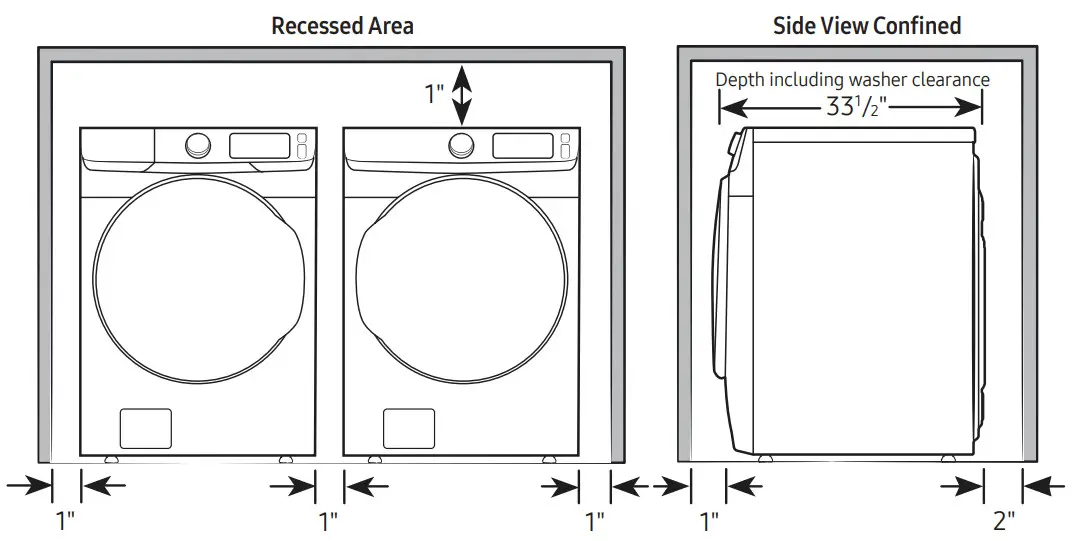

Installation Specifications – Side-by-Side
If the washer and dryer are installed together or the dryer alone, the closet front must have two unobstructed air openings for a combined minimum total area of 72-inch². Your washer alone does not require a specific air opening.
Alcove or closet installation
Minimum clearance for closet and alcove installations:

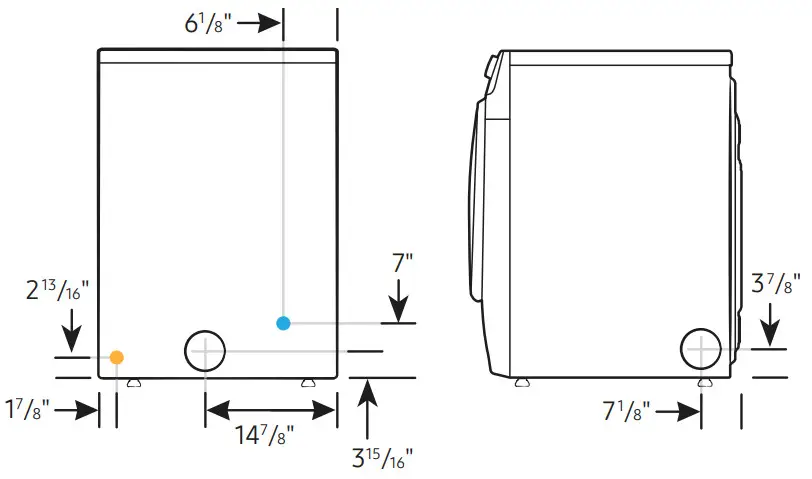

Connection Dimensions

Back and side view of dryer

LEGEND:

Cold Water Connection
Gas Connection
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

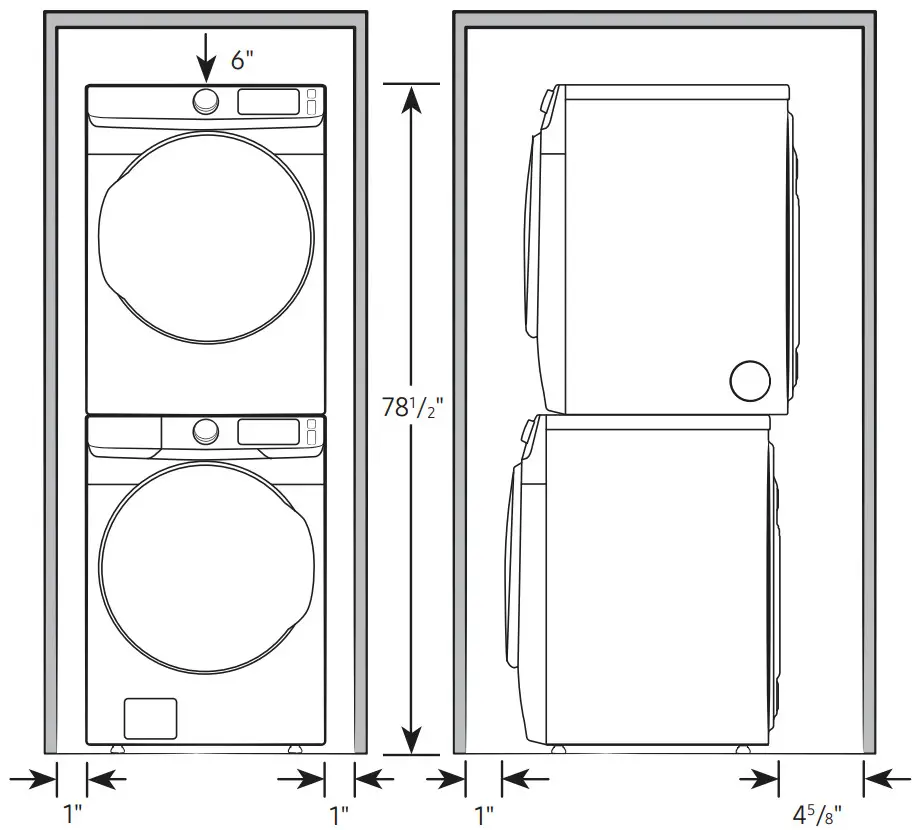

Installation Specifications – Stacked Pair
Clearances indicated are for stacked pairs. The closet front must have two unobstructed air openings for a combined minimum total area of 72-inch².

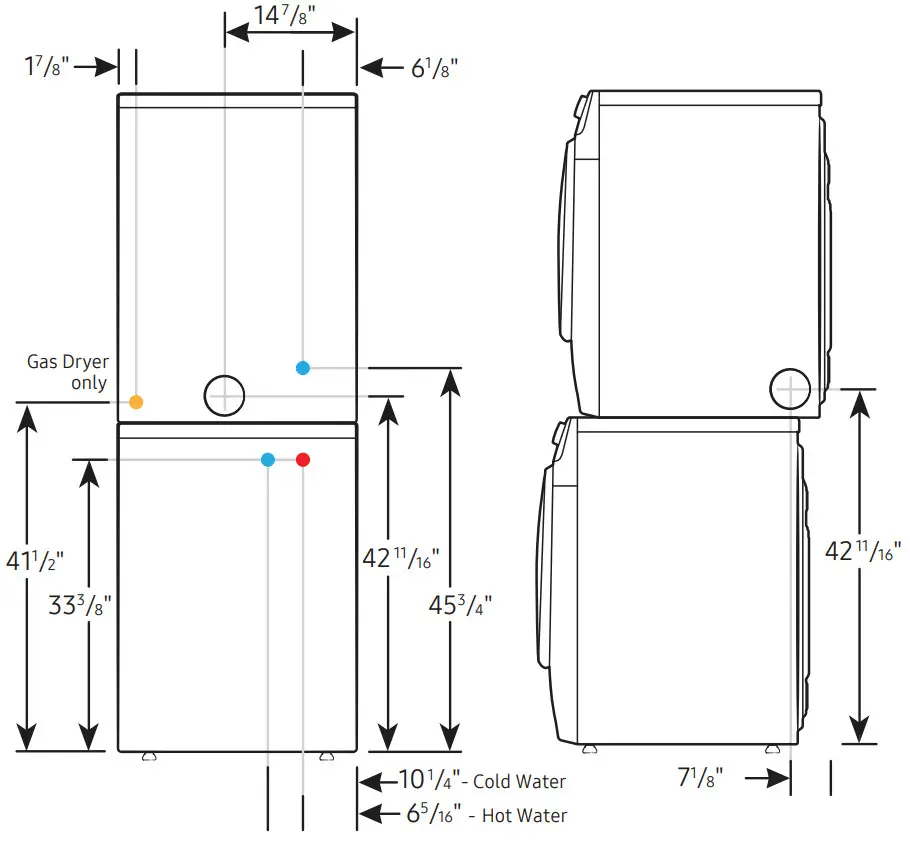

Connection Dimensions
Back and side views of stacked pairLEGEND:
Cold Water Connection
Hot Water Connection
Gas Connection

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
