Samsung Dve45b6300p 7.5 Cu. Ft. Smart Electric Dryer With Steam Sanitize User Manual

DVE45B6300P 7.5 cu. ft. Smart Electric Dryer with Steam Sanitize
User Manual

DVE45B6300W I DVE45B6300C I DVE45B6300P
Samsung 7.5 cu. ft. Smart Electric Dryer
with Steam Sanitize+

DVE45B6300P 7.5 cu. ft. Smart Electric Dryer with Steam Sanitize

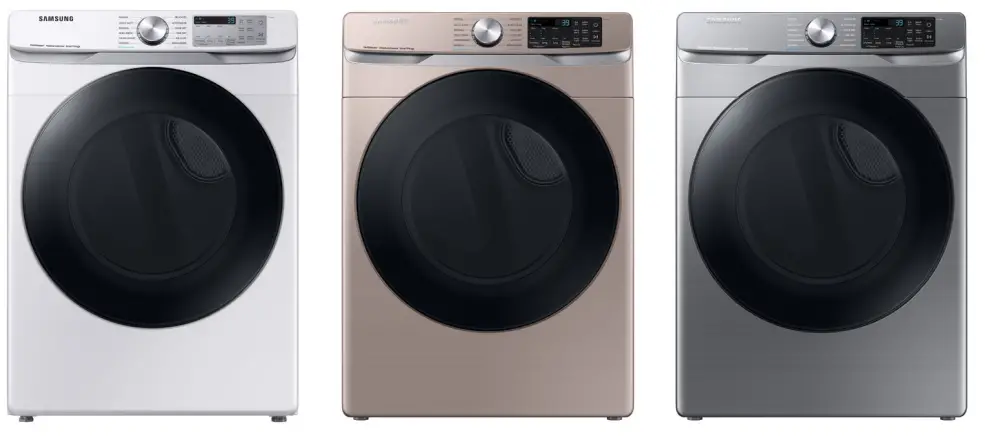

Available Colors
White
DVE45B6300W
Champagne
DVE45B6300C
Platinum
DVE45B6300P

Features

• Wi-Fi Connectivity 1
• Steam Sanitize+
• Sensor Dry
• Scratch-Resistant Tempered
  Glass Door
• Interior Drum Light
• Reversible Door
• Large 7.5 cu. ft. Capacity
• Lint Filter Indicator
• ADA Compliant 2
• Accessibility (AUI, Braille)
• 21 Total Drying Cycles
• 10 Options
• 5 Temperature Settings
• 4-Way Venting

Convenience

• Child Lock
• Filter Check Indicator

Ratings
644 kWh/yr
Electrical Requirements
240 V / 60 Hz
30 Amps

Specifications

21 Total Drying Cycles: Refresh, Steam Sanitize+, Normal, Heavy Duty, Permanent Press, Activewear, Bedding, Delicates, Time Dry, Air Fluff, Quick Dry, Downloaded,  Wrinkle Away, Eco Normal, Towels, Wool, Sanitize, Shirts, Denim, Low Temp, Rack Dry
10 Options:
Damp Alert, Wrinkle Prevent, Smart Control, Adjust Time (Up), Adjust Time (Down), Eco Dry, Sound, Drum Light, Smart Care, Child Lock
5 Temperature Settings:
High, Medium High, Medium, Medium Low, Low

5 Dry Levels:
More Dry, Normal-More Dry, Normal Dry,
Normal-Less Dry, Less Dry
Warranty
One (1) Year Parts and Labor
Product Dimensions & Weight (WxHxD)
Dimensions: 27″ x 38 3/4″ x 31 5/16″
Weight: 116.8 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 29 3 /8″ x 42 9 /16″ x 33 1 /2″
Weight: 123.5 lbs

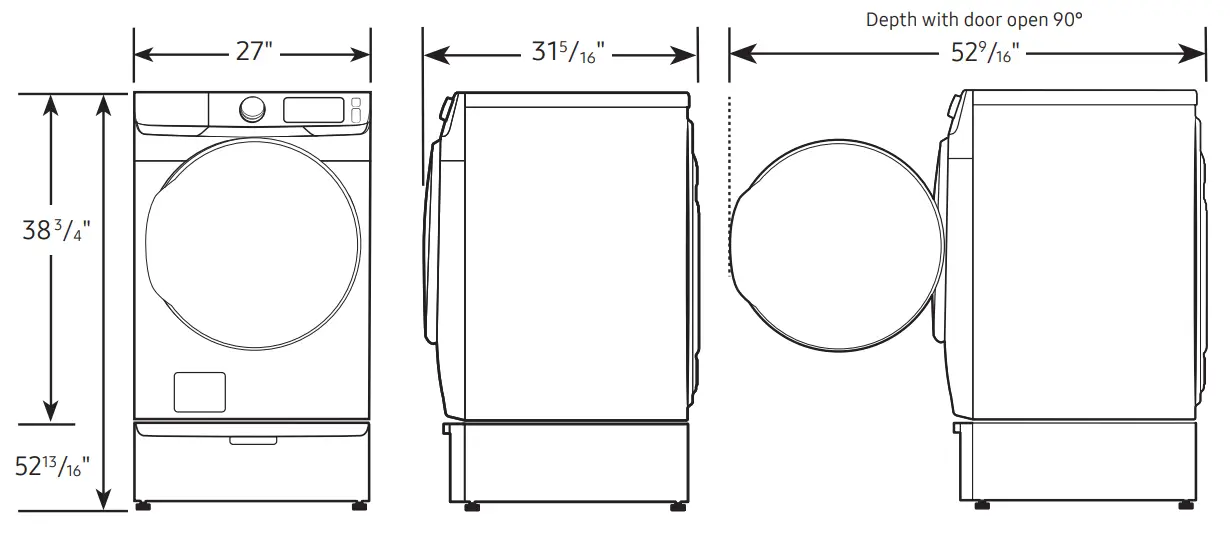

Dimensions

Required dimensions for installation with pedestal:

Installation Specifications – Side-by-Side
If the washer and dryer are installed together or the dryer alone, the closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2 . Your washer alone does not require a specific air opening.

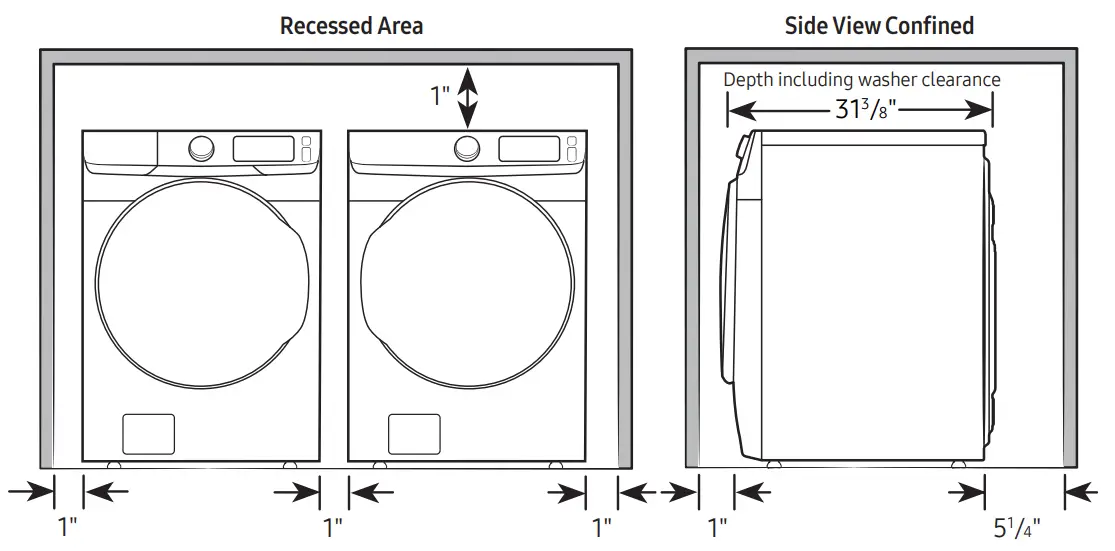

Alcove or closet installation Minimum clearance for closet and alcove installations:

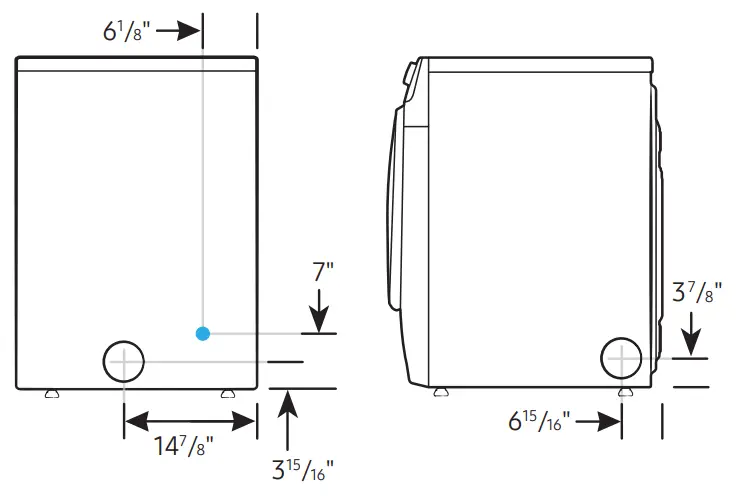

Connection Dimensions

Back and side view of dryer

LEGEND:
Cold Water Connection

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

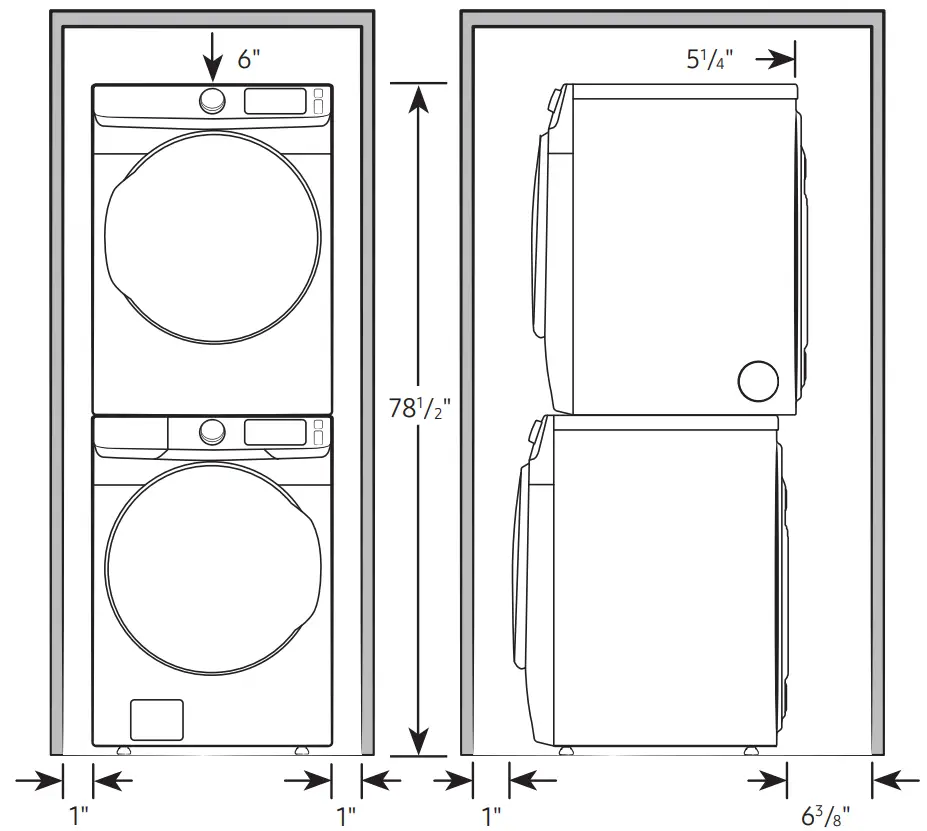

Installation Specifications — Stacked Pair
Clearances indicated are for stacked pairs. The closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2.

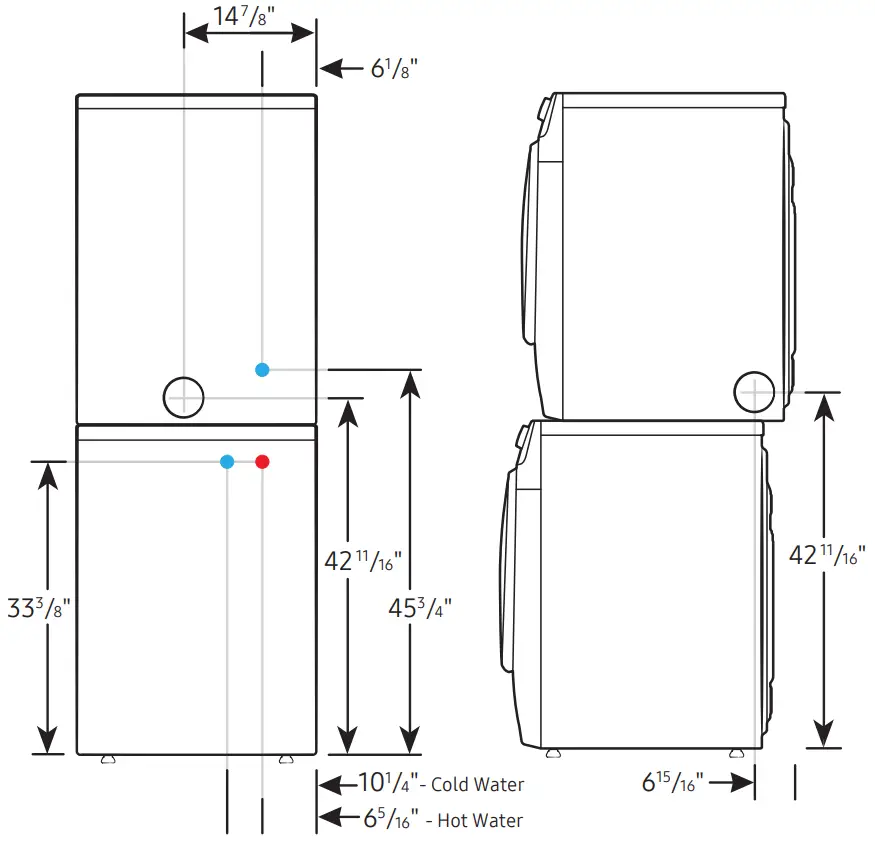

Connection Dimensions
Back and side views of stacked pair

LEGEND:
Cold Water Connection
Hot Water Connection
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

©2022 Samsung Electronics America, Inc.,
85 Challenger Road, Ridgefield Park, NJ 07660.
Tel: 800-SAMSUNG. samsung.com.
Samsung is a registered trademark of Samsung
Electronics Co., Ltd.
