SAMSUNG DV53BB8900HDA2 Bespoke Ultra Capacity Ventless Hybrid Heat Pump Dryer
Features
- Ventless Hybrid Heat Pump1
- Bespoke Design
- AI Optimal Dry
- AI Smart Dial
- MultiControl™
- Sanitize
- Self Dry
- ENERGY STAR® Certified
- Shallow Closet-Depth Fit2
- Flexible Installation
- Wi-Fi Connectivity3
- Sensor Dry
- Large 7.8 cu. ft. Ultra Capacity
- Lint Filter Indicator
- Stainless Steel Drum
- 360 Air Flow
- 3 Layered Filter System
- Premium Tempered Glass Door
- Internal Drum Light
- Reversible Dryer Door
- ADA Compliant4
- 21 Total Drying Cycles
- 13 Options
- 4 Temperature Settings
Specifications
21 Preset Drying Cycles:
AI Optimal Dry, Super Speed, Eco Normal, Normal, Towels, Permanent Press, Activewear, Bedding, Delicates, Wool, Sanitize, Shirts, Denim, Blouses, Iron Dry, Time Dry, Air Fluff, Air Bedding Care, Down Jacket Care, Outdoor Care, Self Dry
13 Options:
Damp Alert, Wrinkle Prevent, My Cycles, Smart Control, Drum Light, Optional Filter, Child Lock, Alarm, AI Pattern, Wi-Fi, Language, Factory Reset, Calibration
4 Temperature Settings:
High, Medium, Low, Extra Low
4 Dry Levels:
More Dry, Normal Dry, Less Dry, Damp Dry
| Heat Pump Dryer | Model # | UPC Code |
| Brushed Navy | DV53BB8900HDA2 | 887276716268 |
| Matching Electric Dryer | ||
| Brushed Navy | DVE53BB8900D | 887276657257 |
| Matching Gas Dryer | ||
| Brushed Navy | DVG53BB8900D | 887276657318 |
| Matching Washer | ||
| Brushed Navy | WF53BG8900AD | 887276652252 |
- Available Color
Brushed Navy DV53BB8900HDA2
Warranty
One (1) Year Parts and Labor
- Product Dimensions & Weight (WxHxD) Dimensions: 27″ x 383/4″ x 343/8″ Weight: 172 lbs
- Shipping Dimensions & Weight (WxHxD) Dimensions: 293/8″ x 433/16″ x 3515/16″ Weight: 183 lbs
Optional Accessories Model # UPC Code Brushed Navy Pedestal WE502ND 887276665276 Brushed Navy Bespoke Heat Pump Stacking & MultiControl™ Combo Kit SKK-9ALD
887276722054
Convenience
- Child Lock
- Filter Check Indicator
Ratings
ENERGY STAR® Rated: 281 kWh/yr
Electrical Requirements
- 240 V / 60 Hz
- 14 Amps
1 Tested in accordance with Department of Energy automatic termination test procedure, (also known as D2), normal cycle, 8.45 lb load with Ventless Hybrid Heat Pump (DV53BB8900HDA2)
vs. Vent (DVE53BB8900*A3). Actual results may vary depending on individual use. 2 Designed to fit a 38″ installation depth. 3Requires wireless network, Samsung account and Samsung SmartThings App. The Samsung Smart Things App supports Android OS 4.0 (ICS) or later which is optimized for Samsung smartphones (Galaxy S and Galaxy Note series). This app also supports iOS 7 or later for iPhone models. Samsung SmartThings App available in App Store and Play Store. 4ADA Compliant when using 27″ wide riser (Riser model codes: WE272NV, WE272NC, WE272NP).

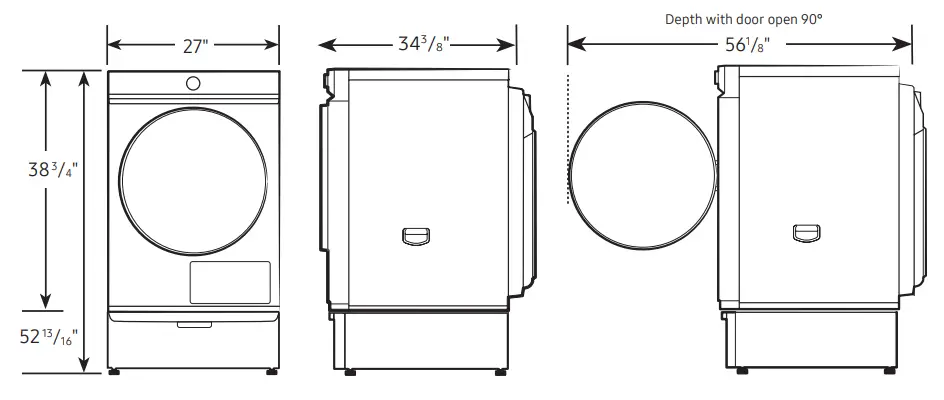

Dimensions
Required dimensions for installation with pedestal:

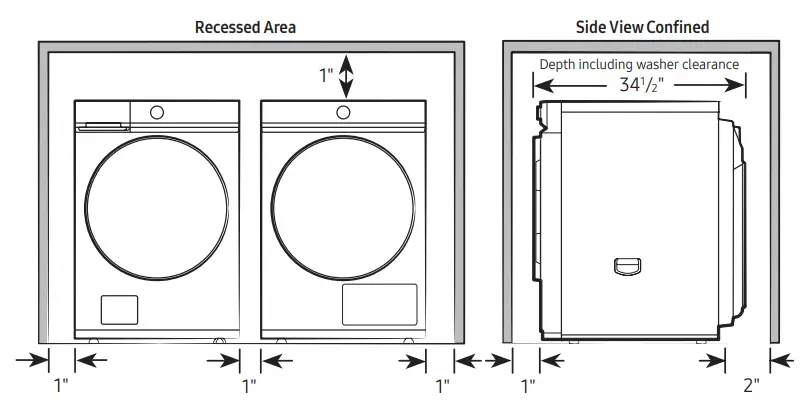

Installation Specifications – Side-by-Side or Stand-Alone
If the washer and dryer are installed together or the dryer alone, the closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2. Your washer alone does not require a specific air opening.
- Alcove or closet installation
Minimum clearance for closet and alcove installations:
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate. ©2022 Samsung Electronics America, Inc., 85 Challenger Road, Ridgefield Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.

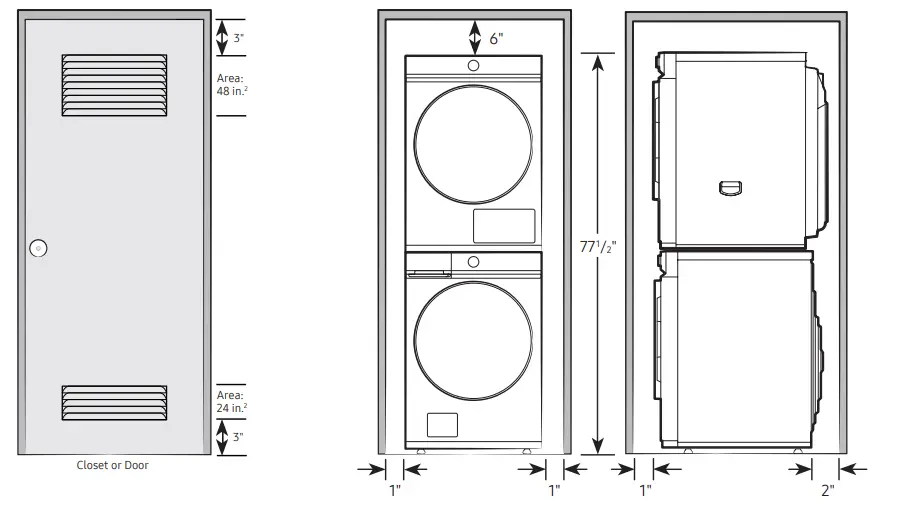

Installation Specifications – Stacked Pair
Clearances indicated are for stacked pairs. The closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2.

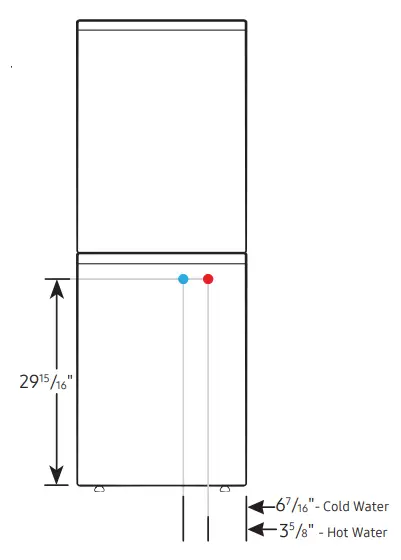

Connection Dimensions
Back and side views of stacked pair
LEGEND:
- Cold Water Connection
- Hot Water Connection
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate. ©2022 Samsung Electronics America, Inc., 85 Challenger Road, Ridgefield Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
