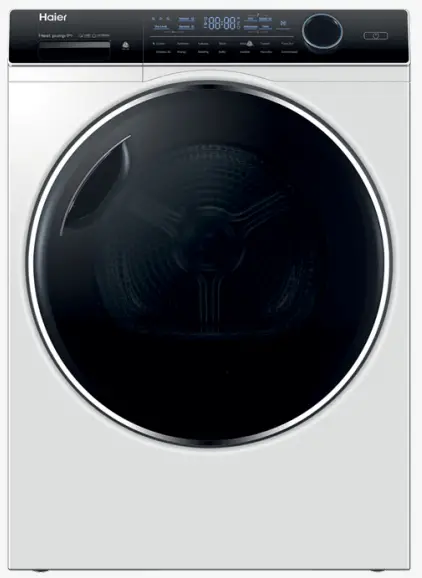

HDHP90AN1
Heat Pump Dryer
User Guide
Heat pump technology dries at a lower temperature to look after your clothes, while no venting to the outside is needed.
- With 14 dry cycles including Express 30, Wool, and Rack Dry
- Boasting an 8-star energy rating
- Shorten your drying time when in a hurry, with the advanced Speed Up option
- Advanced Anti-Tangling Technology uses reverse tumbling on nearly every cycle, significantly reducing the tangling of clothes and sheets
DIMENSIONS
| Height | 845 mm |
| Width | 595 mm |
| Depth | 675 mm |
FEATURES & BENEFITS
8-star energy rating
Energy-efficient drying thanks to heat pump technology. Dry at low temperatures to protect clothes from wear.
14 dry cycles
With a specialized dry cycle for a variety of fabrics, including Shirts and a Wool cycle that is certified by Woolmark. A drying rack is included for the Rack Dry cycle.
Hybrid Boost technology
With Hybrid Boost technology you can choose to save time by drying at a hotter temperature, or save energy with a longer dry time – as seen in the Express 30 cycle and the Eco and the Speed Up options.
Refresh cycle
The short Refresh cycle uses ultrasonic technology that releases steam into the drum – great to refresh clothes that have been folded or stored.
Anti-Tangling Technology
A unique air circulation system and advanced reverse tumbling significantly reduce the tangling of clothes and sheets on all dry cycles except Rack Dry. Meanwhile, a pillow drum cushions laundry and helps care for clothes better.
Healthier living
The high-temperature Sanitise dry option ensures dust mites are removed and kills more than 99.99% of bacteria*, for clean, healthy clothes and fabrics.
Wi-Fi compatibility
This dryer is Wi-Fi enabled, with remote access and future compatibility for smart home appliances thanks to ongoing software updates.
SPECIFICATIONS
| Capacity | |
| Total capacity | 9kg |
| Consumption | |
| Energy rating | 8 stars |
| Dry Cycles | |
| Allergy | • |
| Bedding | • |
| Bulky | • |
| Cotton | • |
| Delicate | • |
| Downloaded | • |
| Durable | • |
| Express 30 | • |
| Number of cycles | 14+ |
| Rack dry | 20, 40, 60, 90, 120, 180 mins |
| Refresh | • |
| Shirts | • |
| Synthetics | • |
| Time dry | 20, 40, 60, 90, 120, 180 mins |
| Towels | • |
| Wool | • |
| Features | |
| Adjustable feet height | • |
| Anti-crease function | 1 – 12 hours (1-hour increments) |
| Drain hose | included |
| Drum light | • |
| Eco mode | • |
| Favorite mode | • |
| Keylock | • |
| No external venting | • |
| Reverse tumbling | • |
| Sanitise care | • |
| Speed up | • |
| Stainless steel drum | • |
| Time to go | • |
| Wi-Fi Capable | • |
| Woolmark certified | • |
| Performance | |
| Dryness levels | 3 (Damp, Dry, Extra Dry) |
| Heat pump technology | • |
| Hybrid Boost | • |
| Quick dry | • |
| Sensor drying | • |
| Start/Pause button | • |
| Timed dry | • |
| Product dimensions | |
| Depth | 675 mm |
| Height | 845 mm |
| Width | 595 mm |
| Warranty | |
| Parts and labor | 2 years |
| SKU | 61435 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
