Fitting instructions
828237
1×25W LED-Board
Not changeable
Instruction Manual

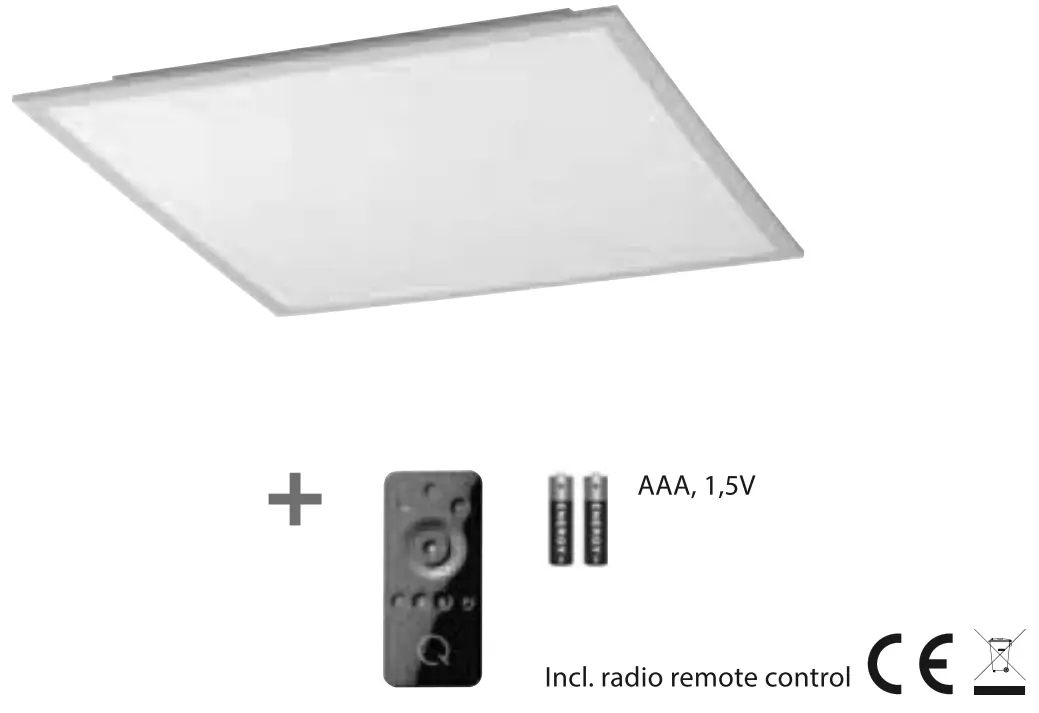

8086 Q-Flag Ceiling Light
 | 25W |  |
| 2.500lm | ||
 | 28W | |
| 1.800lm | ||
| t | 25.000 h | |
| Tk | 3000K / RGB | |
 | 15.000 x | |
| <0.5s | ||
| dimmable with rrc |

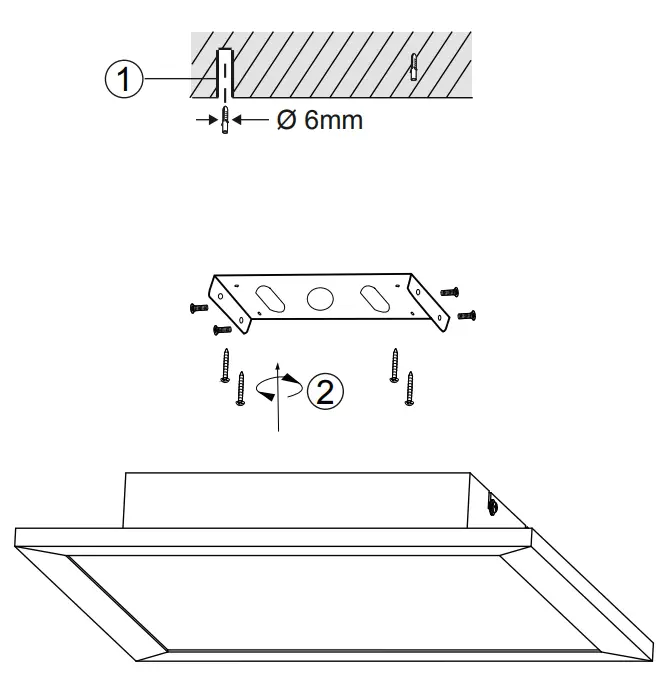

Fitting
As ceiling Light

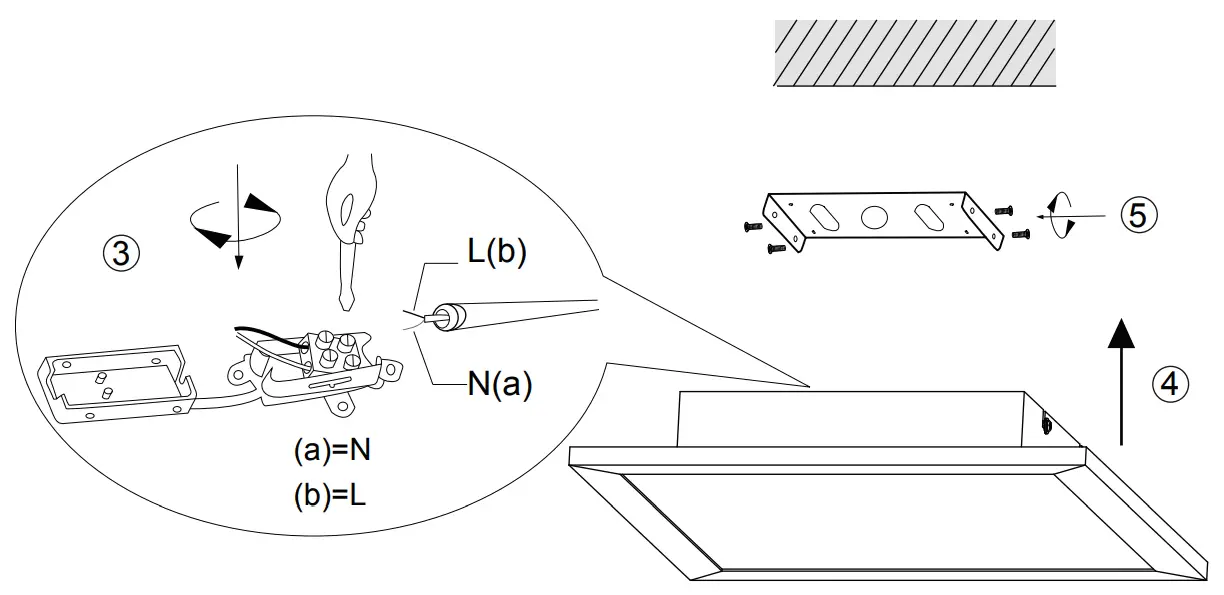

Electrical connection
230 Voltage/50Hz connection

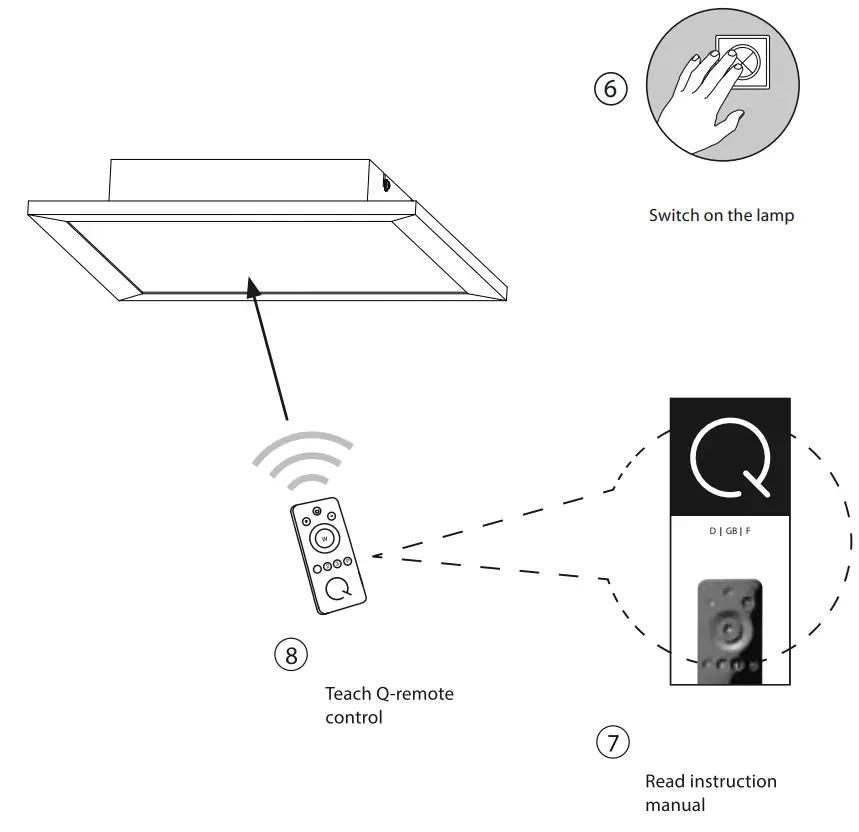

Teach remote control
See Q-remote control manual
 |  |
| http://www.paul-neuhaus.de/cms-wAssets/img/Videos/Q_Video02.mp4 | http://q.paul-neuhaus.de/ |

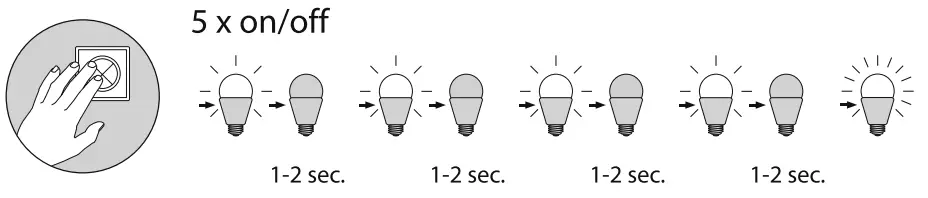

Reset
Reset the lamp, factory new
This device fulfills the fundamental requirements of Directive 2014/53/EU (Radio Equipment Directive) of the European Parliament and of the Council of the European Union dated 16.04.2014 on items of radio equipment.
The full declaration of conformity can be accessed at the Internet address given below.
Paul Neuhaus GmbH Olakenweg 36 • D-59457 Werl
Telefon: +49 (0) 2922-9721-0
Telefax: +49 (0) 2922-9721-9120
E-Mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
