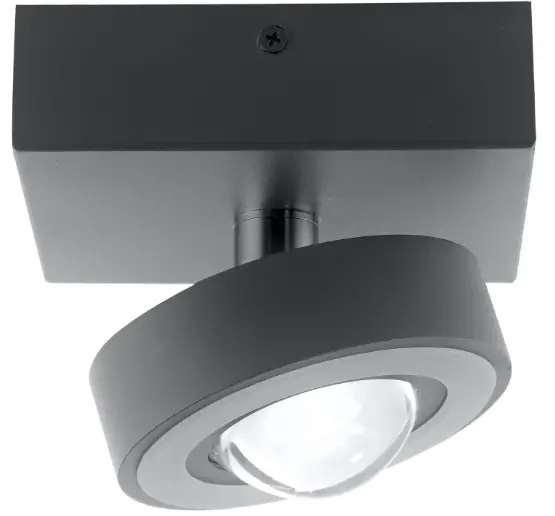

Paul Neuhaus Q-mia 9186-55 Ceiling Light Instruction Manual

Q-MIA 9186-55 Ceiling Light
Instruction Manual

Ftting instructions

Q-MIA 9186-55 Ceiling Light

834419
230V/50Hz~
1x 10WLED-Board
2x 2,8W LED-Board
nicht wechselbar / not changeable
2,4 GHz, 10 dBm

	10 W
	1.000 lm
	11 W
	400 lm
	LED-Board
	25.000 h
	2.700-5.000 K
	15.000 x
	<0,5 s
	dimmable with rrc
	2,8 W
	11 W
	400 lm
	LED-Board
	25.000 h
	RGB
	15.000 x
	<0,5 s
	dimmable with rrc

lncl. radio remote control

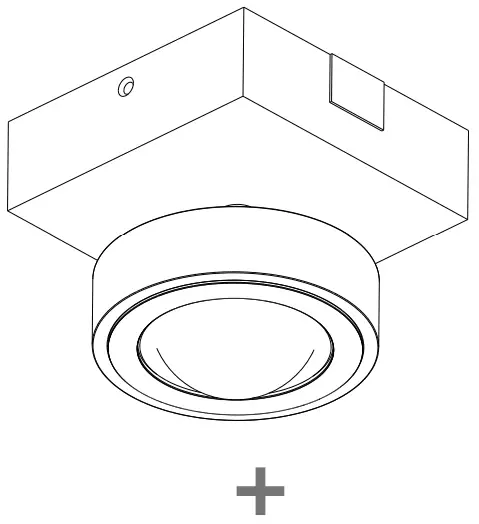

Fitting

As ceiling light

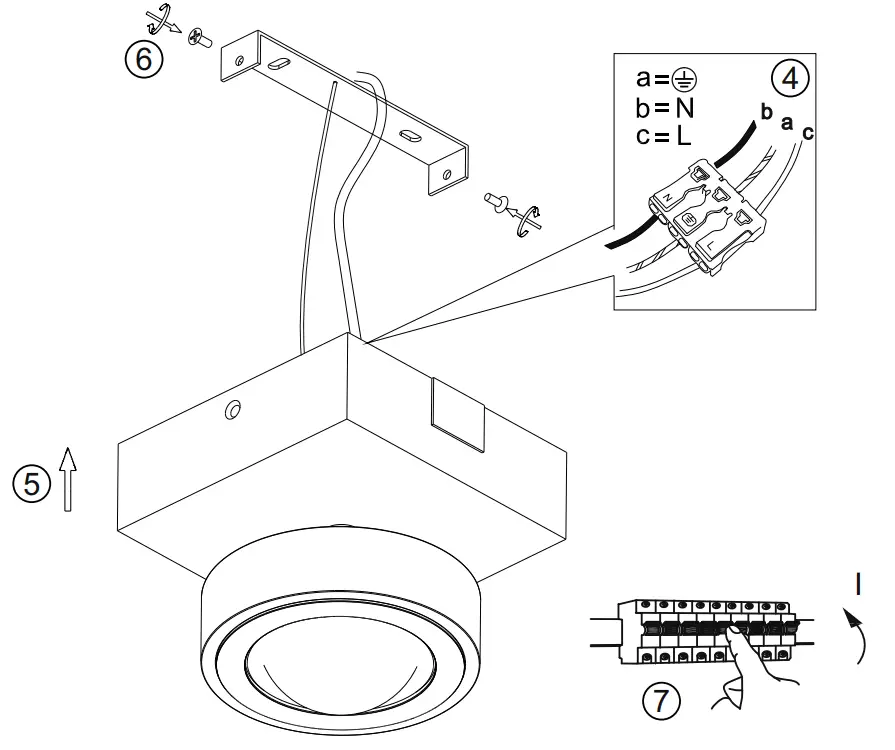

Electrical connection

230 Voltage / 50Hz connection

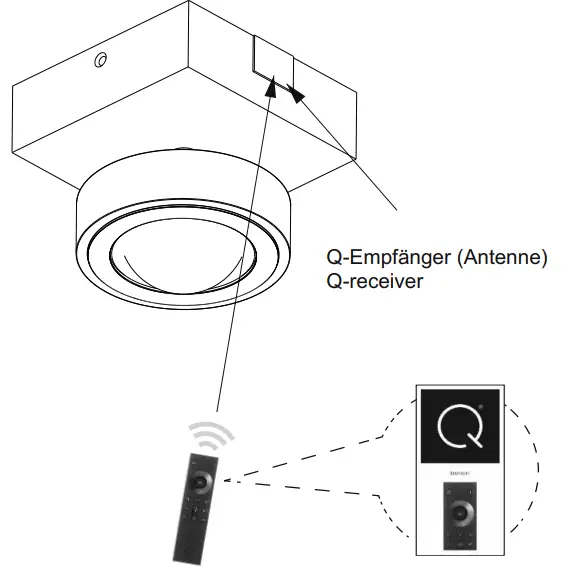

Teach remote control

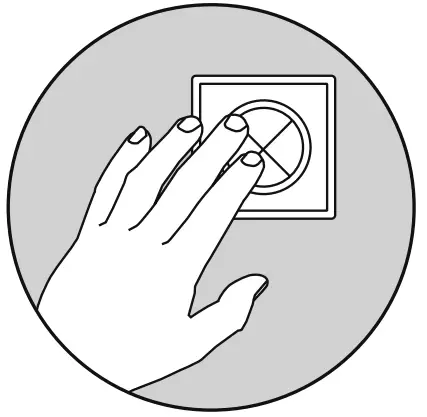

See Q-remote control manualSwitch on the lampTeach Q-Remote control
Read instruction manual

http://www.paul-neuhaus.de/cms-wAssets/img/Videos/Q_Video02.mp4	http://q.paul-neuhaus.de/

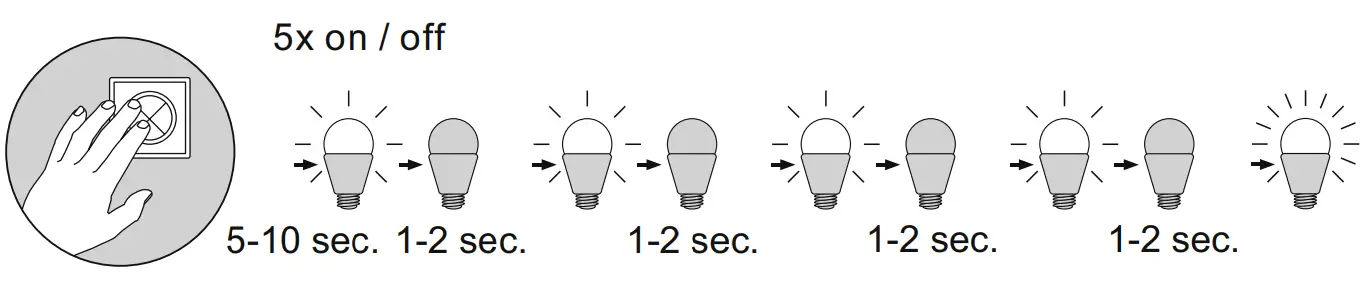

Reset
Reset the lamp, factory new

This device fulfils the fundamental requirements of Directive 2014/53/EU (Radio Equipment Directive) of the European Parliament and of the Council of the European Union dated 16.04.2014 on items of radio equipment.
The full declaration of conformity can be accessed at the Internet-address given below.

Paul Neuhaus GmbH
Olakenweg 36·59457Werl
Germany
Telefon: +49(0)2922-9721-0
Telefax: +49(0)2922-9721-9120
E-mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
