6843-17 Ceiling Light
Instruction Manual
SMART HOME LIGHTS
828310
230V/50 H z∼

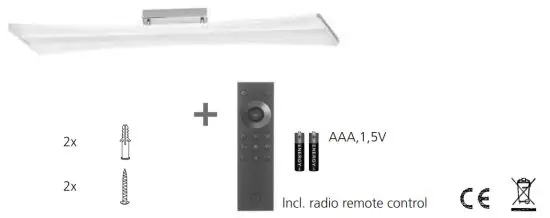

2x 14W LED not changeable
 | 14 W 1.500 Im |
 | 30 W 2.300 Im |
 | LED-Board |
| t | 25.000 h |
 | 3.000 K/ RGB |
 | 15.000 x |
 | < 1 s |
 | dimmable with rrc |

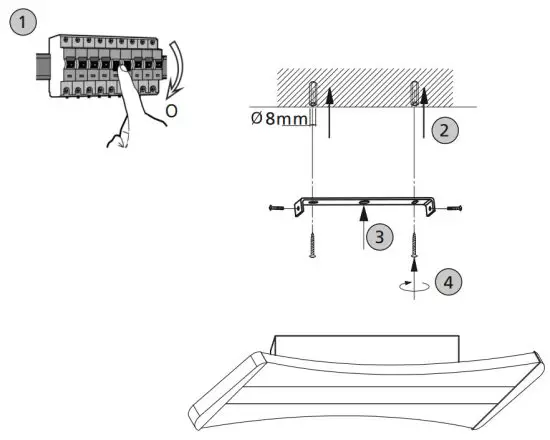

Fitting
As ceiling light

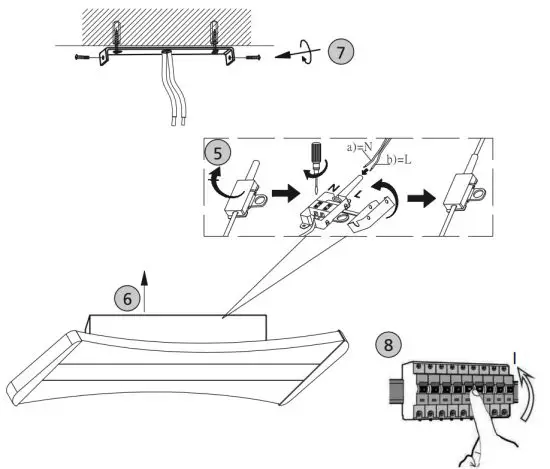

Electrical connection
230 voltage/50 Hz Connection
Teach remote control
See Q – Remote control manual
https://www.paul-neuhaus.de/cms-wAssets/img/Videos/Q/Q-Funktionsfilm_DE.mp4

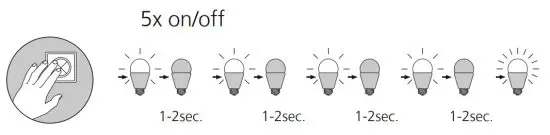

Reset
ResetReset the lamp, factory new
This device fulfills the fundamental requirements of Directive 2014/53/EU (Radio Equipment Directive) of the European Parliament and of the Council of the European Union dated 16.04.2014 on items of radio equipment. The full declaration of conformity can be accessed at the Internet address given below.
Paul Neuhaus GmbH
Olakenweg 36. D – 59457 Werl
Telefon: + 49 (0) 29 22-97 21- 0
Telefax: + 49 (0) 29 22-97 21- 9120
E-mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
