White Rodgers 1f95u-42wf Sensi Touch Smart Thermostat Instructions

1F95U-42WF Sensi Touch Smart Thermostat
Instructions

1F95U-42WF Sensi Touch Smart Thermostat

SMART THERMOSTATS
LOW VOLTAGE

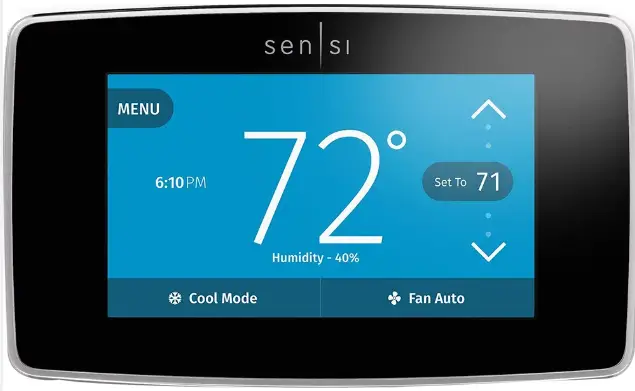

SENSI™ TOUCH SMART THERMOSTAT
Connect to comfort with Sensi Smart Thermostats – Anytime, Anywhere.

FEATURES

• HD color touchscreen display features easy to read temperatures and intuitive menus.
• Easy to install with easy-click terminals and built in level & easy to connect to Wi-Fi with step-by-step guide in the app.
• Contractor-On-Call feature stores your contact information so when your customer needs service, you’re just a tap away. Sign up at sensiregistration.com
• Provides multiple thermostat control for easy management for schools and light commercial applications.
• Smart alerts notify homeowners of extreme temperature and humidity levels.
• Controls humidification and dehumidification
• Circulating fan may improve indoor air quality by helping to regulate temperature.
• ENERGY STAR Certified and Title 24 compliant. Check for eligible utility rebates at Sensi.Emerson.com/rebates
• Saves about 23% of HVAC energy by adjusting the temperature using flexible scheduling, remote access and geofencing.
• Geofencing allows temperatures to change automatically based on the location of the homeowner’s smartphone.
• Integrates directly with smart home platforms including Amazon Alexa, the Google Assistant, Apple HomeKit and Samsung SmartThings.

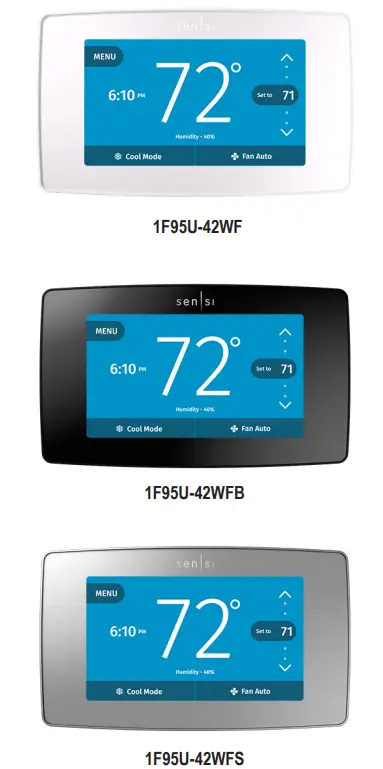

PARTS AND ACCESSORIES

SPECIFICATIONS

Electrical Rating Hardwire ……………………………………………… 30 VAC, NEC Class II, 50/60 Hz
Electrical Rating Battery Power…………………………………………………………………………… N/A
Terminal Load…………. 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
Set-point Range……………………………………………………………………….. 45 to 99°F (7 to 37°C)
Heat Differential (Conventional / Gas / Oil / Elec)……………..Fast 0.5°F, Med. 0.75°, Slow 1.9°F Cool
Differential (Central Air)…………………………………………Fast 0.9°F, Med. 1.2°, Slow 1.7°F
Heat Pump Differential (Heat and Cool) …………………………..Fast 0.9°F, Med. 1.2°, Slow 1.7°F
Aux. Heat Differential …………………………………………………Fast 0.5°F, Med. 0.75°, Slow 1.9°F
Operating Humidity ………………………………………………….0%-90% RH non-condensing max.
Dimensions ………………………………………………………………………. 5.63″W X 3.38″H X 1.00″D
Storage Temperature Range ………………………………………………….-40 to 150°F (-40 to 65°C)

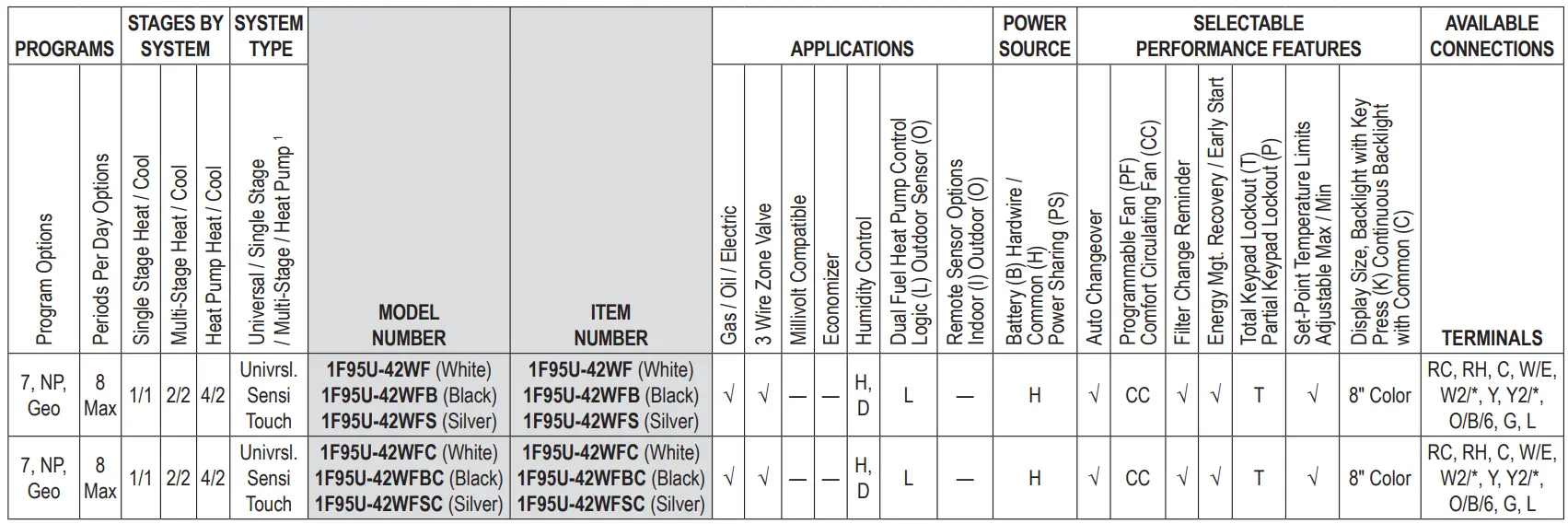

UNIVERSAL – 4 HEAT / 2 COOL SENSI TOUCH WI-FI THERMOSTAT

Universal thermostats provide the flexibility to control Single Stage, Multi-Stage, or Heat Pump systems.
Indicates Canadian Model Number: Call 1-800-305-6953 to order.
