SMART THERMOSTATS
LOW VOLTAGE

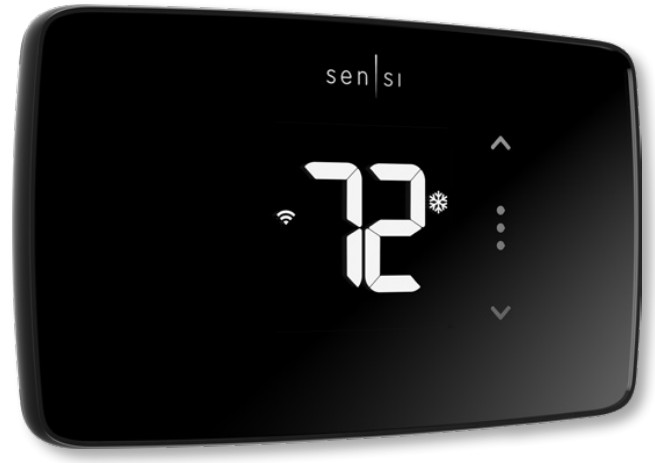

SENSI™ LITE SMART THERMOSTAT
1F76U-22WFB
Features
- Quick and simple installation. No common wire required with most systems.
- Familiar and intuitive controls.
- Your customers usage activity and personal data stays private.
- Aids in monitoring the effectiveness and efficiency of your customers’ HVAC systems by providingvaluableusagereports,equipmentalerts,andmaintenancereminderssuchas filterreplacements.
- Top rated mobile app gives customers total on-the-go access to adjust their thermostat fromanywhere,anytime.
- ENERGY STAR certified. Check for eligible utility rebates at sensi.emerson.com/rebates
- Saves about 23% of HVAC energy by adjusting the temperature using flexible scheduling, remoteaccessandgeofencing.
- Geofencing allows temperatures to change automatically based on the location of the homeowner’ssmartphone.
- Sensi easily integrates with popular smart home platforms including Amazon Alexa, Google Assistant and Samsung SmartThings.
Specifications
Electrical Rating Hardwire ………………………………………………………………………………..20 to 30 VAC, 50/60 Hz
Electrical Rating Battery Power ………………………………………………………………………………………………………N/A
Terminal Load ……………………….1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
Set-point Range ………………………………………………………………………………………………… 45 to 99°F (7 to 37°C)
Heat Differential (Conventional / Gas / Oil / Elec) …………………………..Fast 0.5°F, Med. 0.75°, Slow 1.9°F
Cool Differential (Central Air) …………………………………………………………… Fast 0.9°F, Med. 1.2°, Slow 1.7°F
Heat Pump Differential (Heat and Cool) ………………………………………….. Fast 0.9°F, Med. 1.2°, Slow 1.7°F
Aux. Heat Differential ……………………………………………………………………..Fast 0.5°F, Med. 0.75°, Slow 1.9°F
Operating Humidity ………………………………………………………………………0%-90% RH non-condensing max.
Dimensions …………………………………………………………………………………………. 5.6 in. L X 3.25 in. H X .77 in. D
Storage Temperature Range ………………………………………………………………………. -20 to 150°F (-29 to 65°C)
Parts And Accessories
| DESCRIPTION | MODEL NUMBER | ITEM NUMBER |
| Wallplate (Black) 7″ W X 4.6″ H X 0.24″ D | SA6B | SA6B |
| Wallplate (White) 7″ W X 4.6″ H X 0.24″ D | SA6W | SA6W |
| Thermostat Guard – Clear Plastic | F29-0198 | F29-0198 |
Universal – 2 HEAT/1 COOL OR 1 HEAT/2 COOL Sensi Lite Wi-Fi Thermostat
| 7, NP | Program Options | PROGRAMS |
| 8Max | Periods Per Day Options | |
| 1/1/ | Single Stage Heat / Cool | STAGES BY SYSTEM |
| 2/1or 1/2 | Multi-Stage Heat / Cool | |
| 2/1 | Heat Pump Heat / Cool | |
| UniversalSensi Lite | Universal / Single Stage / Multi-Stage / Heat Pump’ | SYSTEM TYPE |
| 1 F76U-22WFB | MODEL NUMBER | |
| 1F76U-22WFB | ITEM NUMBER | |
 | Gas / Oil / Electric | APPLICATIONS |
| 3 Wire Zone Valve | |
| – | Millivolt Compatible | |
| – | Economizer | |
| – | Humidity Control | |
| L | Dual Fuel Heat Pump Control Logic (L) Outdoor Sensor (0) | |
| – | Remote Sensor Options Indoor (I) Outdoor (0) | |
| H, PS | Battery (B) Hardwire / Common (H) / Power Sharing (PS) | POWERSOURCE |
| Auto Changeover | SELECTABLE PERFORMANCE FEATURES |
| CC | Programmable Fan (PF) Comfort Circulating Fan (CC) | |
| Filter Change Reminder | |
| Energy Mgt. Recovery / Early Start | |
| T | Total Keypad Lockout (T) Partial Keypad Lockout (P) | |
| Set-Point Temperature Limits Adjustable Max / Min | |
| 2.3″LCD | Display Size, Backlight with Key Press (K) Continuous Backlight with Common (C) | |
| R, C, W/E, G, Y, O/B/* | TERMINALS | AVAILABLE CONNECTIONS |
R-4899_3.2.23
