Paul Neuhaus Im-8379-55 Q-amira Ceiling Light Instruction Manual

SMART
HOME
LIGHTS

Fitting instructions

835143

230V / 50Hz~
lx LED-Board 24V DC / 45W
not changeable

2,4 GHz
10 dBm

45 W
4.900 Im
50 W
1.550 Im
t           20.000 h
T_k        2.700 – 5.000 K
  15.000 x
  <0,5s
   dimmable with rrc

AAA, 1.5V                4x 4x

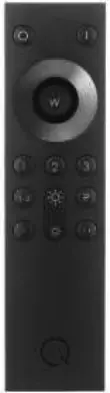

incl. radio remote control

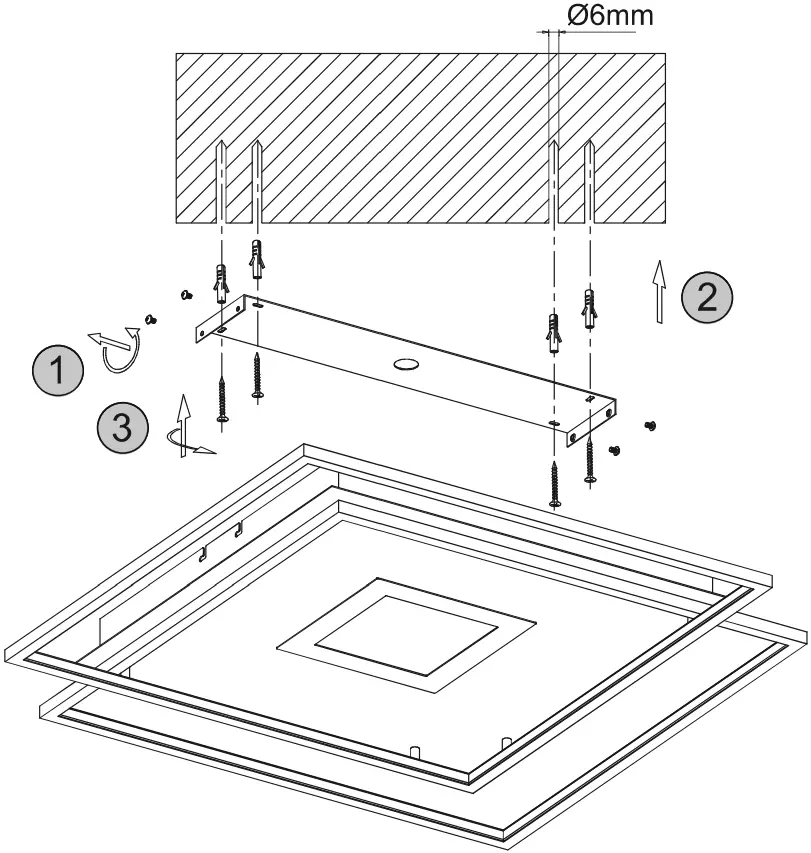

1| fitting

as ceiling lamp

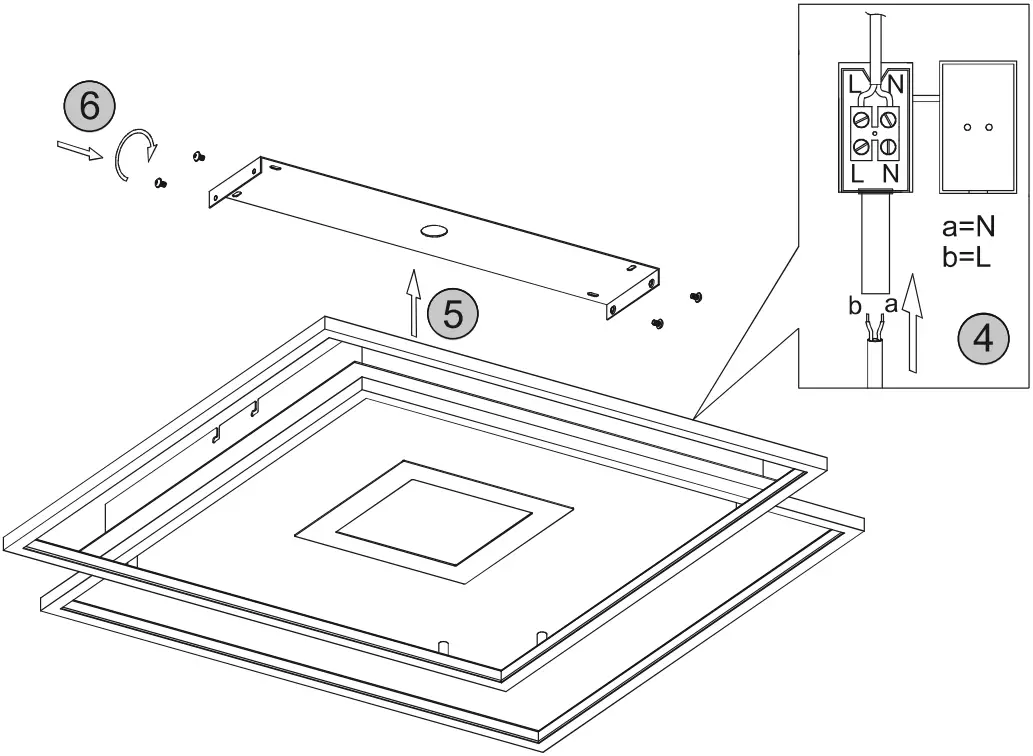

2| electrical connection

230 Voltage / 50Hz connection

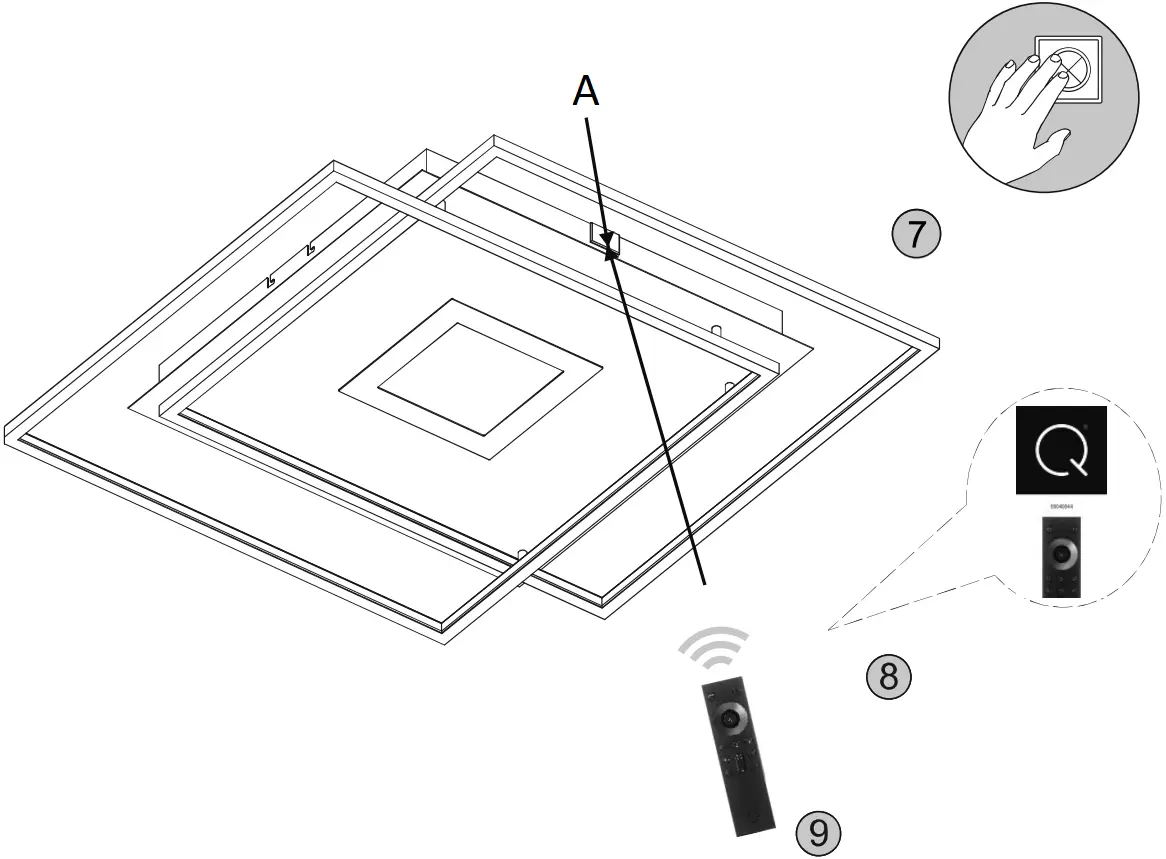

3| teach remote control

See Q-remote control manual

A Q-receiver
7 Switch on the lamp
8 Read instruction manual
9 Teach Q-remote control

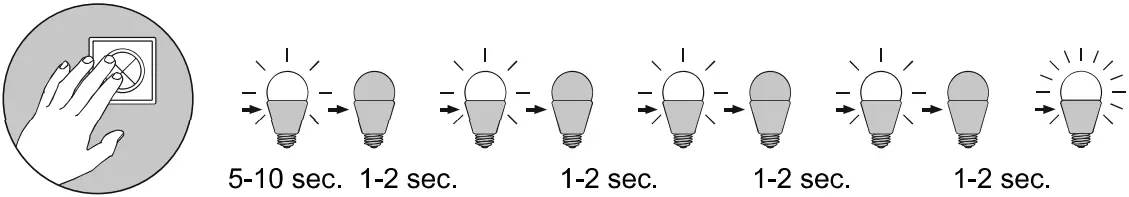

Reset

Reset the lamp, factory new

5 x on/off

This device fulfils the fundamental requirements of Directive 2014/53/EU (Radio Equipment Directive) of the European Parliament and of the Council of the European Union dated 16.04.2014 on items of radio equipment.

The full declaration of conformity can be accessed at the internet-address given below.

Paul Neuhaus GmbH
Olakenweg 36 • D-59457 Werl
Germany

Telefon: +49 (0) 2922-9721-0
Telefax: +49 (0) 2922-9721-9120
E-Mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
