8180 Q-Linea Ceiling Light
Instruction Manual
8180 Q-Linea Ceiling Light
This product contains light sources of energy efficiency class <E >.
This product contains light sources of energy efficiency class <F >.
832135
230V/50Hz∼
2x LED-Board 24V DC / 3W
2x LED-Board 24V DC / 10W
nicht wechselbar / not changeable
2,4 GHz 10 dBm
 |  |
| LED | 3 W/ 10 W 360 I’m |
 | 31 W 1.500 I’m |
 | LED-Board |
| t | 25.000 h |
| Tk | 2.700 – 5.000 K |
 | 15.000 x |
 | <0,5 s |
 | dimmable with rrc |

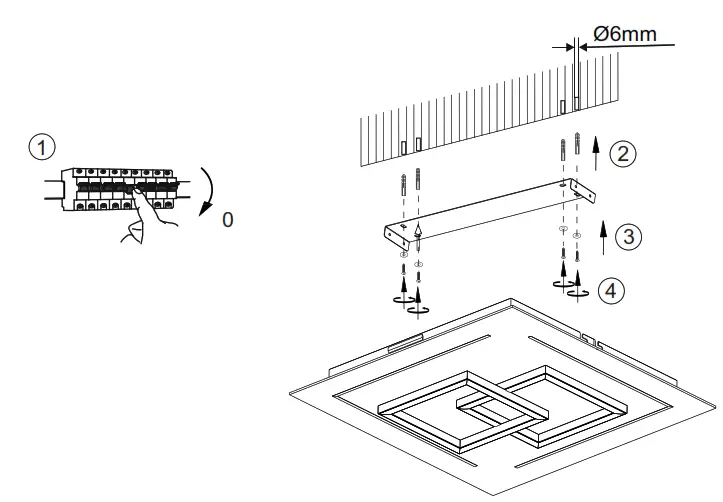

fitting
as ceiling light

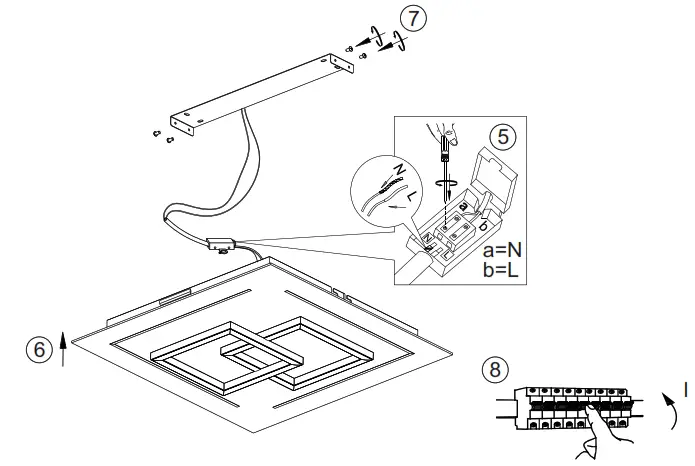

electrical connection
230 voltage / 50Hz connection

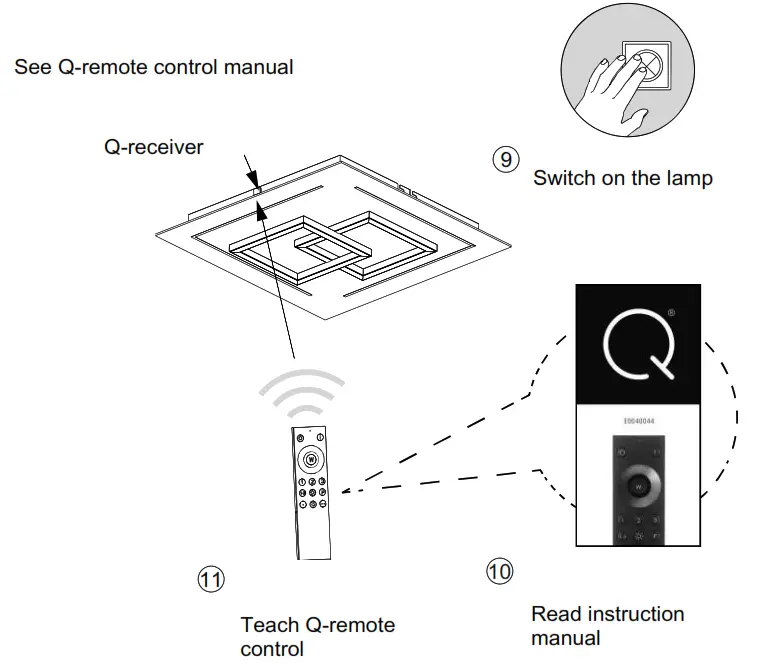

teach remote control

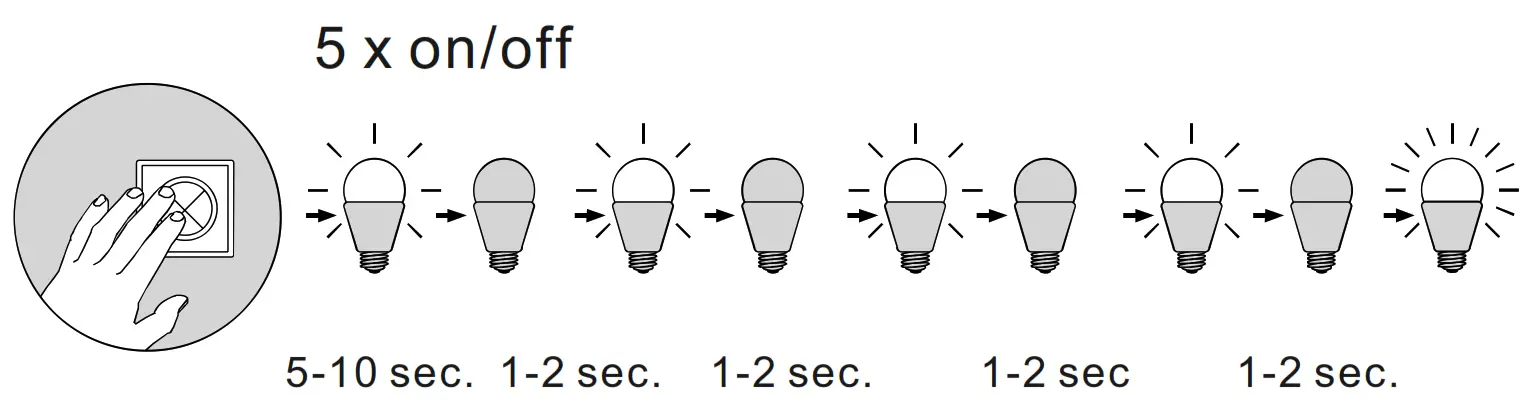

Reset
Reset the lamp factory’s new
Paul Neuhaus GmbH
Olakenweg 36 • 59457 Well
Germany
Telefon: +49 (0)2922-9721-0
Telefax: +49 (0)2922-9721-9120
E-mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
